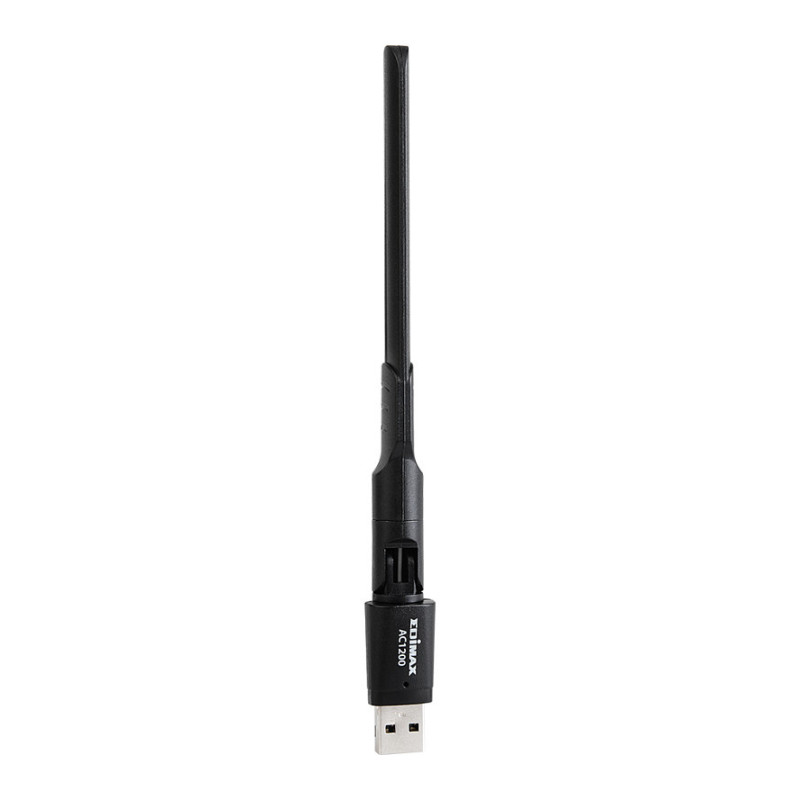

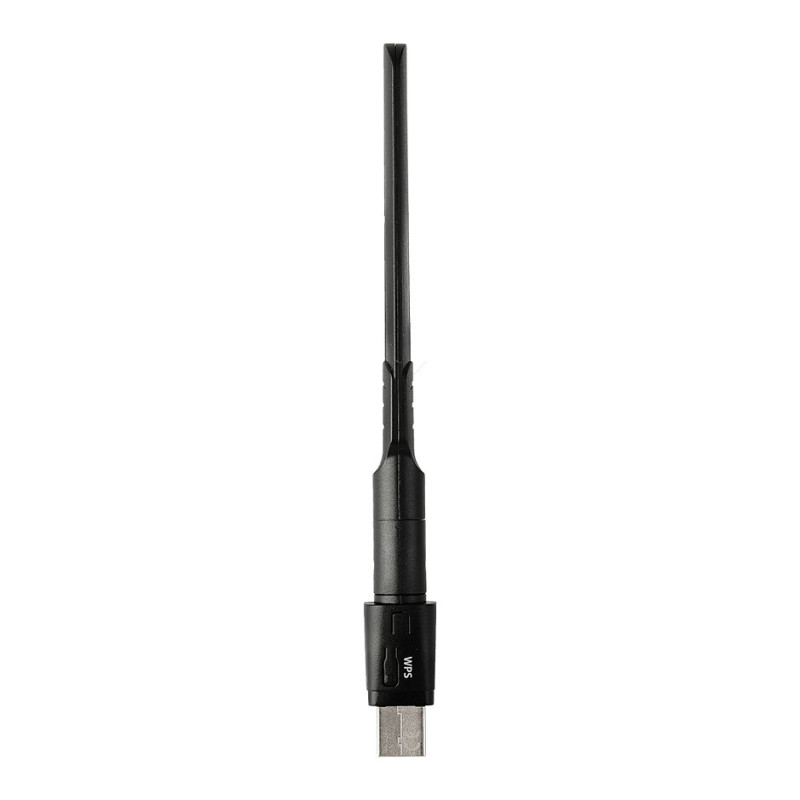

Edimax EW-7822UAD network card

Edimax EW-7822UAD. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black

802.11ac | Super Speed
The EW-7822UAD runs ultra-speed 802.11ac Wi-Fi that's almost three times faster than 802.11n. Upgrade your laptop or PC to 802.11ac Wi-Fi so you can enjoy online video streaming and multiple data transfers at the fastest speeds. The EW-7822UAD is certainly a powerful and easy-to-use gadget for upgrading your existing wireless network to the next AC level.

USB 3.0 Port | Faster than Ever
USB 3.0 is up to 10 times faster than USB 2.0 with data transfer rates up to 5Gbps. It's the latest standard in connectivity and enables devices to achieve the superfast speeds which 802.11ac can provide - for faster photos, music, videos, and data.

Dual Mode | Double your Fun
Experience better performance and greater flexibility with EW-7822UAD for your laptop with dual-band connectivity. Either the 2.4GHz or 5GHz frequency band can be selected with top speeds at 300Mbps and 867Mbps respectively. Surf the internet and check emails on the longer-range 2.4GHz band, or use the high-speed 5GHz band for online gaming and YouTube or Netflix HD streaming.

11ac MU-MIMO | Enjoy Non-Stop
No more wait time at highest throughput. The latest 11ac MU-MIMO (Multiple User - Multiple Input Multiple Output) technology runs four streams and serve multiple devices simultaneously, for the fastest speeds and uninterrupted Wi-Fi connectivity to all devices.

MU-MIMO | More Streams
Instantly upgrades your older laptop or PC to the latest 11ac MU-MIMO functionality. Everyone in the room can enjoy smooth surfing, streaming and gaming at the same time when the EW-7822UAD is successfully paired with a MU-MIMO router.

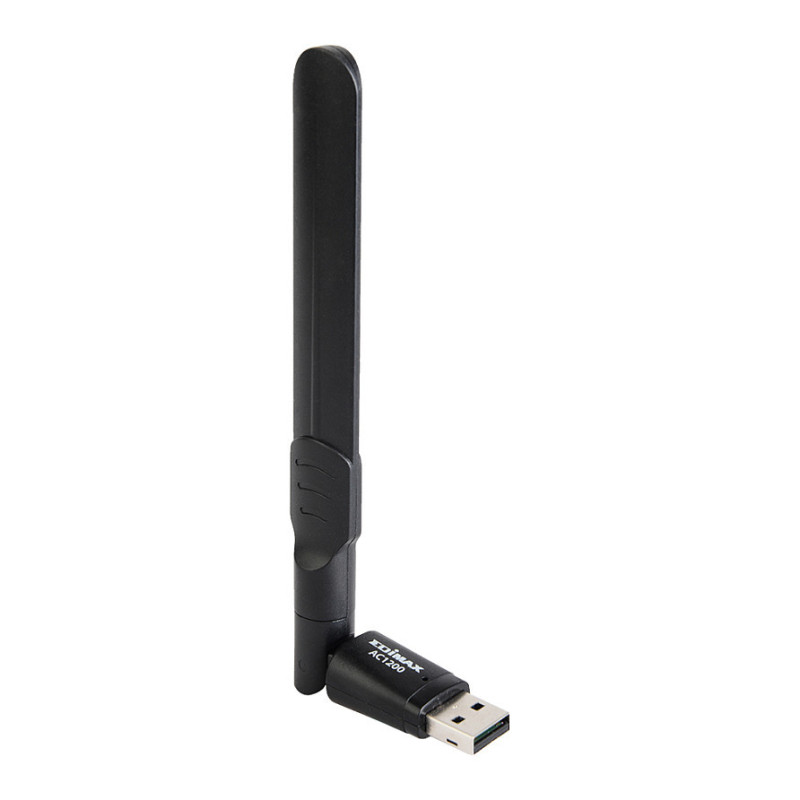

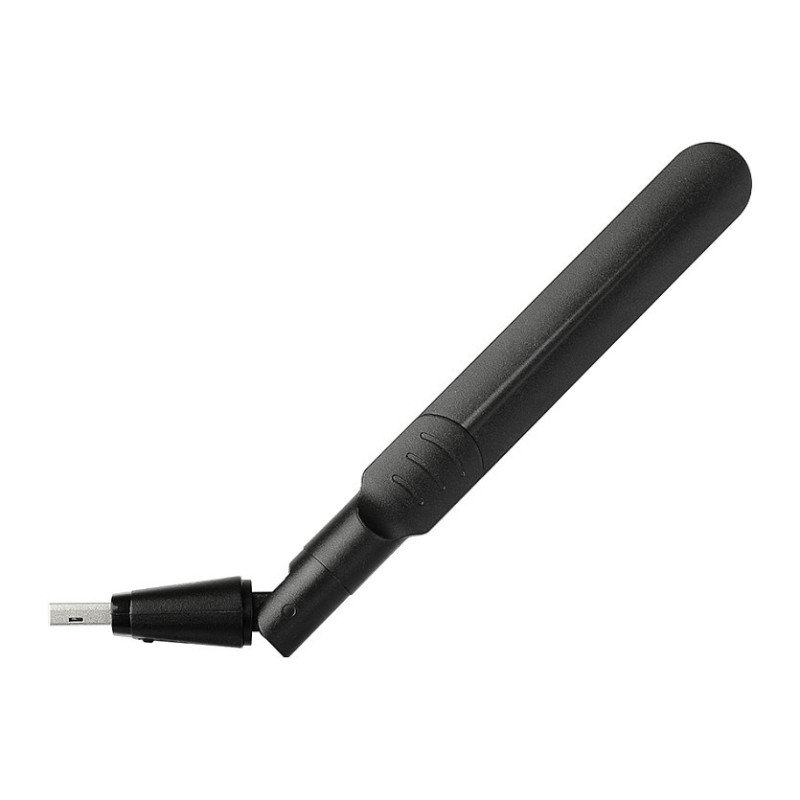

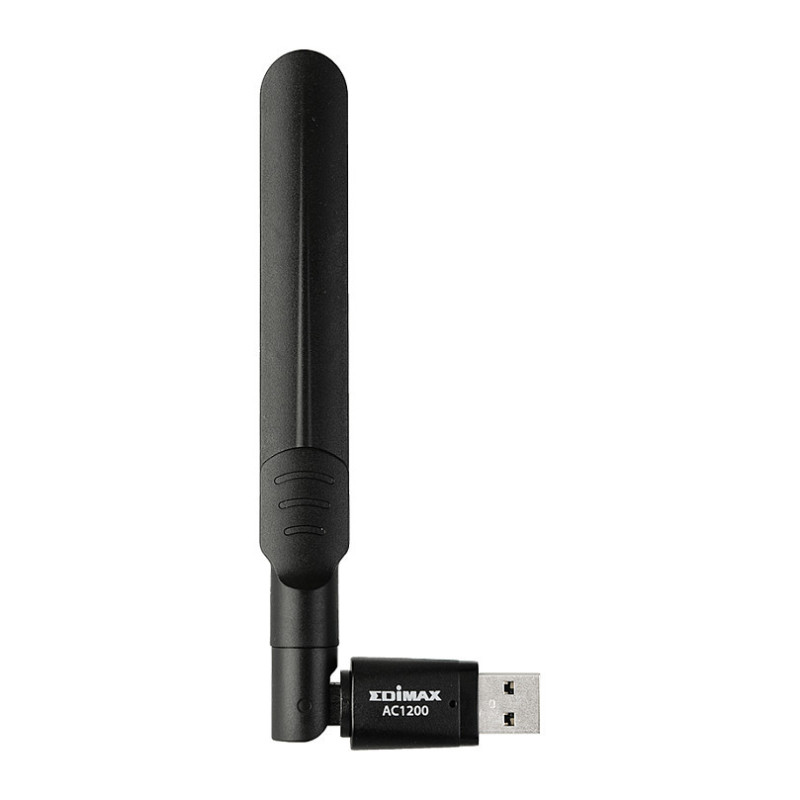

Adjustable Antenna | Optimize Your Wi-Fi
Need to stretch your Wi-Fi signal? You can adjust the antenna of the EW-7822UAD perpendicularly or horizontally to spread out Wi-Fi at wish. It can be plugged into any laptop or comouter for more mobility and convenience, and looks great.

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 867 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11n
Wi-Fi: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported: 1,2,5.5,6,9,11,12,24,36,48,54,144,300,867 Mbit/s
Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2, WPS

Design

Product colour: Black
Internal: No
Antenna: Yes
Antenna design: External
Receiver sensitivity: 2.4GHz: 11b(11M): -80±2dBm, 11g(54M): -68±2dBm, 11n(20MHz, MCS7): -66±2dBm, 11n(40MHz, MCS7): -65±2dBm 5GHz: 11a(54M): -68±2dBm, 11n(20MHz, MCS7): -65±2dBm, 11n(40MHz, MCS7): -62±2dBm, 11ac(80MHz, VHTMCS9): -52±2dBm
Certification: CEFCCNCCBSMI

System requirements

Windows operating systems supported: Windows 10
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 18 mm
Depth: 174.5 mm
Height: 14.4 mm
Weight: 15 g

Logistics data

Harmonized System (HS) code: 85176990
