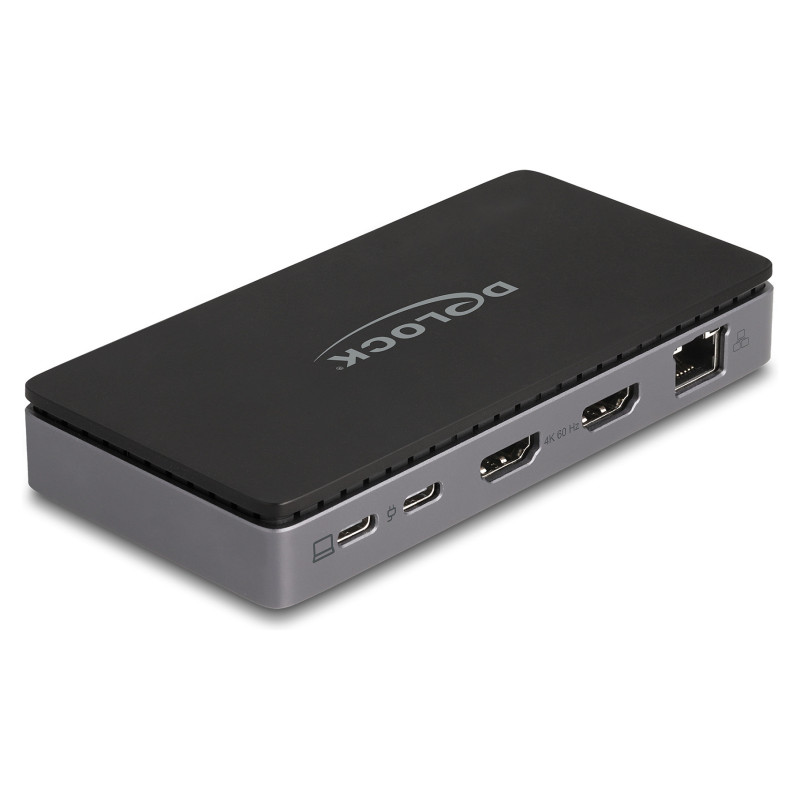

„DeLOCK 88271“ nešiojamojo kompiuterio dokas / prievadų replikatorius

DeLOCK USB Type-C Docking Station 4K - Dual HDMI MST / USB / Gibabit LAN / PD 3.0 85 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, USB cable length: 1 m. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 14.0 Sonoma, Linux operating systems supported: Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux...

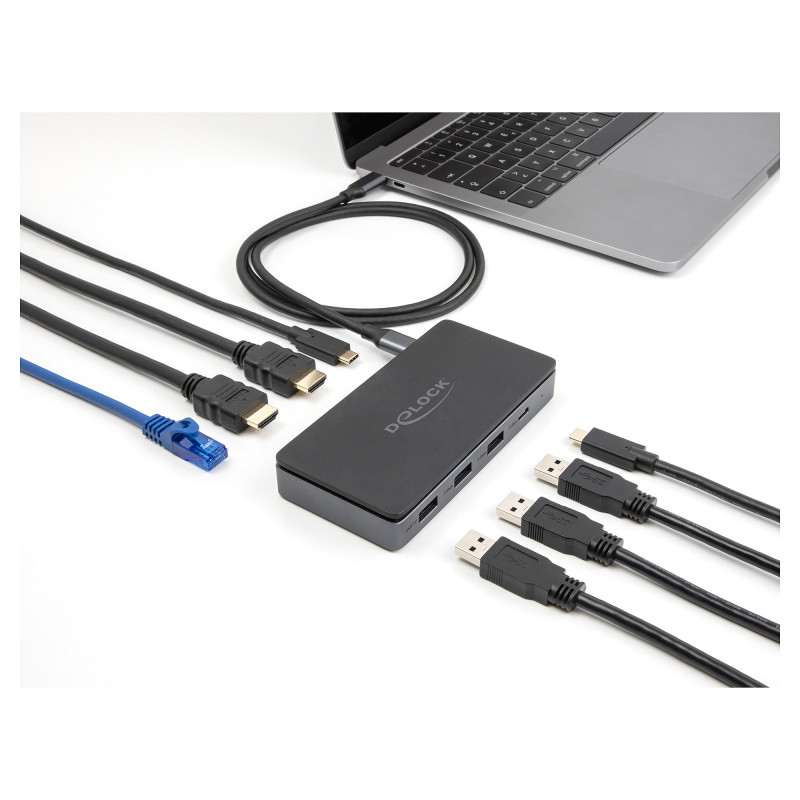

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 or Thunderbolt™ 4 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Three built-in USB Type-A and one USB-C™ port allow the use of peripherals.

Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.

Integrated 10/100/1000 Mbps LAN interface
In addition, the docking station with integrated RJ45 Gigabit LAN connection expands a PC or laptop by a network interface.

USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 85 watts during operation.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 85 W
HDMI ports quantity: 2
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Black, Grey
Feature: High Dynamic Range (HDR) supported
Display modes: Extended, Mirror
LED indicators: Yes
Feature: Plug and Play
Feature: Charging function
Housing material: Metal, Plastic
Country of origin: China

Power

Power source type: USB
Power connector: USB Type-C

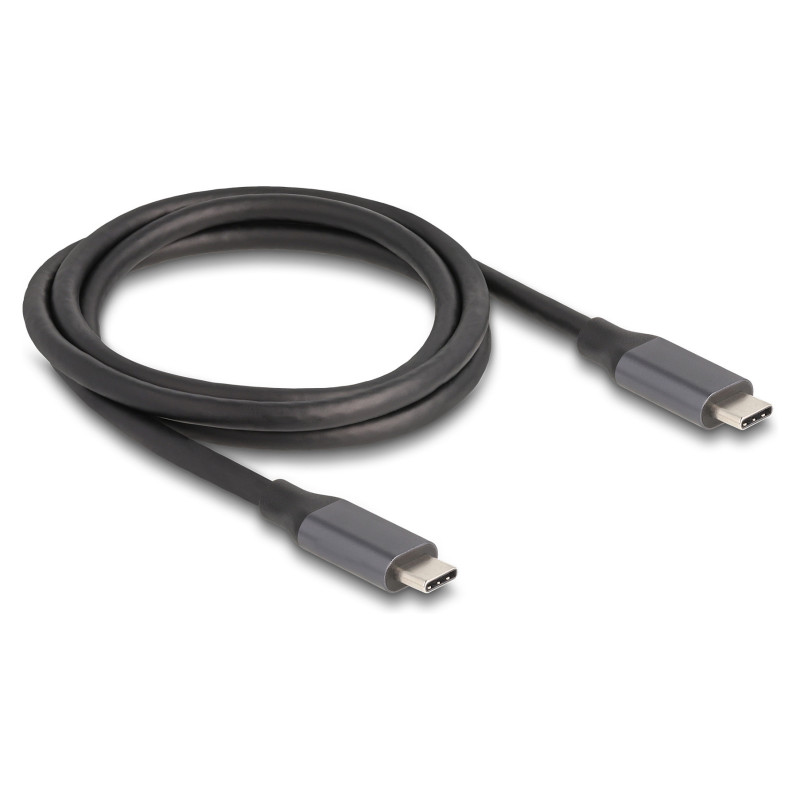

USB cable length: 1 m

Software

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 14.0 Sonoma
Linux operating systems supported: Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Mobile operating systems supported: Android 13.0
Other operating systems supported: ChromeOS, iPadOS

Weight & dimensions

Width: 62 mm
Depth: 125 mm
Height: 19 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE
