„DeLOCK 88051“ nešiojamojo kompiuterio dokas / prievadų replikatorius

DeLOCK USB Type-C Triple Display Docking Station with DisplayLink 4K / USB Hub / LAN / SD / Audio / PD 96 W. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode, Thunderbolt™ 3 or Thunderbolt™ 4 and provides a variety of interfaces. Three monitors can be operated at the monitor outputs at the same time. Five built-in USB ports allow the use of peripherals and another USB port can be used to charge mobile devices. Connectors for a microphone and speaker, a Gigabit network connection, as well as a card reader for SD memory cards complete the features.

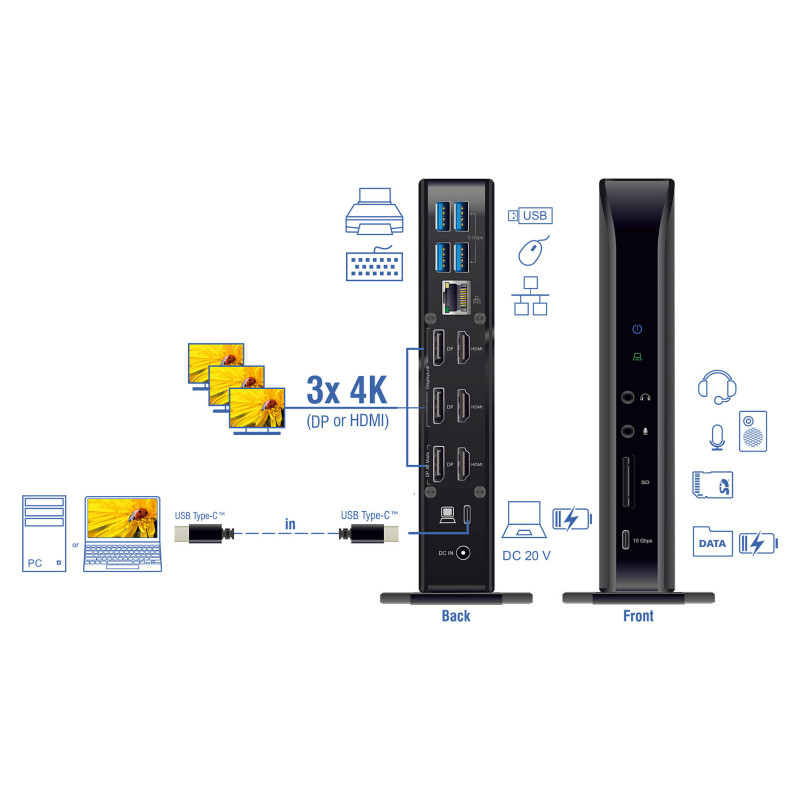

Triple Display 4K UHD resolution
When using the three video outputs at the same time, one monitor is operated via DisplayPort Alternate Mode, the other two via DisplayLink®. One port can be used from each double group of DisplayPort and HDMI connector. The Delock docking station can also be operated on devices without a USB Type-C™ port with DP Alt Mode support, with a video output on a maximum of two monitors.
A maximum resolution of 4K on all ports can be guaranteed, regardless of the operating system. Due to the DisplayLink® graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.

USB Power Delivery (USB PD 3.0) support up to 96 watt
Via the power supply, which is connected to the docking station, the host device is charged with up to 96 watts during operation.

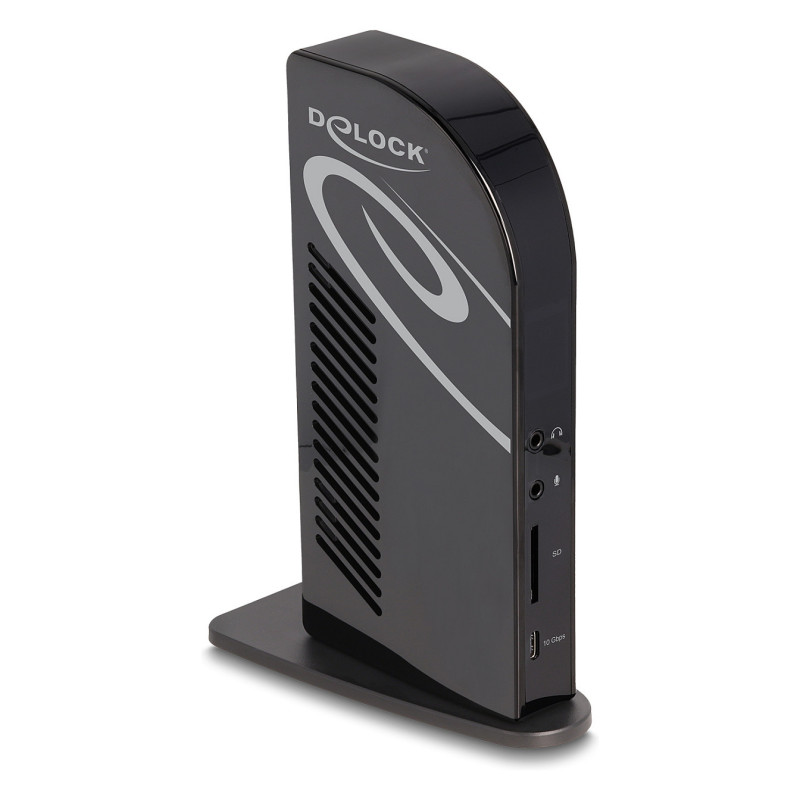

Stand
Due to the vertical installation, the Delock docking station takes up less space on the desk.

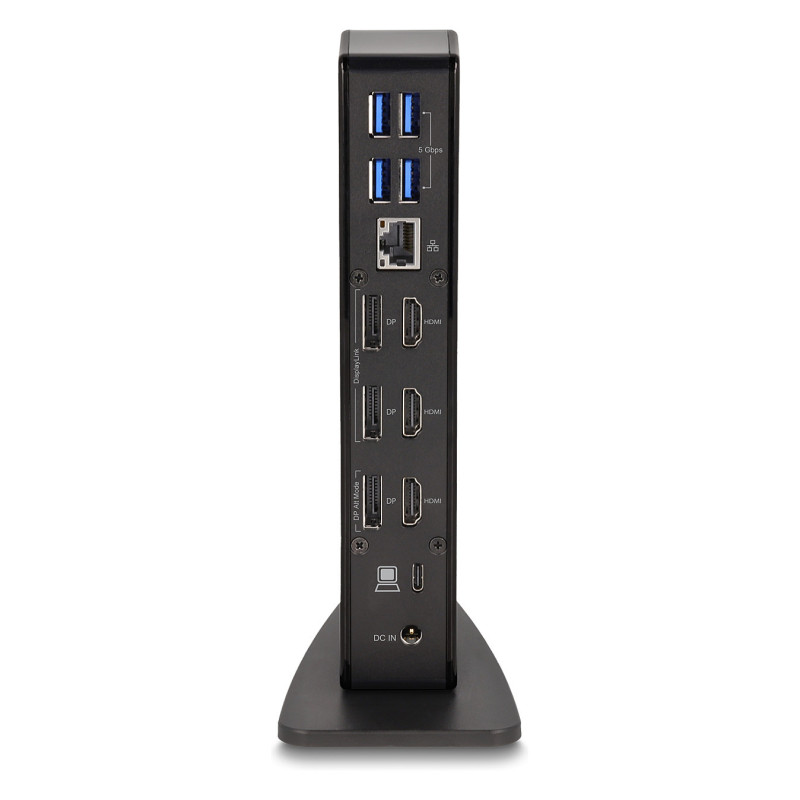

Ports & interfaces

Connectivity technology: Docking
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 96 W
HDMI ports quantity: 3
DisplayPorts quantity: 3
Feature: Microphone in
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Compatible memory cards: SD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Product colour: Black
Display modes: Extended, Mirror
LED indicators: Yes
Feature: Plug and Play
Feature: Charging function
Country of origin: China
Brand compatibility: Any brand

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2.37 A
Power supply: 135 W
Output voltage: 20 V
Output current: 6.75 A
Power cable length: 1.8 m
USB cable length: 1 m

Software

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma

Weight & dimensions

Width: 94 mm
Depth: 195 mm
Height: 35 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Cables included: Power, USB Type-A to Micro-USB Type-B, USB Type-C to Micro-USB Type-B
Feature: Manual
