„DeLOCK 87772“ nešiojamojo kompiuterio dokas / prievadų replikatorius

DeLOCK USB Type-C DP 1.4 Docking Station Triple 4K Display - HDMI / DisplayPort / USB / LAN / SD / PD 3.0. Connectivity technology: Wired, Host interface: Thunderbolt 3, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 8.1, Mobile operating systems supported: Android 9.0

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Up to three monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.

USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

Stand
The Delock docking station can be operated either horizontally or vertically. A stand is included for vertical operation.

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
HDMI ports quantity: 1
DisplayPorts quantity: 2
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Product colour: Grey

Power

Power source type: AC
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Input current: 0.8 A
Output voltage: 12 V
Output current: 2 A

Software

Windows operating systems supported: Windows 10, Windows 8.1
Mac operating systems supported: Yes
Mobile operating systems supported: Android 9.0

Weight & dimensions

Width: 77 mm
Depth: 780 mm
Height: 18 mm

Packaging data

Quantity per pack: 1 pc(s)

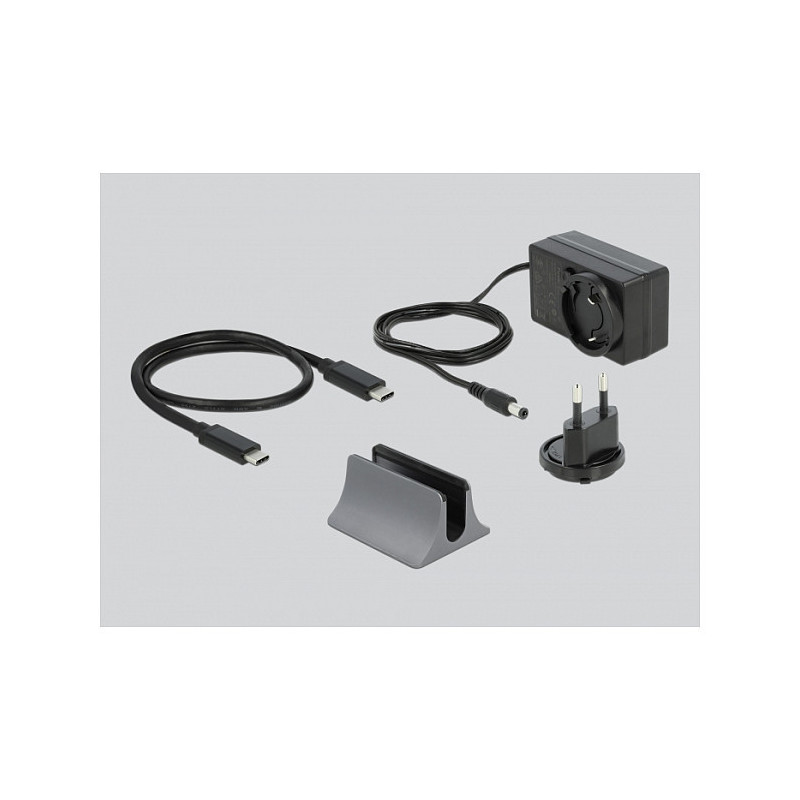

Packaging content

Cables included: USB Type-C to USB Type-C
Feature: AC adapter included
Feature: User guide

Logistics data

Harmonized System (HS) code: 84733020
