„DeLOCK 87752“ nešiojamojo kompiuterio dokas / prievadų replikatorius

DeLOCK Docking Station Dual USB Type-C with HDMI / USB 3.2 / SD / PD 3.0. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1, Mac operating systems supported: Mac OS X 10.15 Catalina, Other operating systems supported: Android. Width: 35 mm, Depth: 125 mm, Height: 12 mm

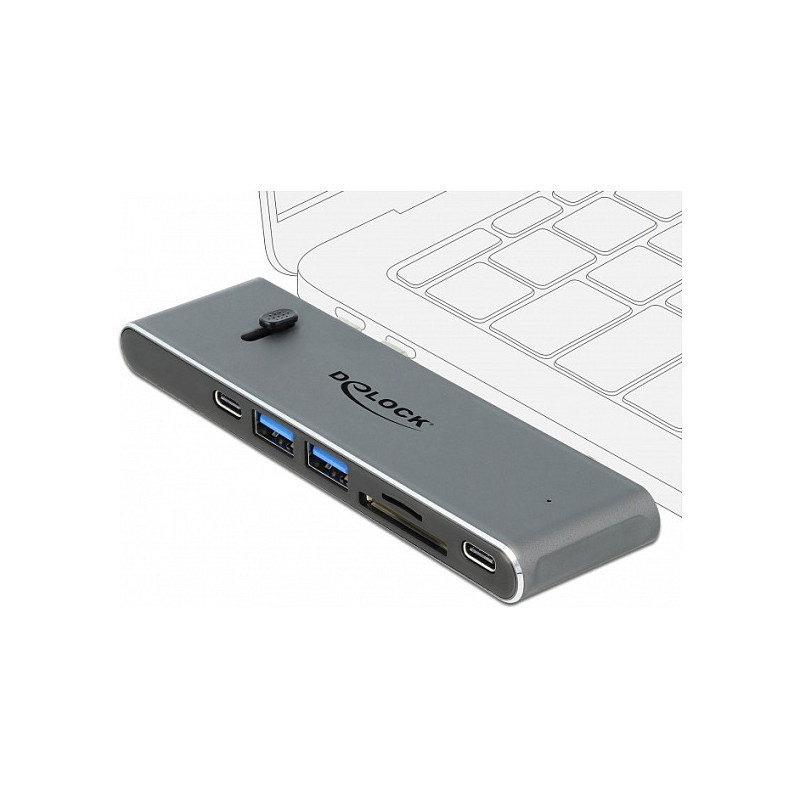

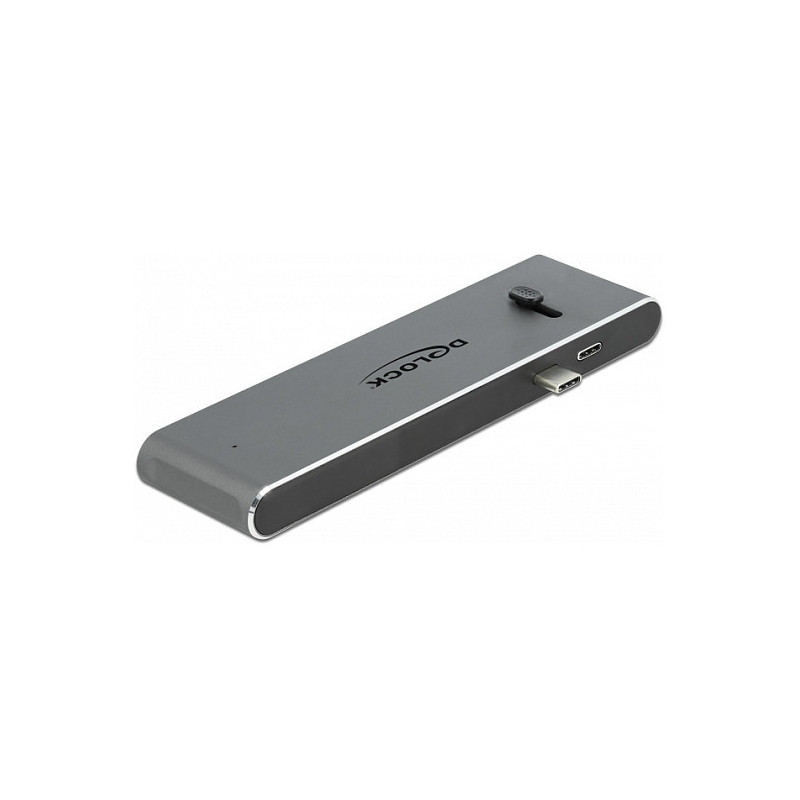

This docking station by Delock can be connected to a MacBook with two adjacent Thunderbolt™ 3 ports, e.g. the MacBook Pro. It is also possible to insert one of the two USB-C™ plugs into the housing, so that the docking station can also be connected to other devices such as a smartphone, tablet or laptop. One monitor with 4K 30 Hz can be operated at the HDMI output port. One built-in USB Type-C™ port and two USB Type-A ports allows the use of peripherals.

USB Type-C™ pass-through

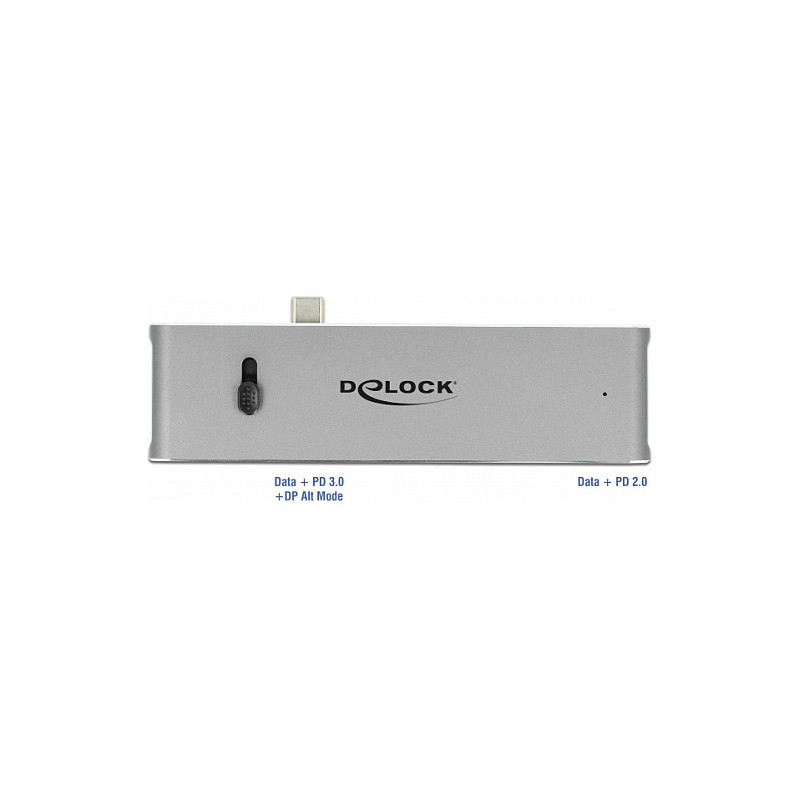

One of the two USB-C™ female ports is coupled to the insertable USB-C™ plug. This means that when it is extended (when used with a MacBook), the USB-C™ female port (pass-through) provides the full function of the USB-C™ interface. This port can transmit data at 10 Gbps, charge the device (PD 3.0), or connect another monitor with a resolution of up to 4K 60 Hz. In addition, as with MST, two additional monitors can be operated independently of each other (extended display).
If the docking station is only operated with one USB Type-C™ port, the USB-C™ (pass-through) female port has no function.

Integrated Card Reader
In addition, the docking station with integrated card reader expands mobile devices by an SD and a Micro SD slot via the USB Type-C™ connection.

USB Power Delivery (USB PD 3.0) support up to 100 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. The docking station can also be used without a power supply.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop and used as needed.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
HDMI ports quantity: 1

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Grey
LED indicators: Yes
Feature: Plug and Play
Housing material: Metal
Country of origin: China

Power

Power source type: USB

Software

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Mac operating systems supported: Mac OS X 10.15 Catalina
Linux operating systems supported: Yes
Other operating systems supported: Android

Weight & dimensions

Width: 35 mm
Depth: 125 mm
Height: 12 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual

Logistics data

Harmonized System (HS) code: 84733020
