„DeLOCK 87728“ nešiojamojo kompiuterio dokas / prievadų replikatorius

DeLOCK USB Docking Station Dual DisplayPort 4K / USB 3.2 / LAN / Audio (Displaylink). Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 3840 x 2160 pixels, Maximum refresh rate: 60 Hz. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 11, Windows 8.1, Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

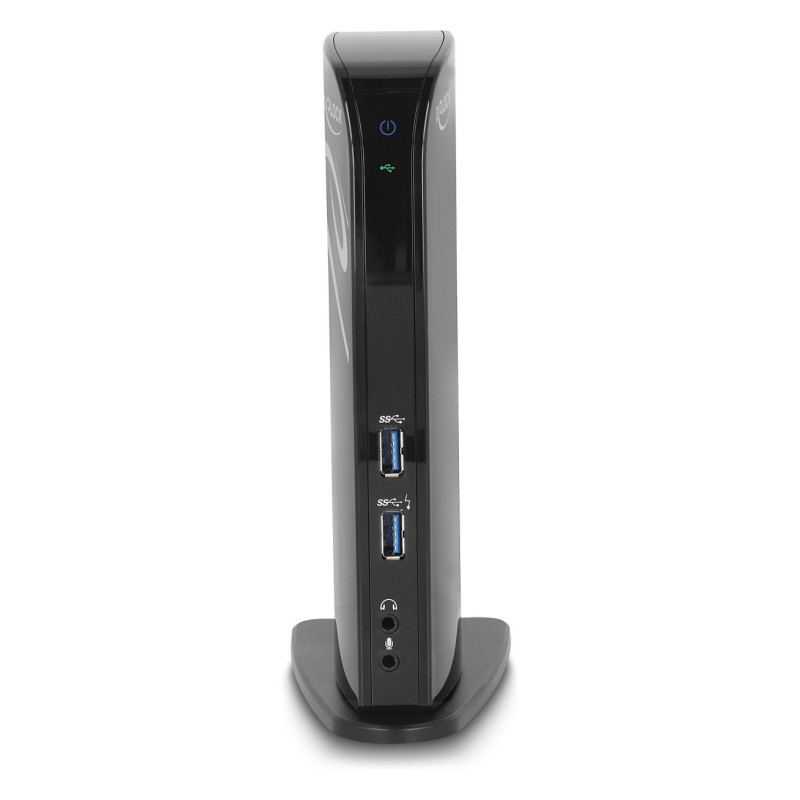

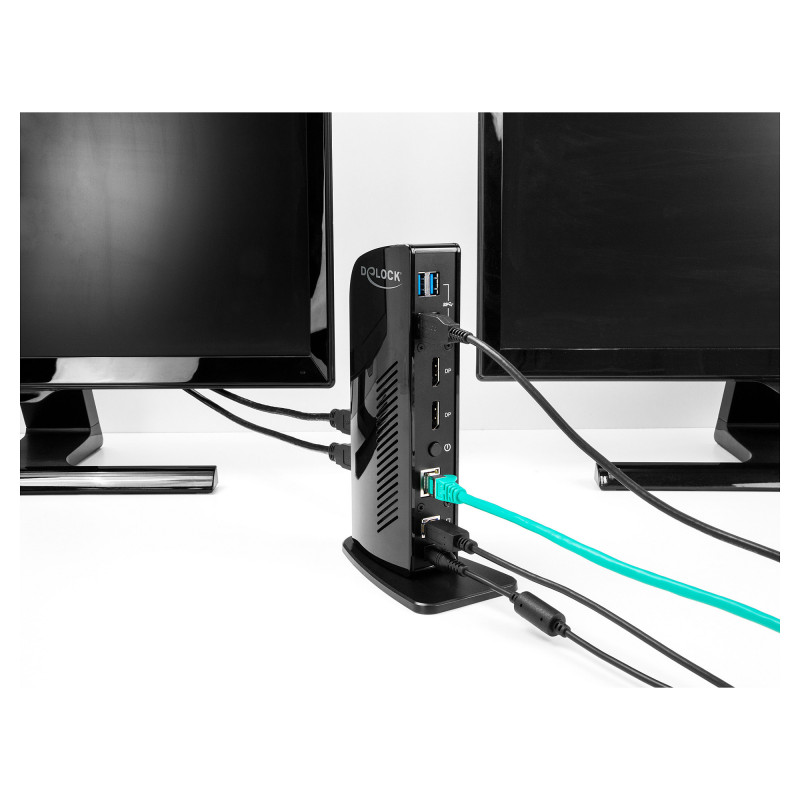

This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the DisplayPort output ports. Six built-in USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.

4K 60 Hz UHD resolution
Ultra-HD (4K) resolution is possible when using only one monitor and also when using both DisplayPort outputs at the same time. There is no DisplayPort Alternate Mode support required.

Extended screen by Displaylink
Due to the Displaylink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.

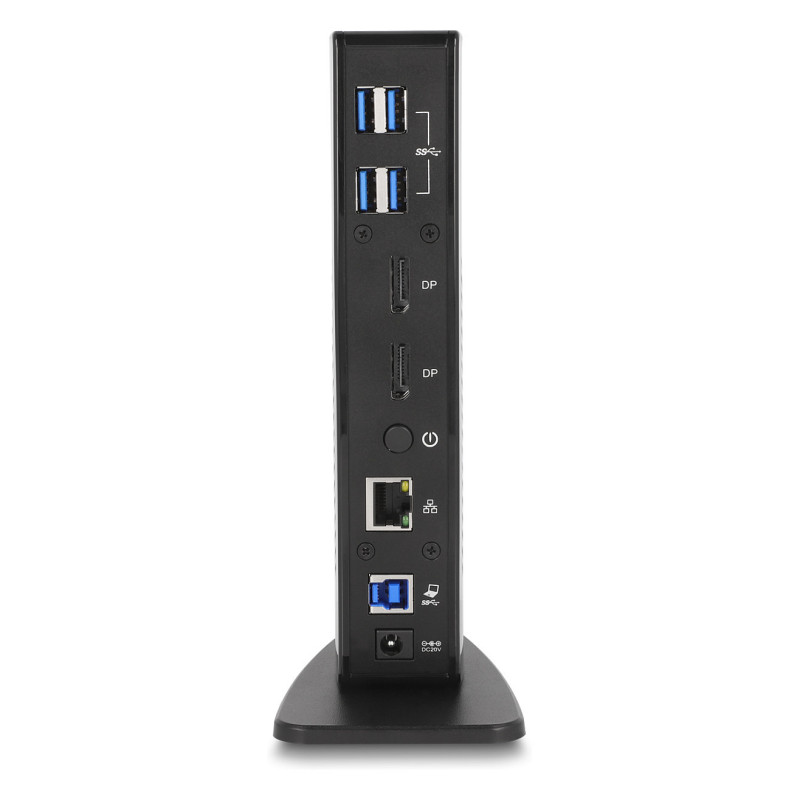

Ports & interfaces

Connectivity technology: Docking
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 1
DisplayPorts quantity: 2
Feature: Microphone in
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Black
Feature: On/off switch
Display modes: Extended, Mirror
LED indicators: Yes
Feature: Plug and Play
Feature: Charging function
Country of origin: China

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1.3 A
Output voltage: 20 V
Output current: 2.25 A
USB cable length: 1 m

Software

Windows operating systems supported: Windows 10, Windows 11, Windows 8.1
Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Weight & dimensions

Width: 78 mm
Depth: 190 mm
Height: 38 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

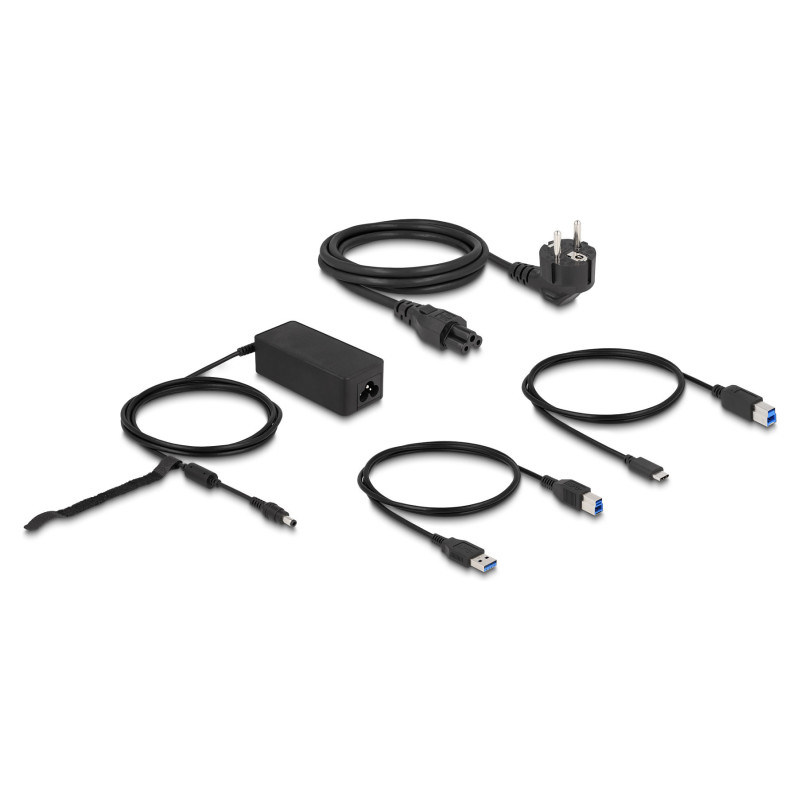

Cables included: Power, USB Type-A to Micro-USB Type-B, USB Type-C to Micro-USB Type-B
Feature: Manual
