„DeLOCK 63410“ sąsajos šakotuvas

DeLOCK 63410. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Data transfer rate: 5000 Mbit/s, Product colour: Blue, Housing material: Metal. Power supply type: DC, Input voltage: 100 - 240 V, Input current: 0.8 A. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 14.0 Sonoma, Linux operating systems supported: Linux Kernel 6.2. Width: 50 mm, Depth: 139 mm, Height: 17 mm

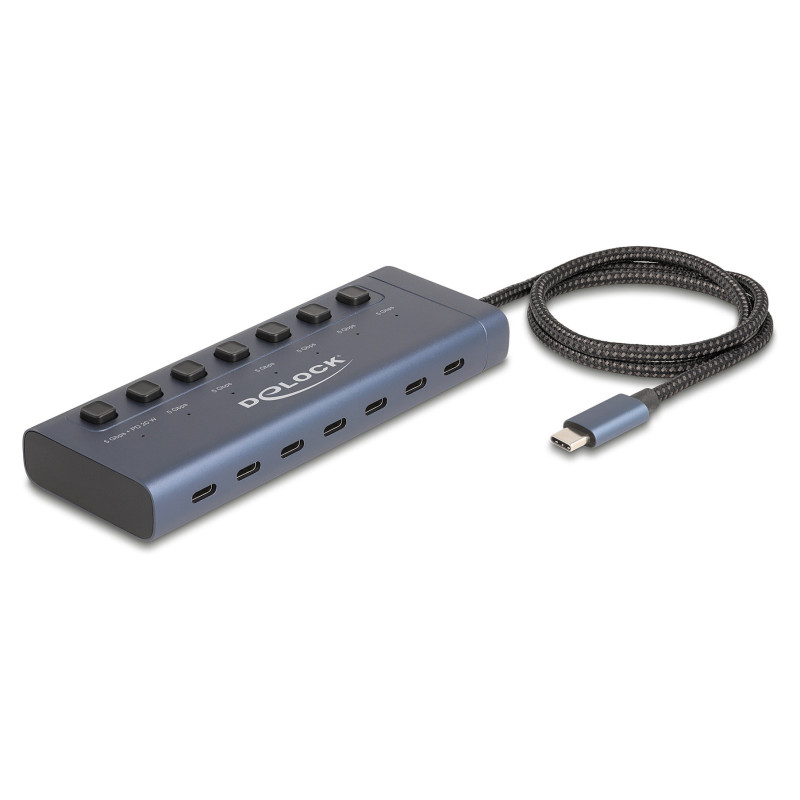

The USB hub by Delock can be connected via USB Type-C™ interface to a PC or laptop. It has seven USB-C™ connectors. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected.

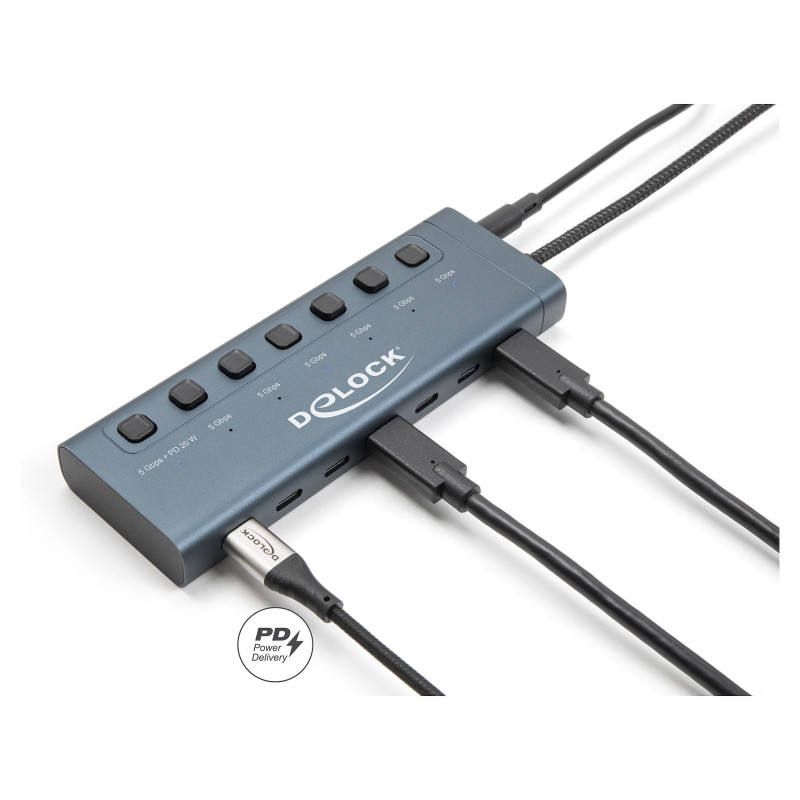

USB-C™ PD 3.0 port
The USB Type-C™ PD port provides up to 20 watts of output power. Connected devices such as smartphones can be charged or data can be transferred at 5 Gbps.

Individual switch
Each port can be turned on or off individually by using the switches.

Note
DisplayPort Alternate Mode (DP Alt Mode) is not supported, so no video signals are transmitted and no monitors can be connected.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 7
Ports quantity: 7
Feature: USB Type-C DisplayPort Alternate Mode
Feature: DC-in jack

Features

Data transfer rate: 5000 Mbit/s
Product colour: Blue
Housing material: Metal
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 20 W
LED indicators: Yes
Cable type: Round cable
Cable length: 0.6 m
Feature: Plug and Play
Country of origin: China

Power

Power supply type: DC
Input voltage: 100 - 240 V
Input current: 0.8 A
AC input frequency: 50 - 60 Hz
Output voltage: 12 V
Output current: 3 A

System requirements

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 14.0 Sonoma
Linux operating systems supported: Linux Kernel 6.2
Other operating systems supported: Android, ChromeOS, iPadOS

Weight & dimensions

Width: 50 mm
Depth: 139 mm
Height: 17 mm

Packaging data

Quantity per pack: 1 pc(s)
Package type: Hanging box

Packaging content

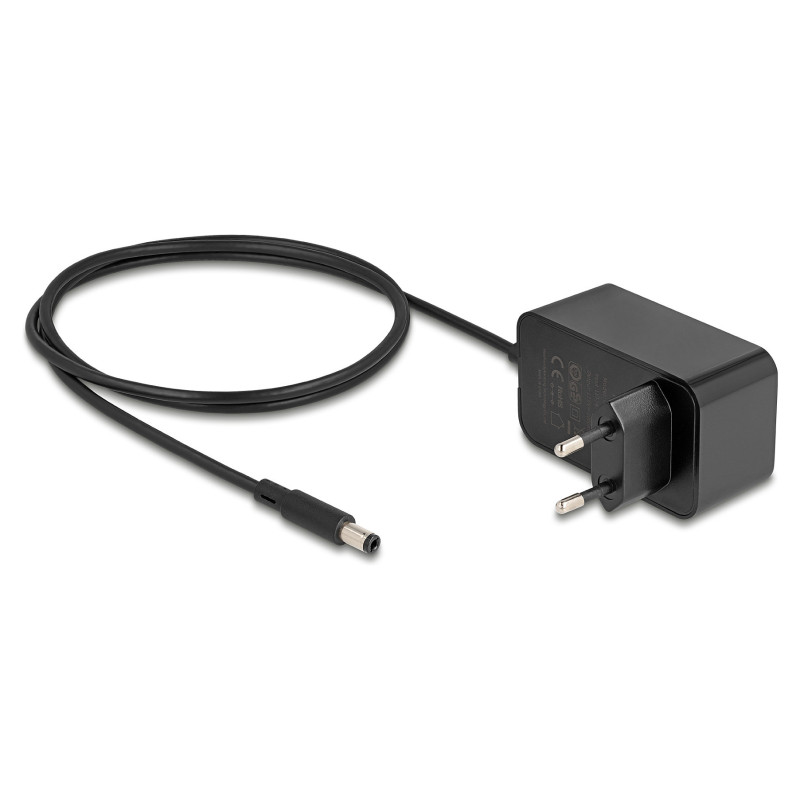

Feature: AC adapter included
Feature: Manual

Technical details

Compliance certificates: CE
