DELL WD22TB4

DELL Thunderbolt™ Dock - WD22TB4. Connectivity technology: Docking, Host interface: Thunderbolt. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels. Power source type: DC, AC input voltage: 120 - 230 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 11, Linux operating systems supported: Ubuntu 20.04 LTS

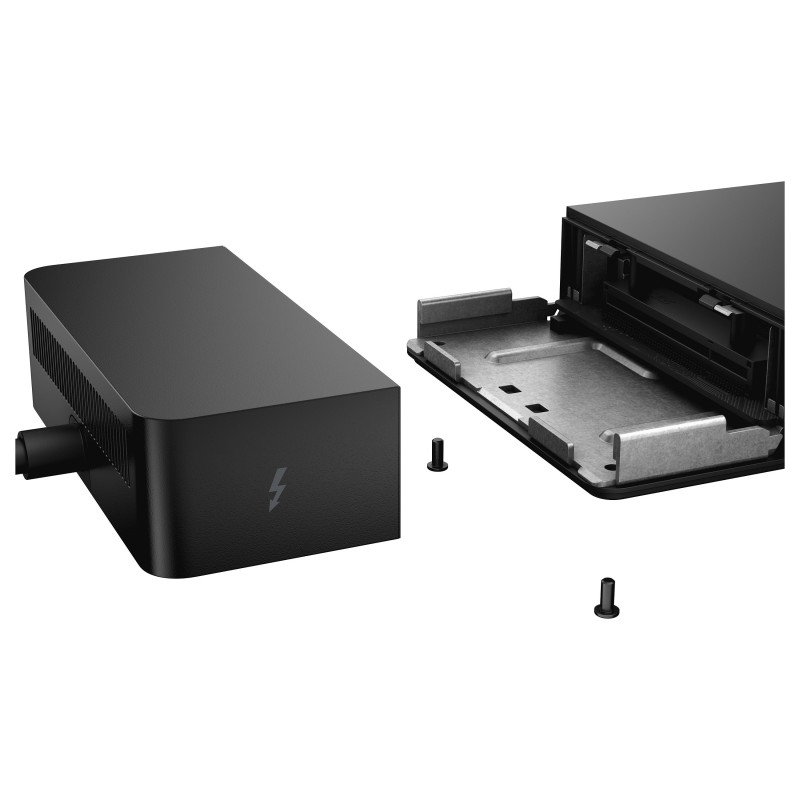

Modular thunderbolt dock with swappable modules for easy upgrades and SuperBoost technologies for fast charging.

Ports & interfaces

Connectivity technology: Docking
Host interface: Thunderbolt
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: PowerShare
Number of USB ports with PowerShare support: 1
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 2
DisplayPort version: 1.4
Thunderbolt 4 ports quantity: 2
Feature: DC-in jack
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Maximum digital resolution: 5120 x 2880 pixels
Product colour: Black
LED indicators: Yes

Power

Power source type: DC
AC input voltage: 120 - 230 V
AC input frequency: 50 - 60 Hz
Power supply: 180 W

Software

Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Ubuntu 20.04 LTS

Weight & dimensions

Width: 205 mm
Depth: 90 mm
Height: 29 mm
Weight: 650 g

Packaging content

Feature: Quick start guide

Logistics data

Harmonized System (HS) code: 84733020
