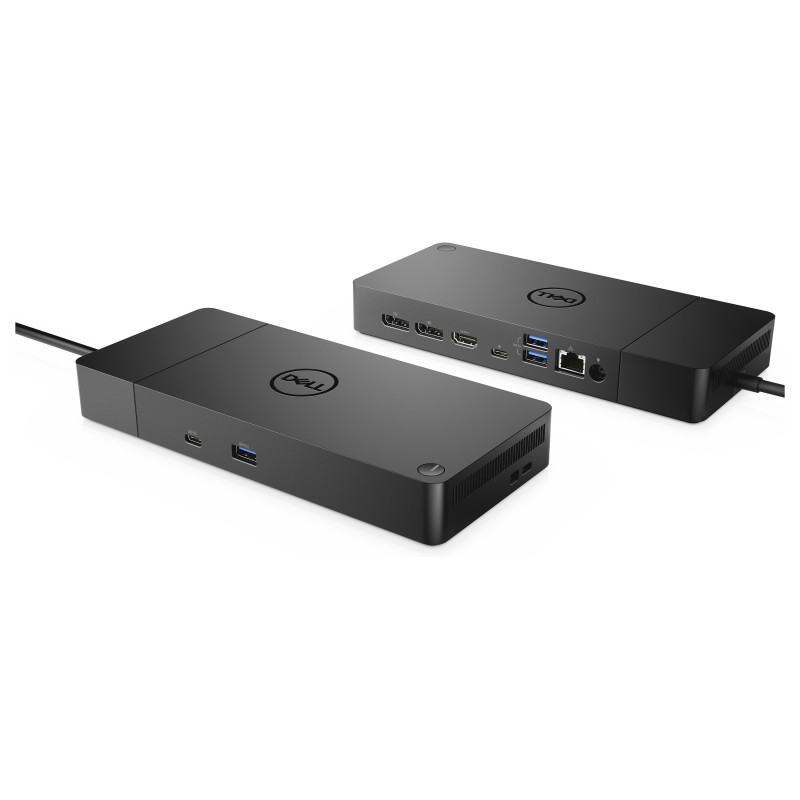

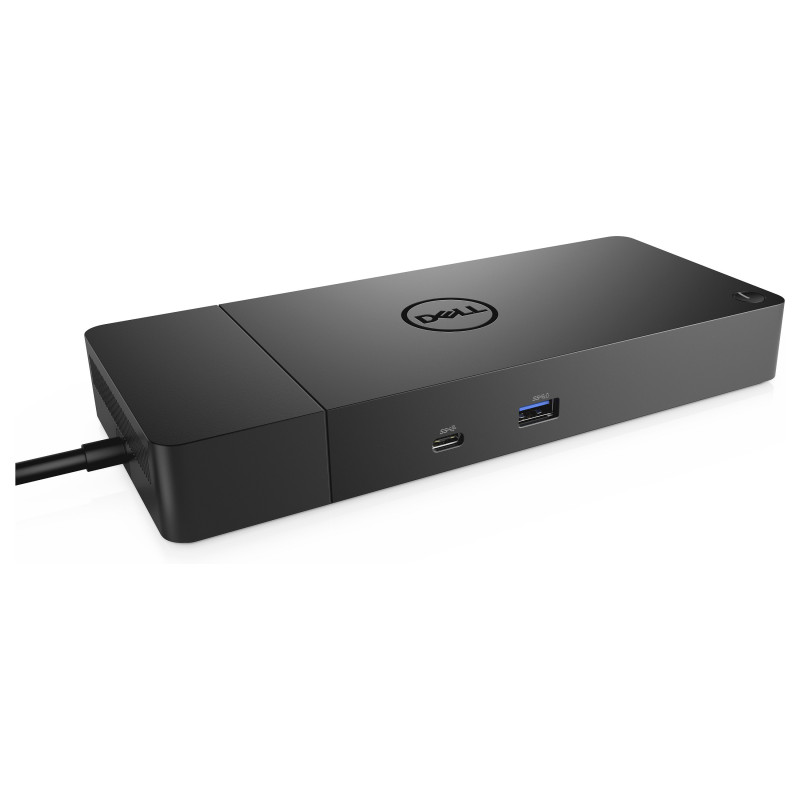

DELL WD19S-180W

DELL Docking Station USB-C EQV to WD19S-180W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels, Compatibility: DELL-WD19S180W. Power source type: DC, AC input voltage: 120 - 230 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10...

Boost your PC's power on the world's most powerful and first modular dock with a future-ready design. WD19S 180W is a simplified version of WD19 180W without 3.5mm ports.

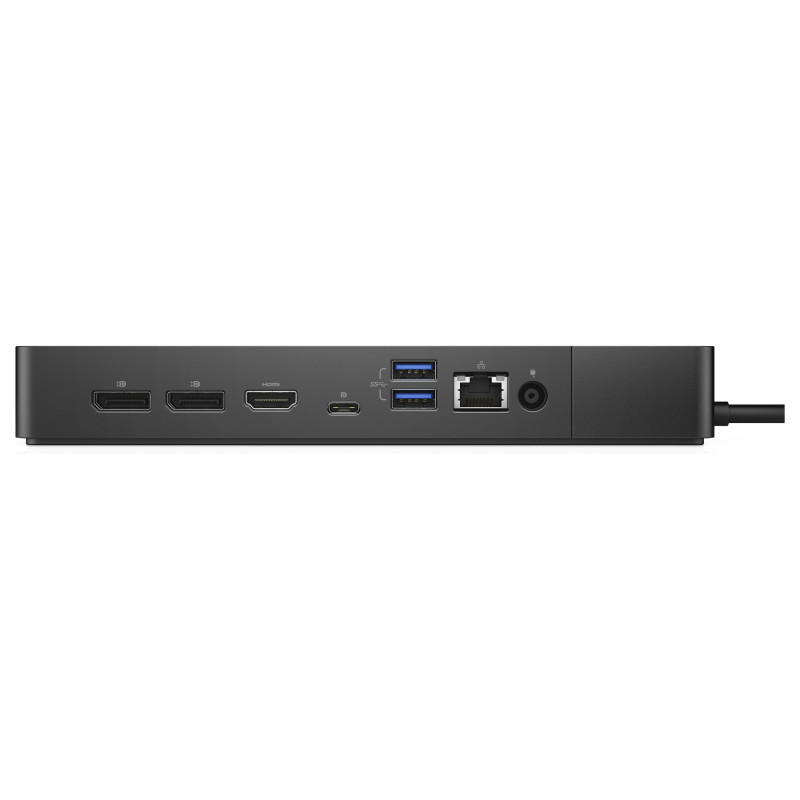

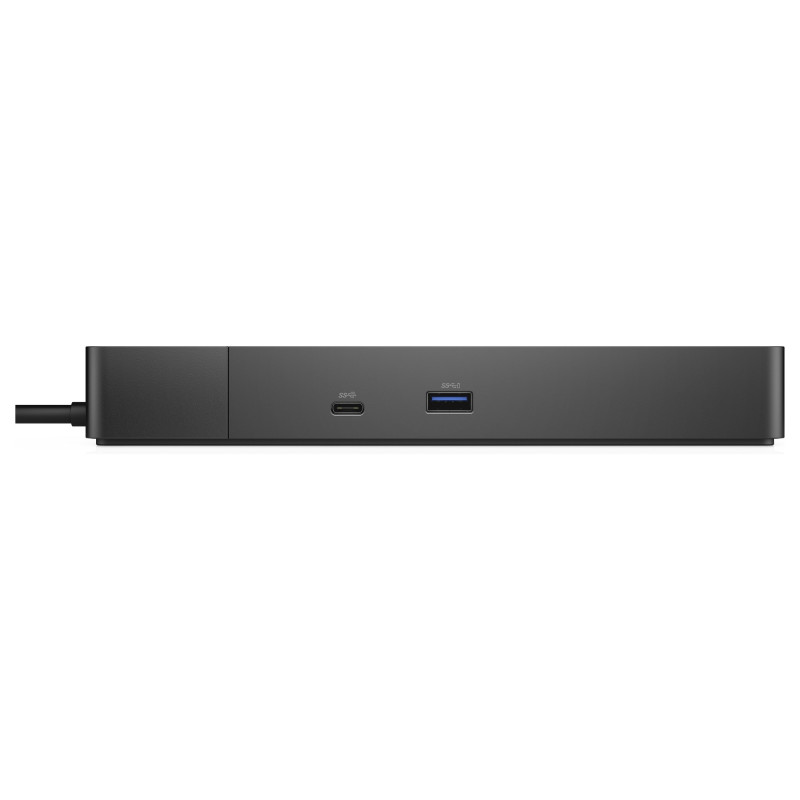

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Maximum digital resolution: 5120 x 2880 pixels
Feature: VESA mounting
Product colour: Black
Feature: On/off switch
LED indicators: Yes
Compatibility: DELL-WD19S180W

Power

Power source type: DC
AC input voltage: 120 - 230 V
AC input frequency: 50 - 60 Hz
Power supply: 180 W
Power cable length: 1 m

Software

Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 205 mm
Depth: 90 mm
Height: 29 mm
Weight: 585 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 300 mm
Package depth: 290 mm
Package height: 62 mm

Carbon footprint

Total carbon footprint (kg of CO2e): 35.74
Carbon emissions, manufacturing (kg of CO2e): 25.6
Carbon emissions, logistics (kg of CO2e): 6.61
Carbon emissions, energy usage (kg of CO2e): 5.95
Carbon emissions, end-of-life (kg of CO2e): -2.42
PAIA version: PAIA/GaBi not used

Logistics data

Harmonized System (HS) code: 84733020
