„Conceptronic DONN32B“ nešiojamojo kompiuterio dokas / prievadų replikatorius

Conceptronic DONN32B 14-in-1 MST Docking Station USB 3.2 Gen 1, HDMI x 2, DP, GbE LAN, USB-A 5Gbps x 3, USB-C 5Gbps x 2, SD, TF/MicroSD, 3.5mm headset, Security Slot, 100W USB PD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab. Product colour: Grey, Silver, Compatible memory cards: MicroSD (TransFlash), HD type: 4K Ultra HD. Power source type: USB, USB cable length: 0.18 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 5.0, Android 5.1,...

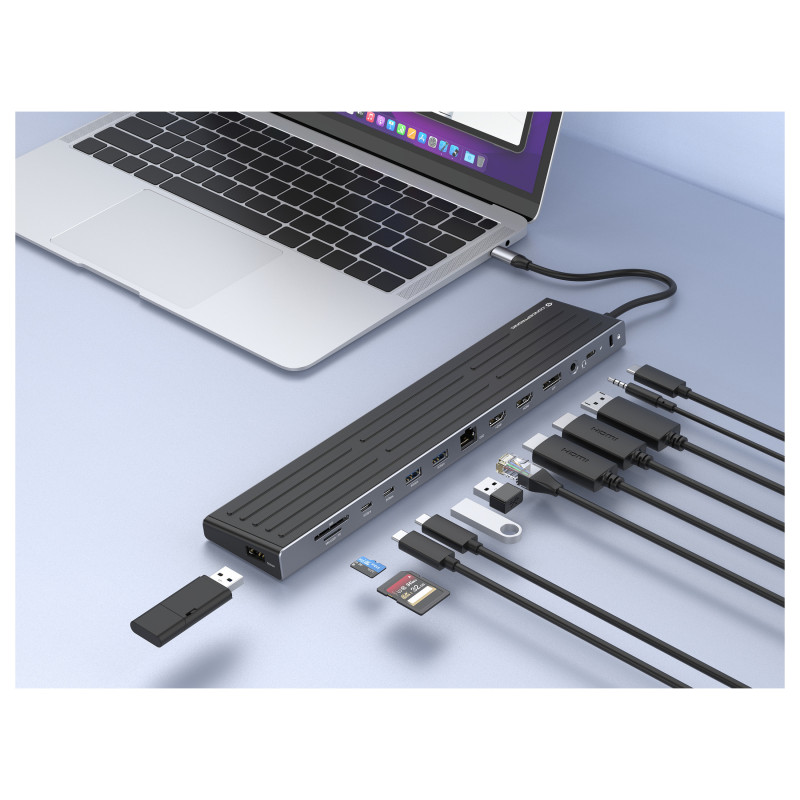

Unlock full workstation potential with this high-performance 14-in-1 docking station. Designed for professionals who demand more, it supports triple extended displays on Windows via HDMI and DisplayPort with crisp 4K@60Hz resolution.

Stay connected and efficient with five high-speed USB ports (2 × USB-C, 3 × USB-A) delivering 5Gbps data transfer, plus SD and TF 3.0 card readers supporting UHS-I speeds up to 104MB/s. A Gigabit Ethernet port ensures reliable 1000Mbps wired connectivity, while a 3.5mm combo audio jack keeps communications clear.

Power your laptop with up to 100W via USB Power Delivery. The robust aluminum design offers excellent heat dissipation and includes a built-in security slot for added protection.

With Plug and Play setup, it's ready to streamline your workspace right out of the box. Whether you're creating, collaborating, or relaxing, this docking station is your all-in-one connectivity solution.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3ab

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Feature: Cable lock slot
Product colour: Grey, Silver
Feature: Plug and Play

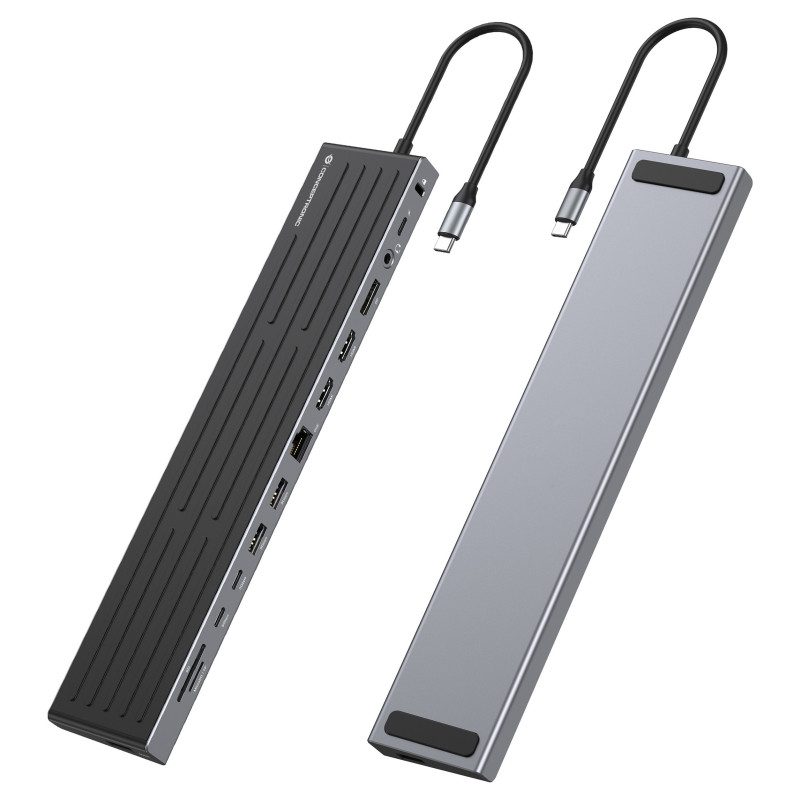

Housing material: Aluminium
Country of origin: China

Power

Power source type: USB
USB cable length: 0.18 m

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Width: 280 mm
Depth: 55 mm
Height: 19 mm
Weight: 220 g

Packaging data

Package width: 325 mm
Package depth: 85 mm
Package height: 25 mm
Package weight: 370 g

Packaging content

Feature: Quick start guide

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 40 pc(s)
Master (outer) case width: 365 mm
Master (outer) case length: 275 mm
Master (outer) case height: 345 mm
Master (outer) case gross weight: 15.8 kg
Customs product code (TARIC): 8471800000
Harmonized System (HS) code: 8471800000
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 187.7 cm

Other features

Master (outer) cases per pallet: 40 pc(s)
