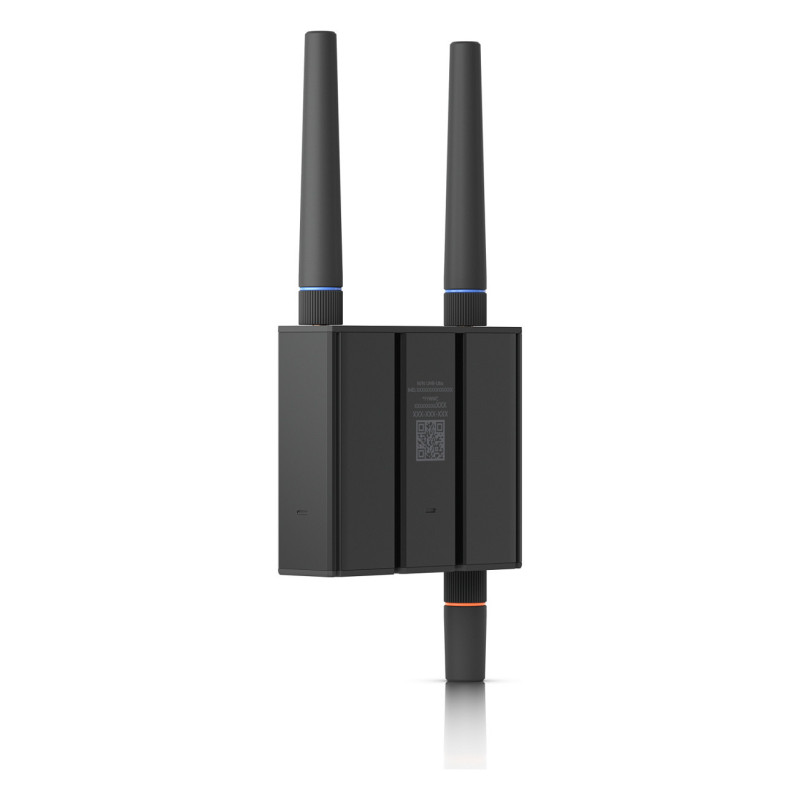

Ubiquiti UMR-Ultra

Ubiquiti UMR-Ultra. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium, Polycarbonate (PC). Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), WLAN data transfer rates supported: 1,2,5.5,6,9,11,12,18,24,36,48,54,150,6.5 Mbit/s, Wi-Fi frequency: 2.4 GHz. Data network: 4G, 4G standard: LTE, SIM card type: NanoSIM. USB port type: USB Type-C

Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.

Design

Device type: Cellular network router
Product colour: Black
Housing material: Aluminium, Polycarbonate (PC)

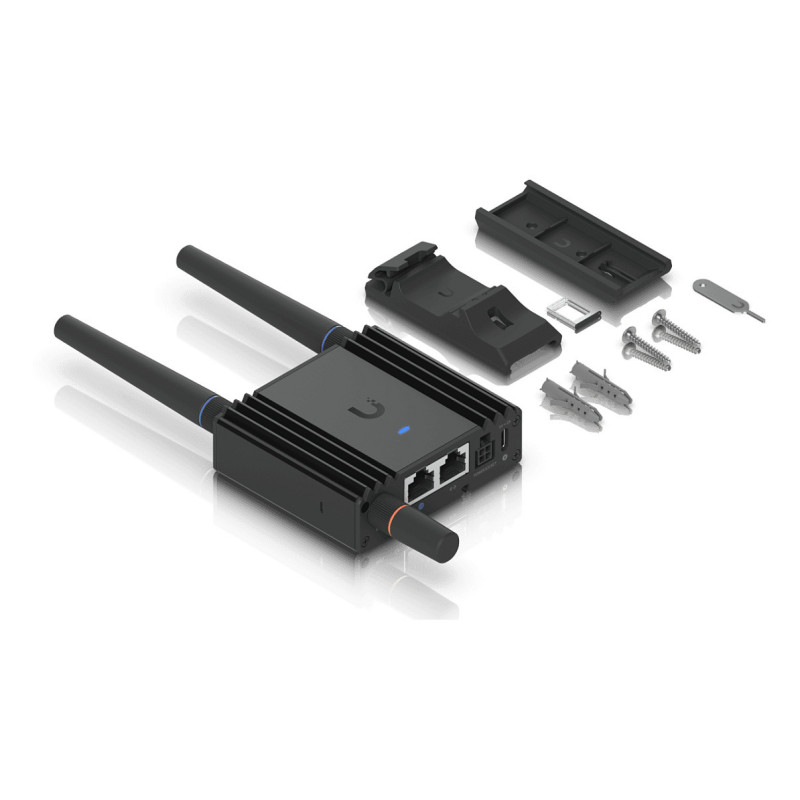

Mounting: DIN-rail/Wall mounting
Feature: Reset button
LED indicators: Status

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 1,2,5.5,6,9,11,12,18,24,36,48,54,150,6.5 Mbit/s
Wi-Fi frequency: 2.4 GHz

Mobile network

Data network: 4G
4G standard: LTE
Number of SIM cards: 1

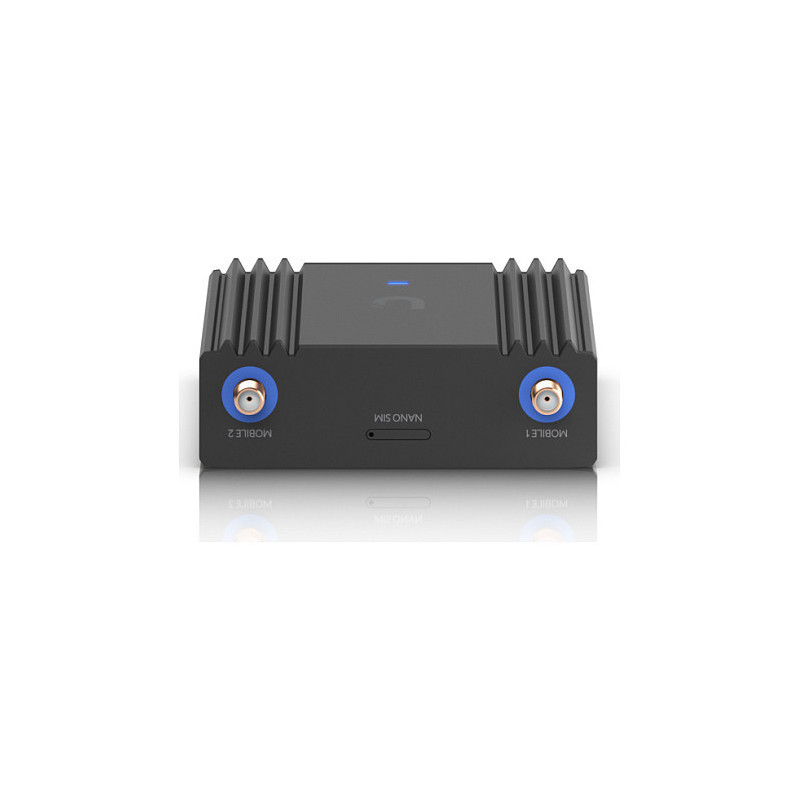

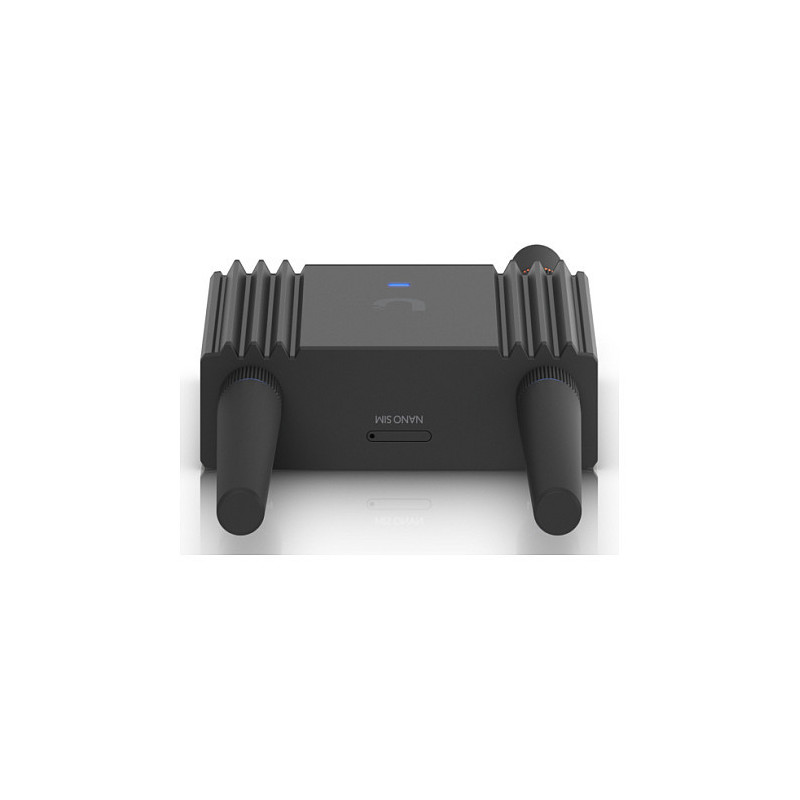

SIM card type: NanoSIM
Data transfer rate (LTE) (download): 150 Mbit/s
Data transfer rate (LTE) (upload): 50 Mbit/s

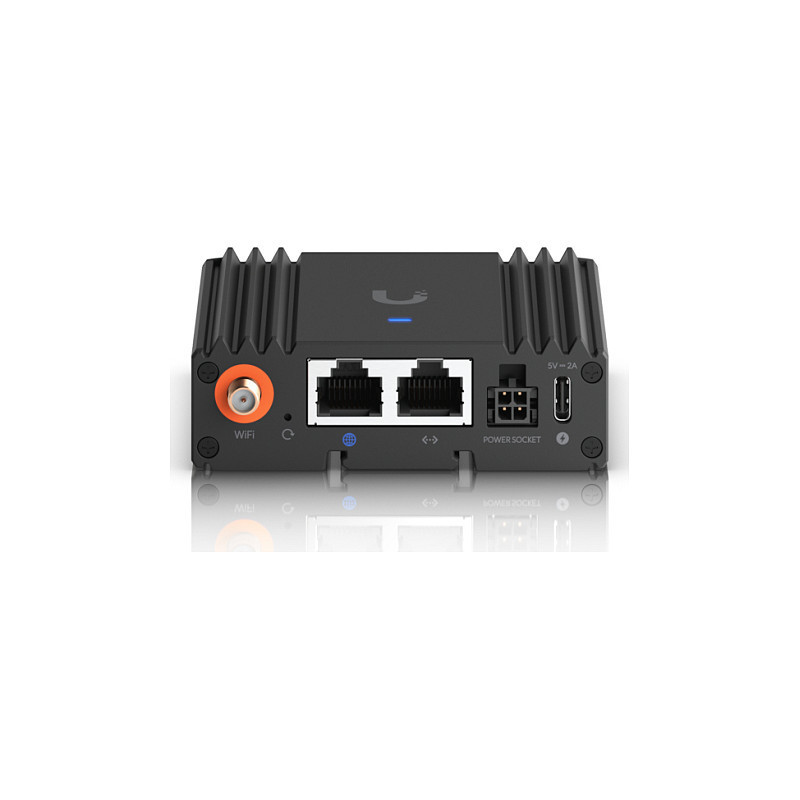

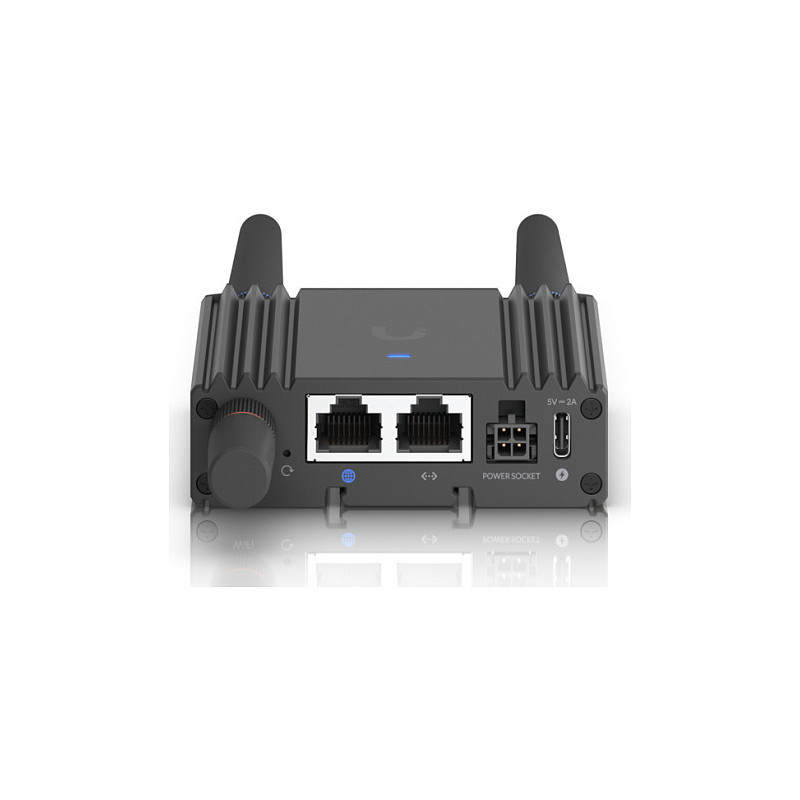

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB port type: USB Type-C
Feature: USB port

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), PTCRB, GCF

Performance

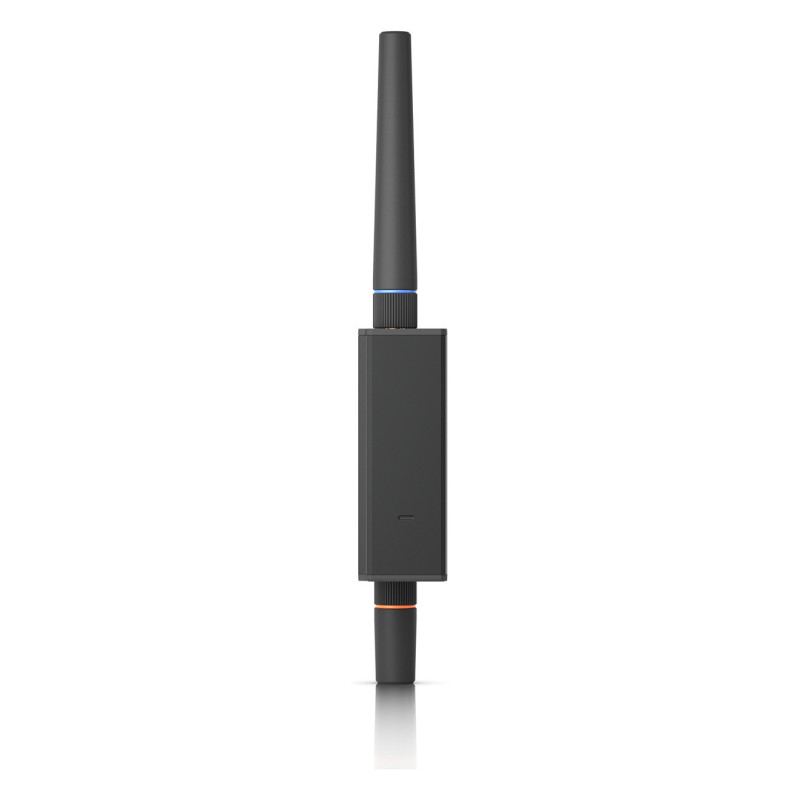

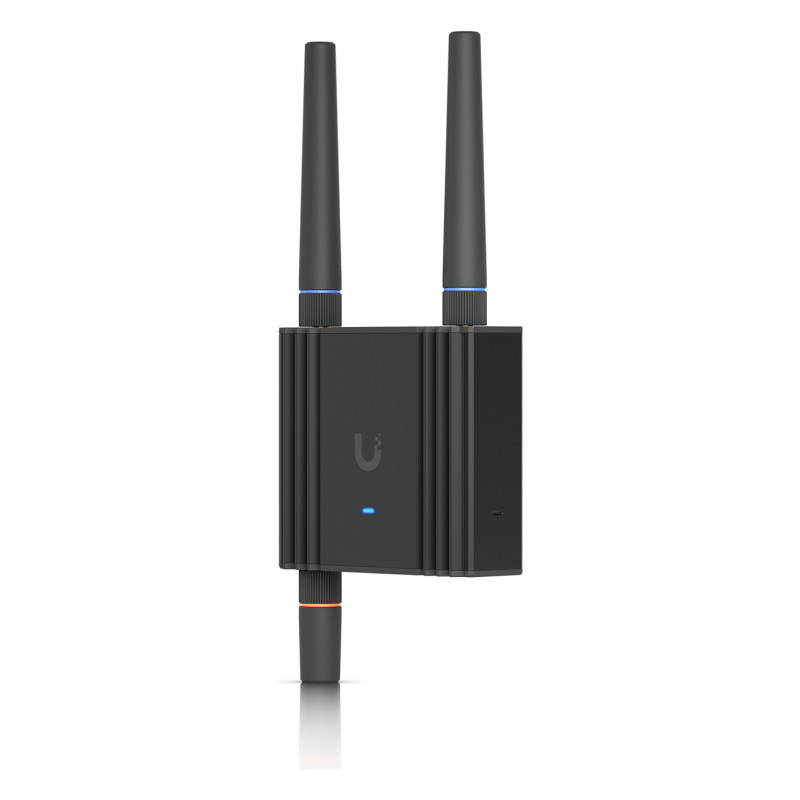

Antenna type: External
Antenna connector type: SMA/RP-SMA
Antennas quantity: 3
Feature: Detachable antenna(s)

Power

Power source type: DC, USB
Power consumption (typical): 5.7 W
Input voltage: 5 - 30 V

Operational conditions

Operating temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 82 mm
Depth: 26 mm
Height: 193.5 mm
Weight: 200 g

Packaging data

Feature: User guide
