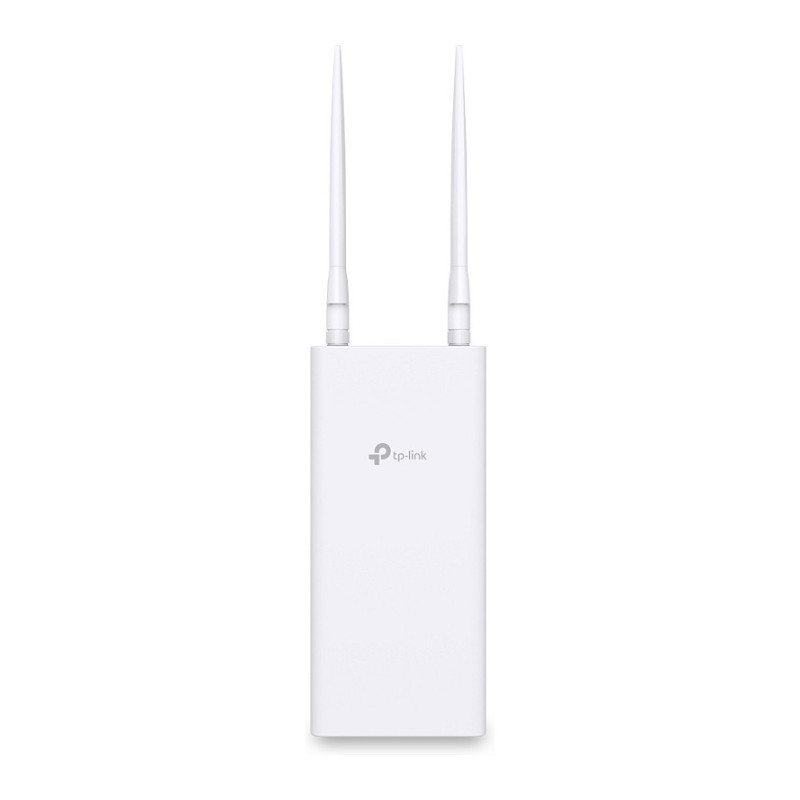

TP-Link TL-MR100-OUTDOOR belaidis maršruto parinktuvas

TP-Link TL-MR100-OUTDOOR. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK

Dependable 4G Wi-Fi Internet Connectivity
The TL-MR100-Outdoor supports 4G LTE for internet download speeds up to 150 Mbps, paired with fast Wi-Fi speeds of up to 300 Mbps, enabling seamless networking experience.

Durable Outdoor Design for Stable Performance
Engineered for extreme environments, TL-MR100-Outdoor features IP65 waterproofing, operates from -30°C to 60°C, and 6kV lightning & 15kV ESD protection. Maintains uninterrupted connectivity in harsh weather conditions, delivering stable outdoor network performance.

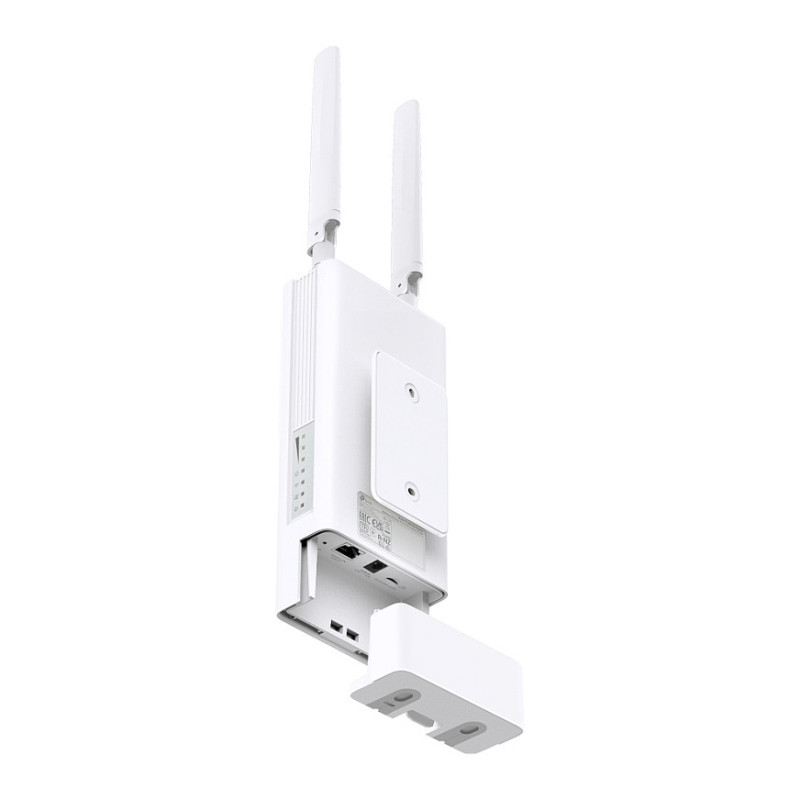

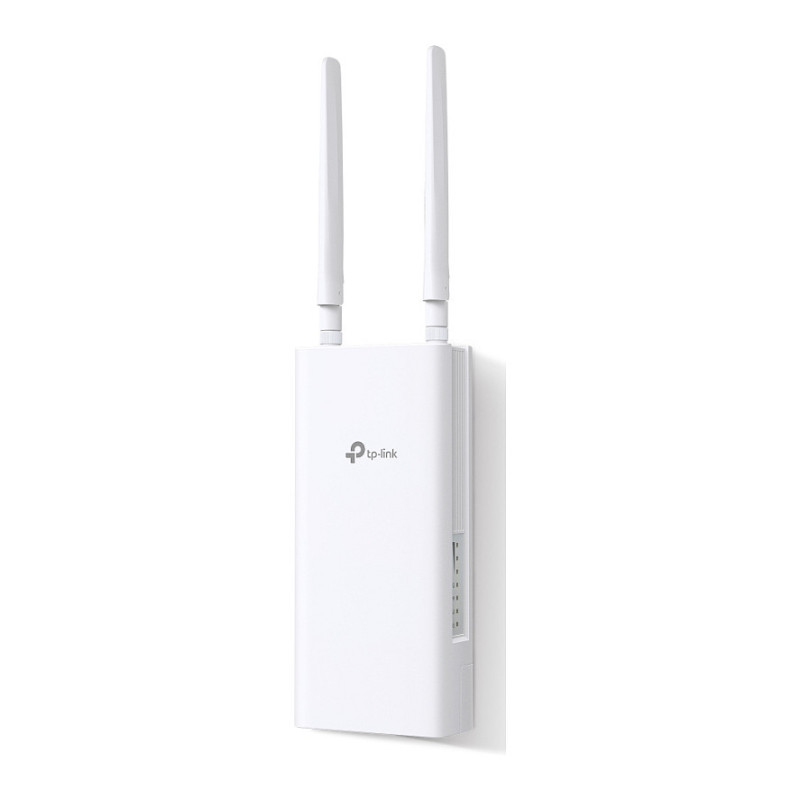

Versatile Installation for Diverse Environments
The TL-MR100-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable connectivity.

PoE/DC Power Support: Simplified Outdoor Setup
The TL-MR100-Outdoor features PoE and DC power supply, simplifying outdoor setup with flexible power options and ensuring reliable connectivity in diverse outdoor environments.

Easy Setup and Management
Set up TL-MR100-Outdoor in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

WAN connection

Feature: Ethernet WAN
Feature: DSL WAN
Feature: SIM card slot
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Feature: Wireless radio
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n): 20 dBmW
Receiver sensitivity: 11g 54M: -74 dBm11n HT20: -73 dBm11n HT40: -70 dBm

Mobile network

Mobile network generation: 4G
Feature: 3G
Feature: 4G
3G standards: HSPA, HSPA+, UMTS
4G standard: LTE-TDD & LTE-FDD
4G bands supported: 700,800,850,900,1800,2100,2600 MHz
3G bands supported: 850,900,2100 MHz

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Management features

Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Wireless statistics
Feature: Reset button

Security

Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: Firewall
Feature: Guest access
Feature: Stateful Packet Inspection (SPI)
Feature: Schedule access
Feature: MAC address filtering
Feature: IP address filtering
Feature: DMZ support

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4, IPv6

Design

Product colour: White
Feature: Wall mountable
International Protection (IP) code: IP65
Feature: On/off switch

Certificates

Certification: CE, RoHS

Packaging content

Cables included: LAN (RJ-45)
Feature: PoE injector included
Feature: Mounting kit
Feature: Quick installation guide

Antenna

Antenna design: External
Antennas quantity: 2

Features

Feature: Firmware upgradeable

Power

Power source type: DC, PoE
Output voltage: 12 V
Output current: 1 A
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage: 48 V

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 226.6 mm
Depth: 100 mm
Height: 54.7 mm
