TP-Link TL-ER7206 laidinis maršrutizatorius

TP-Link SafeStream Gigabit Multi-WAN VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3, Firewall security: SPI, VPN support: IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN. Cables included: AC. Flash memory: 132 MB, Internal memory: 512 MB, Internal memory type: DRAM

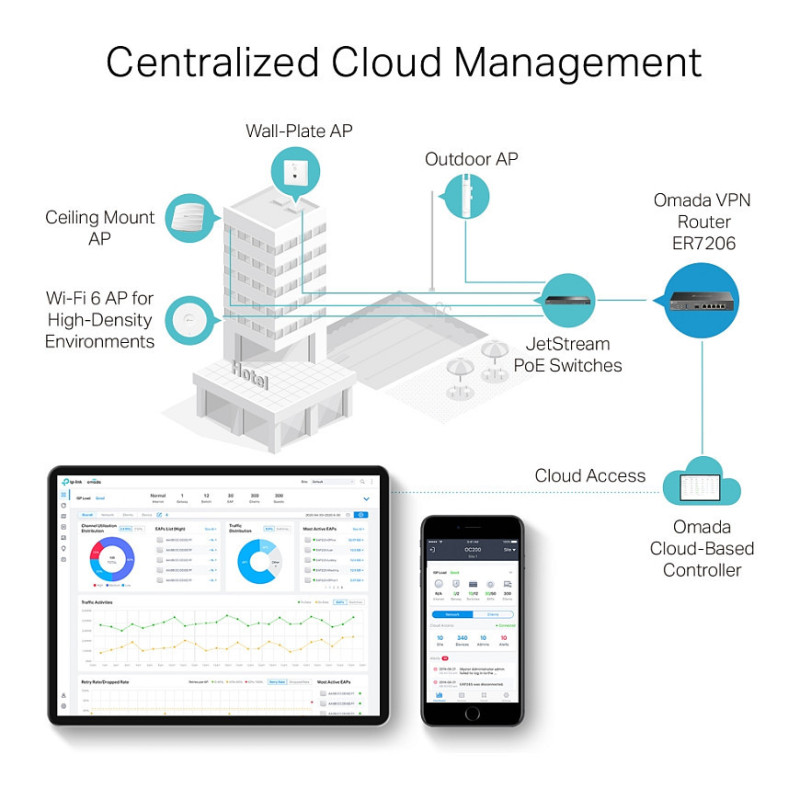

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

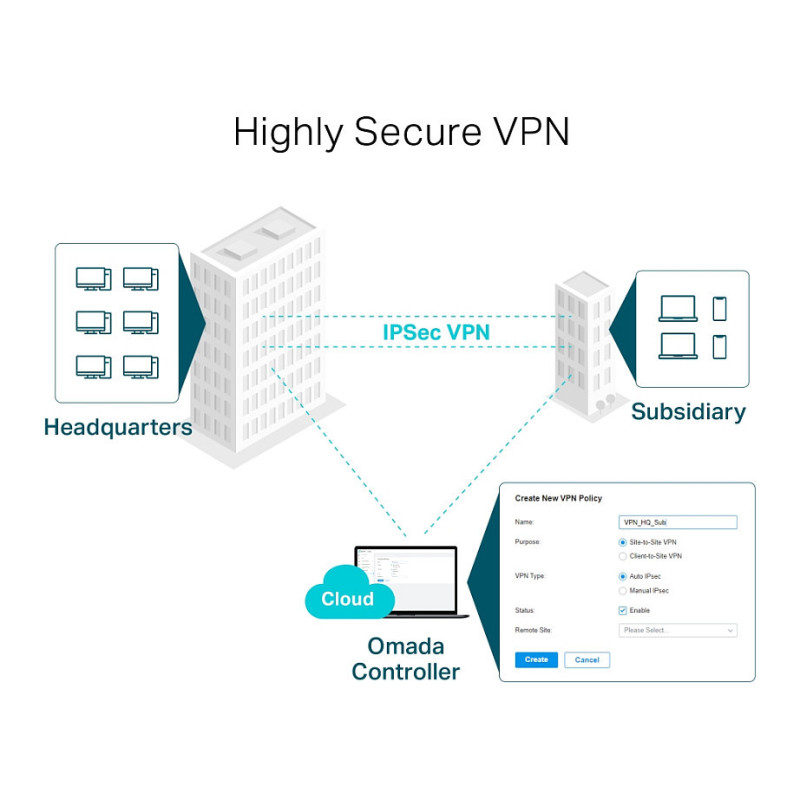

Highly Secure VPN
ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Internet Access Management Strategy
Standardize users' online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

WAN connection

Feature: Ethernet WAN
Feature: SFP WAN

Network

Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Static route
Feature: VLAN support
Feature: Policy-based routing

Management features

Feature: Web-based management
Feature: Universal Plug and Play (UPnP)
Feature: Reset button

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4

Protocols

Feature: DMZ support
Feature: DHCP server
Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Security

Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Feature: Firewall
Firewall security: SPI
Feature: URL filtering
Feature: ARP attack prevention
Feature: Access Control List (ACL)
Feature: System event log
VPN support: IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN

Packaging content

Cables included: AC
Feature: Quick installation guide

Features

Flash memory: 132 MB
Internal memory: 512 MB
Internal memory type: DRAM
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Certification: CE, FCC, RoHS

Design

Product colour: Black
LED indicators: Activity, Link, Power, System, WAN

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 226 mm
Depth: 131 mm
Height: 35 mm

Packaging data

Package width: 226 mm
Package depth: 288 mm
Package height: 72 mm
Package weight: 1.32 kg

Logistics data

Harmonized System (HS) code: 85176990
