TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Product reference: 18-EAP235-Wall

TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Product reference: 18-EAP235-Wall

TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

You have 3 products in compare list, please remove someone and try again

Add to compare

7489 €

Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

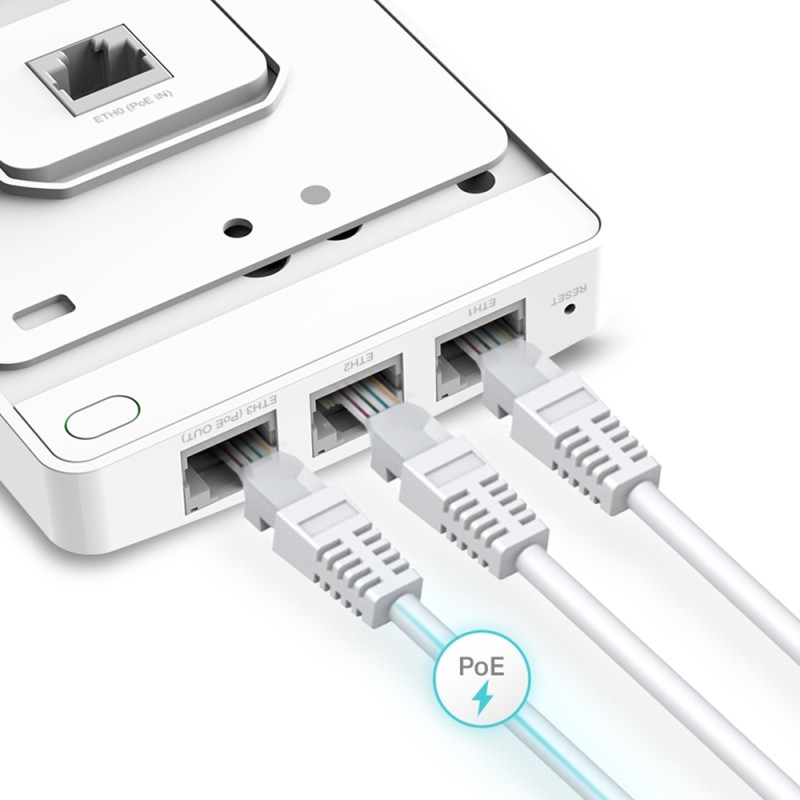

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired devices.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

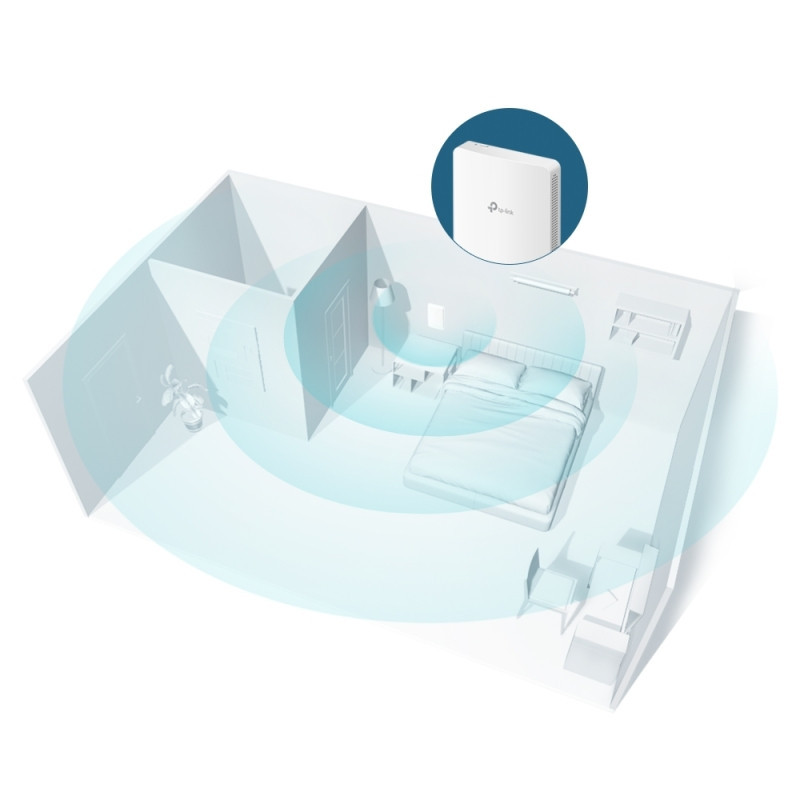

Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm EU US standard junction box, and 802.3af/at PoE support.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

HARDWARE FEATURES
Interface	• Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/802.3at PoE
Power Consumption	9.8 watts / 24.4 watts (PoE Out Included)

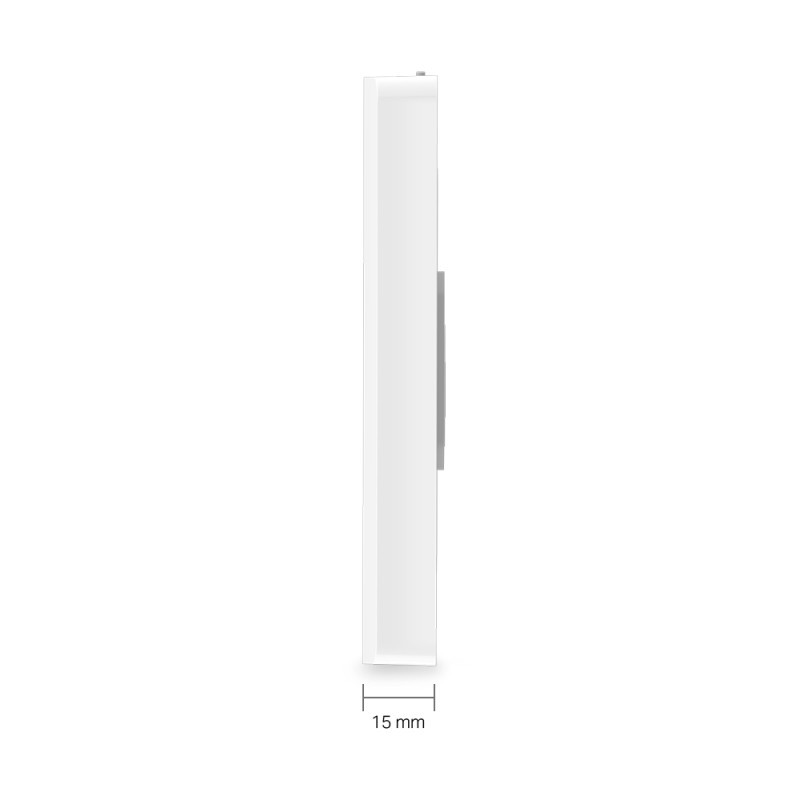

Dimensions	143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna	2 Dual-Band Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 4 dBi
Mounting	Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps
Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Band Steering • Beamforming • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power	• CE: ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP) • FCC: ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall • Installation Guide • Mounting Screw
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
Environment	• Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
