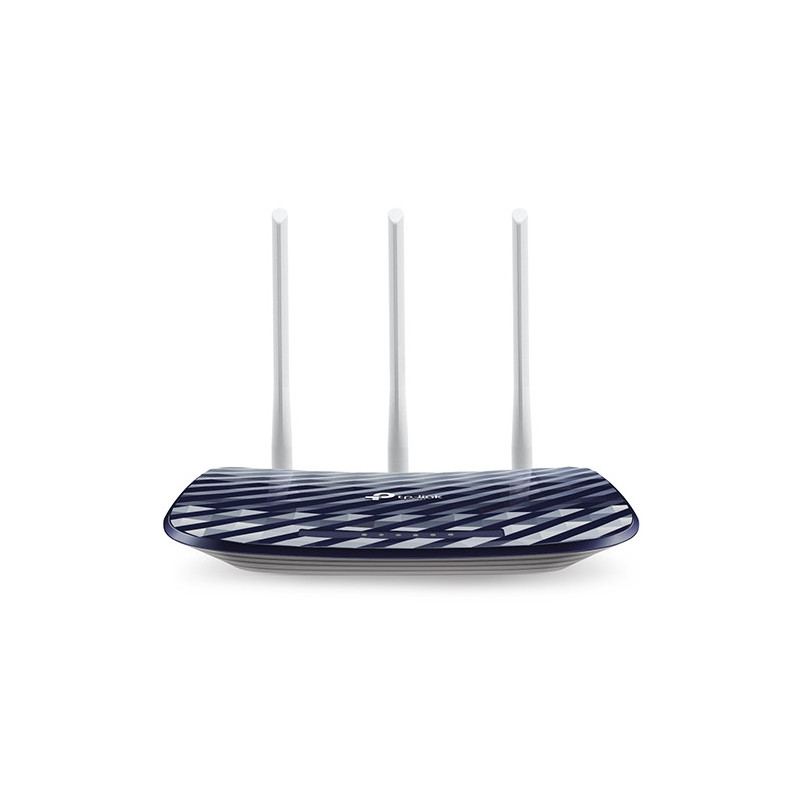

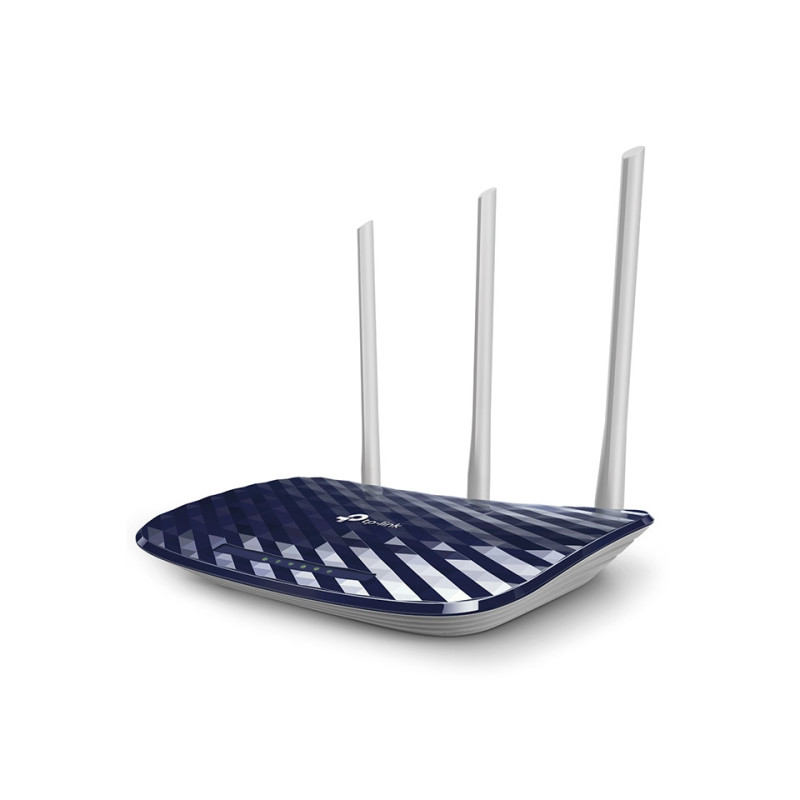

TP-LINK AC750 Wireless Dual Band Router

• Supports 802.11ac standard - the next generation of Wi-Fi


• Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth


• 2 external antennas provide stable omnidirectional signal and superior wireless coverage

HARDWARE FEATURES

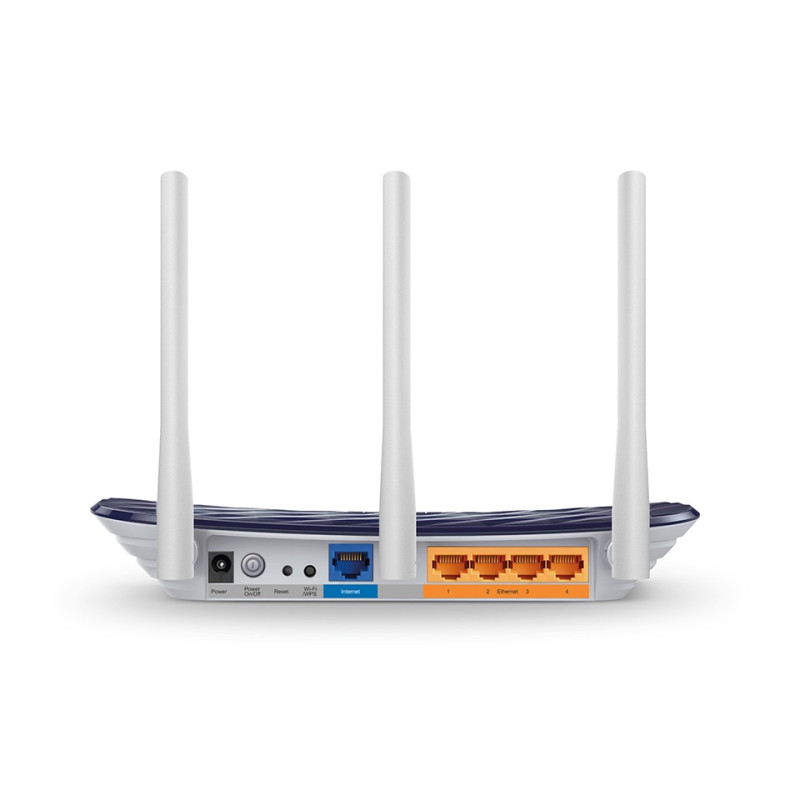

Interface: 4 10/100Mbps LAN ports 1 10/100Mbps WAN port Buttons: WPS/Reset Button Wireless On/Off Switch Power On/Off Button Antennas: 2 × 2.4GHz Antennas 1 × 5GHz Antenna External Power Supply: 12VDC /1A Dimensions ( W x D x H ): 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm) Antenna Type: Two dual band fixed antennas

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz Frequency: 2.4GHz and 5GHz Signal Rate: 5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps Reception Sensitivity: 5GHz 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, 11n HT20: -71dBm, 11n HT40: -69dBm 2.4GHz 11g 54M: -76dBm 11n HT20: -74dBm, 11n HT40: -71dBm Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption Transmission Power: CE: <20dBm(2.4GHz), <23dBm(5GHz) FCC: <30dBm

SOFTWARE FEATURES

Quality of Service: WMM, Bandwidth Control Management: Access Control Local Management Remote Management Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS: DynDns, Comexe, NO-IP VPN Pass-Through: PPTP, L2TP, IPSec Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall Security: DoS, SPI Firewall IP Address Filtering/MAC Address Filtering/Domain Filtering IP and MAC Address Binding Protocols: Supports IPv4 and IPv6 USB Sharing: Support Samba(Storage)/ FTP Server/Media Server/Printer Server Guest Network: 2.4GHz guest network × 1 5GHz guest network × 1

OTHERS

Certification: CE, FCC, RoHS Package Contents: AC750 Wireless Dual Band Router Archer C20 2 Fixed Antennas Power Supply Unit Resource CD Ethernet Cable Quick Installation Guide System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system Environment: Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
