TP-LINK AC750 belaidis dviejų dažnių 4G LTE maršrutizatorius

• Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps


• Powerful, integrated antennas provide stable wireless connections and better coverage


• Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection


• Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band


• Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

HARDWARE FEATURES

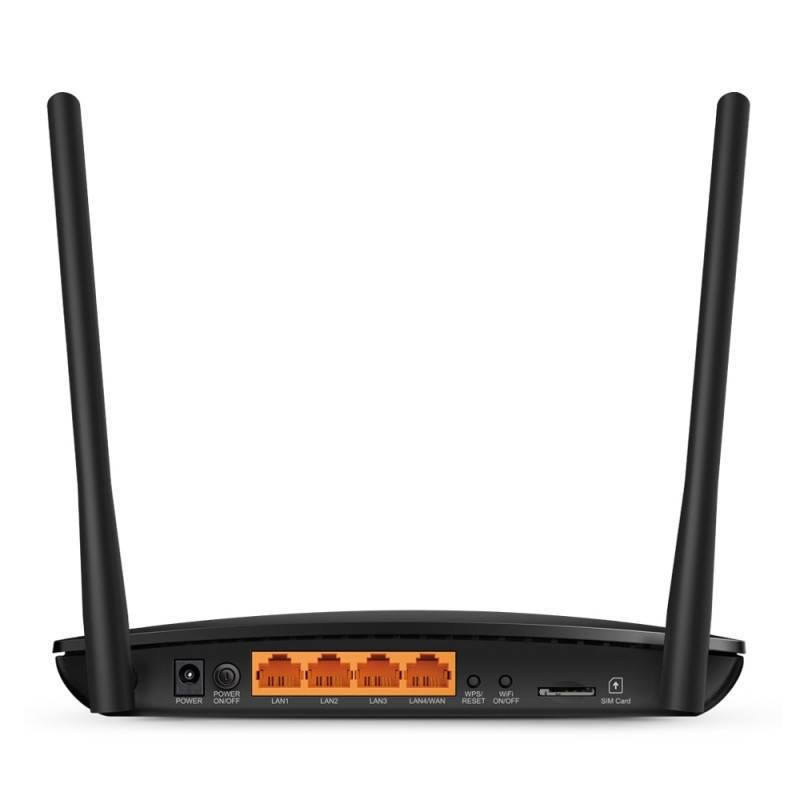

Interface: 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot

Button: WPS/Reset Button, WiFi On/Off Button, Power On/Off Button

External Power Supply: 12V/1A

Dimensions ( W x D x H ): 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)

Antennas:

2 Internal 4G LTE Antennas

2 Fixed External WiFi Antennas

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency: 2.4GHz and 5GHz

Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz

Reception Sensitivity:

5GHz:

11a 54M: -74dBm

11ac HT20: -67dBm

11ac HT40: -64dBm

11ac HT80 : -60dBm

11n HT20: -71dBm

11n HT40: -70dBm

2.4G:

11g 54M: -76dBm

11n HT20: -73dBm

11n HT40: -67dBm

Transmit Power: CE: <20dBm(2.4GHz), <23dBm(5GHz)

Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type:

4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)

TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500 MHz)

3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

SOFTWARE FEATURES

Quality of Service: Bandwidth Control

Operating Modes: 3G/4G Router, Wireless Router

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management: Access Control, Local Management, Remote Management, reboot schedule

DHCP: Server, Client, DHCP Client List, Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS: DynDns, NO-IP

VPN Pass-Through: PPTP VPN, IPSec VPN, OpenVPN

VPN: PPTP VPN, IPSec VPN, OpenVPN

Access Control: Parental Control, Local Management Control

Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding

Protocols: Supports IPv4 and IPv6

Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

OTHERS

Certification: CE, RoHS

Package Contents:

AC750 Wireless Dual Band 4G LTE Router, Archer MR200

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers, Micro SIM Card

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
