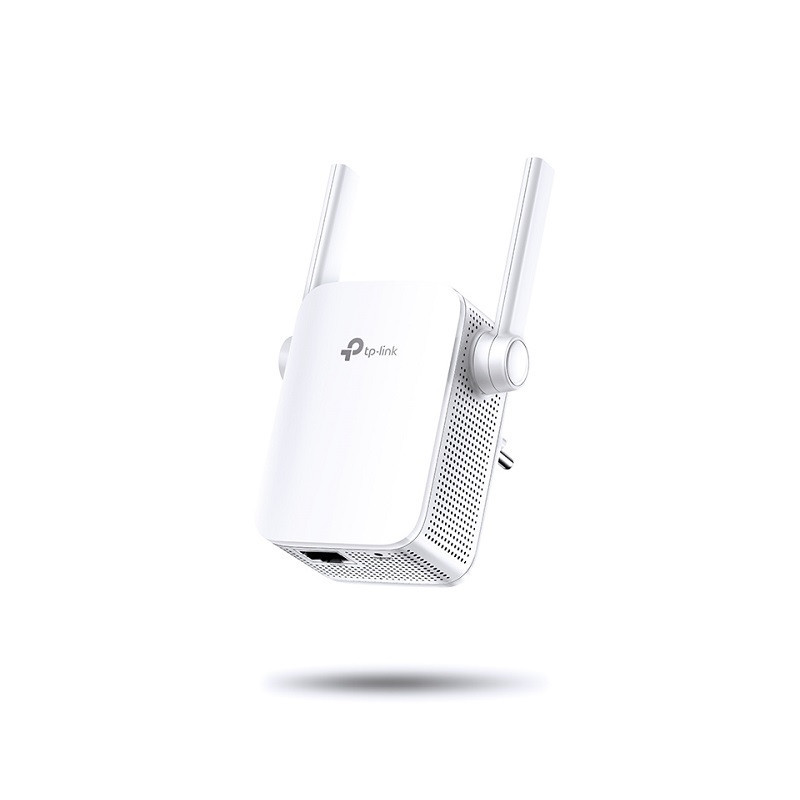

TP-LINK AC1200 „Wi-Fi“ diapazono ilgintuvas

• Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps


• Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience

• Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength

• Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES

Plug Type: EU

Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b

Interface: 1 * 10/100M Ethernet Port (RJ45)

Button: WPS Button, Reset Button

Power Consumption: 7.3W（max power consumption）

Antenna: 2* external

Dimensions ( W x D x H ): 3.1*3.0*3.0 in. (80*78*77mm)

WIRELESS FEATURES

Frequency: 2.4GHz 5GHz(11ac)

Signal Rate:

5GHz:Up to 867Mbps

2.4GHz:Up to 300Mpbs

Reception Sensitivity:

5GHz：

11a 6Mbps:-91dBm@10% PER

11a 54Mbps: -74dBm@10% PER

11ac HT20 mcs8: -68dBm@10% PER

11ac HT40 mcs9: -63dBm@10% PER

11ac HT80 mcs9: -59dBm@10% PER

2.4GHz

11g 54M: -79dBm@10% PER

11n HT20 mcs7: -77dBm@10% PER

11n HT40 mcs7: -74dBm@10% PER

Wireless Modes:

Range Extender/Access Point

Wireless Statistic

Concurrent Mode boost both 2.4G/5G Wi-Fi band

Wireless Functions:

Wireless Statistic

Concurrent Mode boost both 2.4G/5G Wi-Fi band

Access Control

LED Control

Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

Transmission Power:

<17dBm(2.4GHz)

<17dBm(5GHz)

OTHERS

Certification: CE, FCC, RoHS

Package Contents:

AC1200 Wi-Fi Range Extender RE305

Quick Installation Guide

Box Dimensions (W X D X H): 6.15*4*3.7in. (156.5*101.5*95mm)

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment: Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
