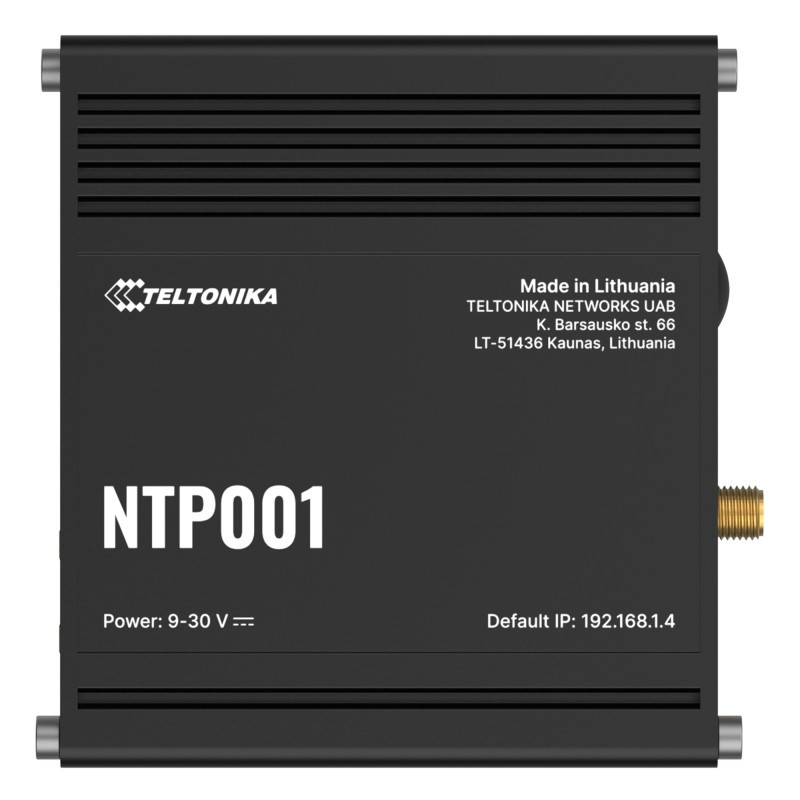

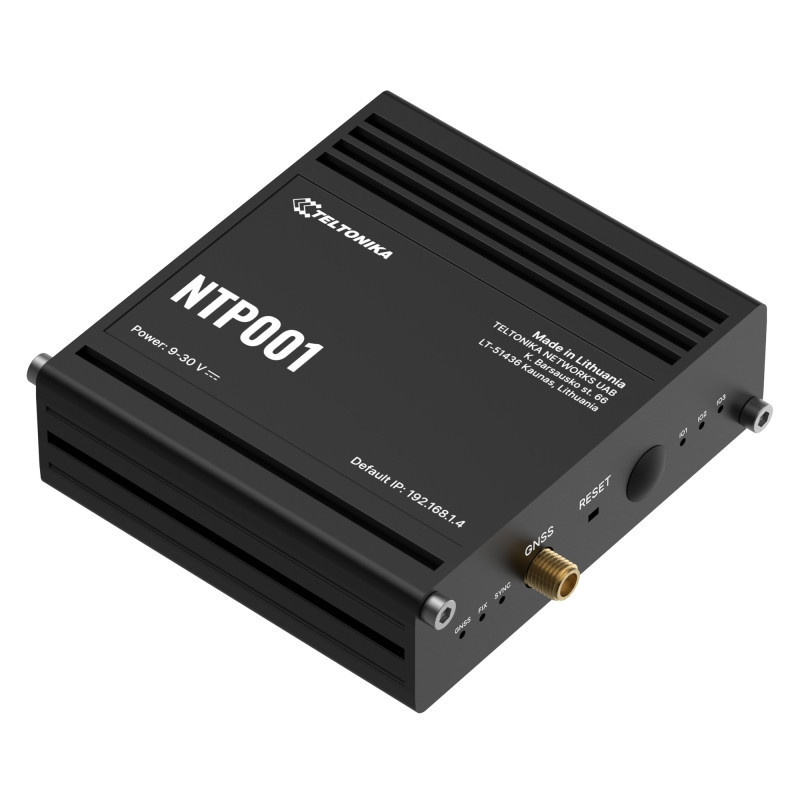

TELTONIKA Stratum-1 Teltonika NTP serveris, NTP001

NTP001 - tai Teltonikos 'stratum-1' NTP serveris, skirtas sinchronizuoti tikslų laiką viešuosiuose ir privačiuosiuose tinkluose: tiek internetu, tiek neprisijungus prie jo. Pasitelkdamas GNSS galimybes, šis ekonomiškas NTP serveris palaiko tikslų, UTC atsekamą laiką. Lengvas diegimas, platus sąsajų pasirinkimas, įskaitant RS232 ir RS485, bei nepalaužiama saugumo sistema užtikrina NTP001 tinkamumą profesionaliems sprendimams.

EthernetLAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NetworkNetwork protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT

Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot

Network topology: Visual representation of your network, showing which devices are connected to which other devices

DDNS: Supported > 25 service providers, others can be configured manually

SecurityAuthentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS users authentication, IP login attempts block, time-based login blocking, built-in random password generator

WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control: Flexible access control of SSH, Web interface, CLI and Telnet

802.1x: Port-based network access control client

NTPSupported modes: Server - Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485)

Daytime Protocol: TCP/UDP

Date over Serial: RS232/RS485

NTP: NTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode

Protocol: NTP Stratum 1 Time Server (NTPv4)

NTP Accuracy: Ethernet NTP ±1ms overall

NTP Performance: > 300 NTP requests per second (wire speed)

Synchronization Accuracy: LAN synchronization typically 1-10ms

MODBUSSupported modes: Server, Client

Supported connection types: RTU (RS232, RS485), TCP

Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GatewayModbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

APITeltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring ManagementWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

SSH: SSH (v1, v2)

SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC: Management API over HTTP/HTTPS

MODBUS: MODBUS TCP status/control

System CharacteristicsCPU: Mediatek, 580 MHz, MIPS 24KEc

RAM: 128 MB, DDR2

FLASH storage: 16 MB, NOR Flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup

Keep settings: Update FW without losing current configuration

Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware CustomisationOperating system: RutOS (OpenWrt based Linux OS)

Supported languages: Busybox shell (ash), Lua 5.1, C, C++

Development tools: SDK package with build environment provided

GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs

Location TrackingGNSS: GPS, GLONASS, BeiDou, Galileo and QZSS

Acquisition Sensitivity: Acquisition Sensitivity -146 dBm, Reacquisition Sensitivity -157 dBm, Tracking Sensitivity -157 dBm

Accuracy: CEP-50 open sky 2.5 m

Time Source: GPS 1575.42 ±1.023 MHz, GLONASS 1597.5-1605.8 MHz, Galileo 1575.42 ±2.046 MHz, BDS 1561.098 ±2.046 MHz

Startup: Cold GPS acquisition in <120 seconds

SerialRS232: Terminal block connector: TX, RX, RTS, CTS

RS485: Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)

Input / OutputInput: 3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output: 3 x Digital Output, Open collector output, max output 30 V, 300 mA

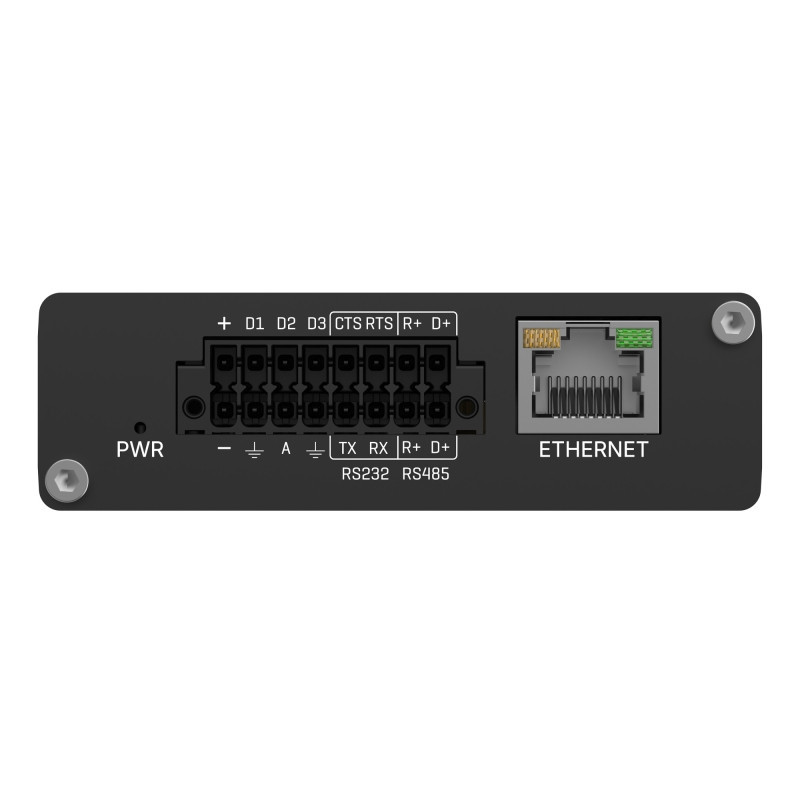

PowerConnector: 2-pin in 16-pin industrial terminal block

Input voltage range: 9 - 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max

Power consumption: Idle: < 2 W, Max: < 3.5 W

Physical InterfacesEthernet: 1 x RJ45 ports, 10/100 Mbps

I/O's: 3 x Configurable I/O, 1 x Analog input in 16-pin terminal block

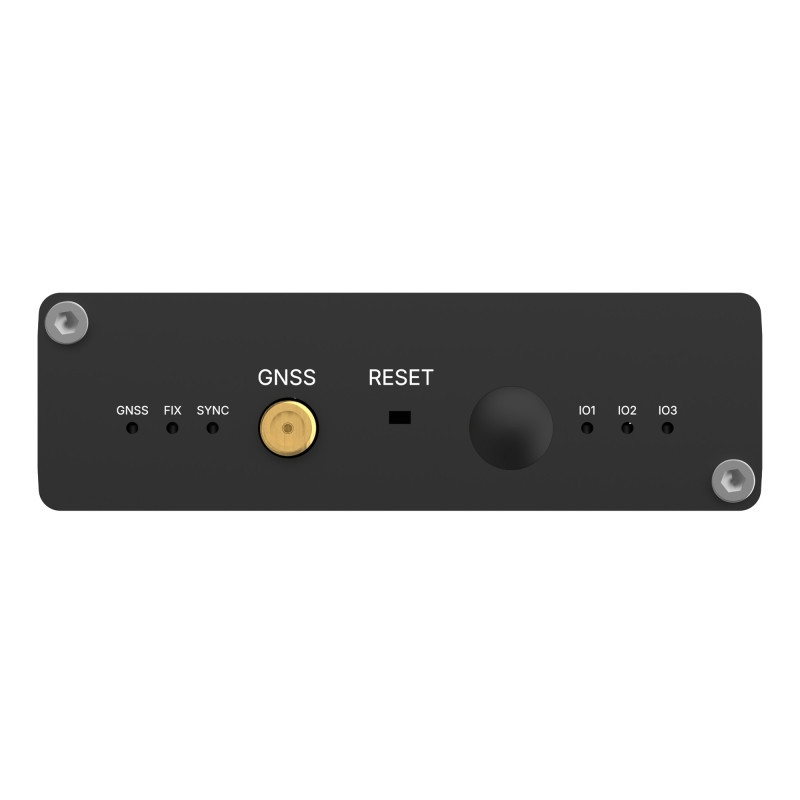

Status LEDs: 1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs

Power: 1 x 16-pin terminal block

Antennas: 1 x SMA for GNSS

RS232: 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)

RS485: 4-pin in 16-pin terminal block (D+, D-, R+, R-)

Reset: Reboot/User default reset/Factory reset button

Physical SpecificationCasing material: Anodized aluminum housing and panels

Dimensions (W x H x D): 82.6 x 25 x 83 mm

Weight: 180 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, CB, UCRF, EAC, WEEE
