Teltonika RUT301 (ES) Ethernet maršrutizatorius

Teltonika RUT301 (EU) ethernet router. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u. USB port type: USB Type-A. Certification: CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF, WEEE. Processor manufacturer: Mediatek, Processor frequency: 0.58 GHz, RAM capacity: 0.128 GB

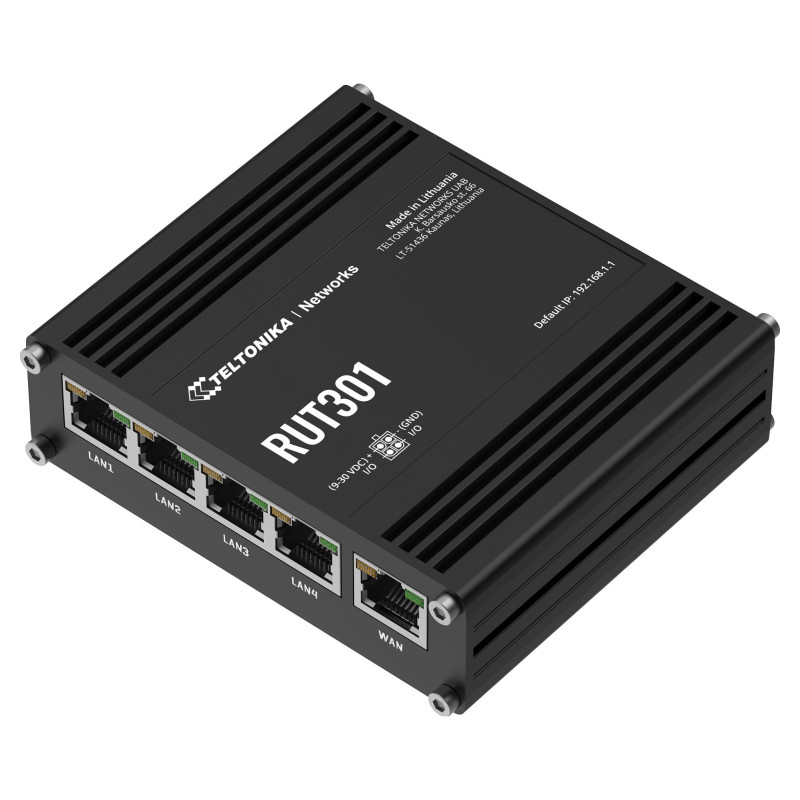

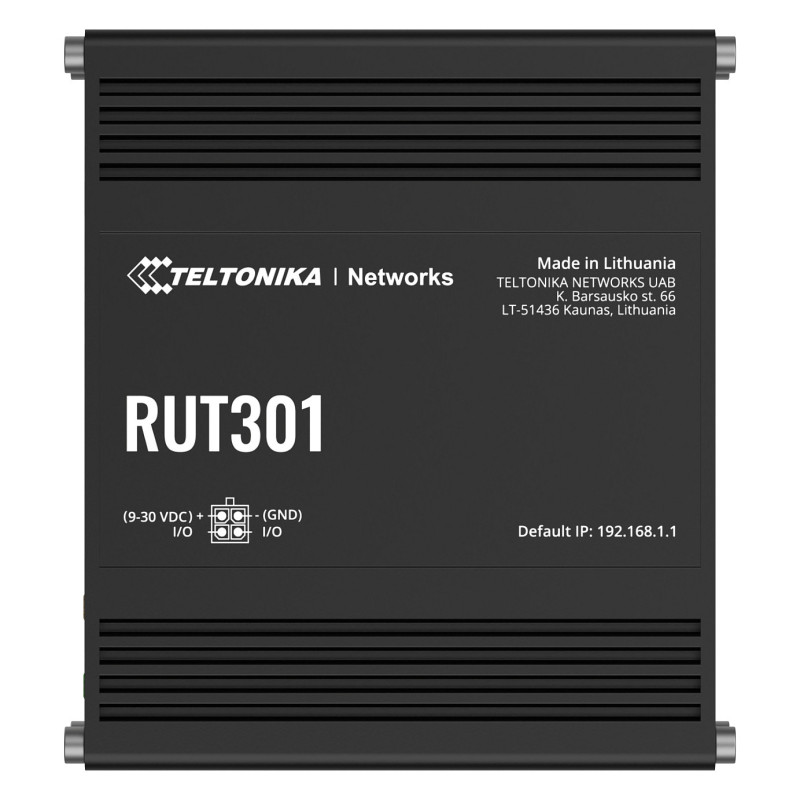

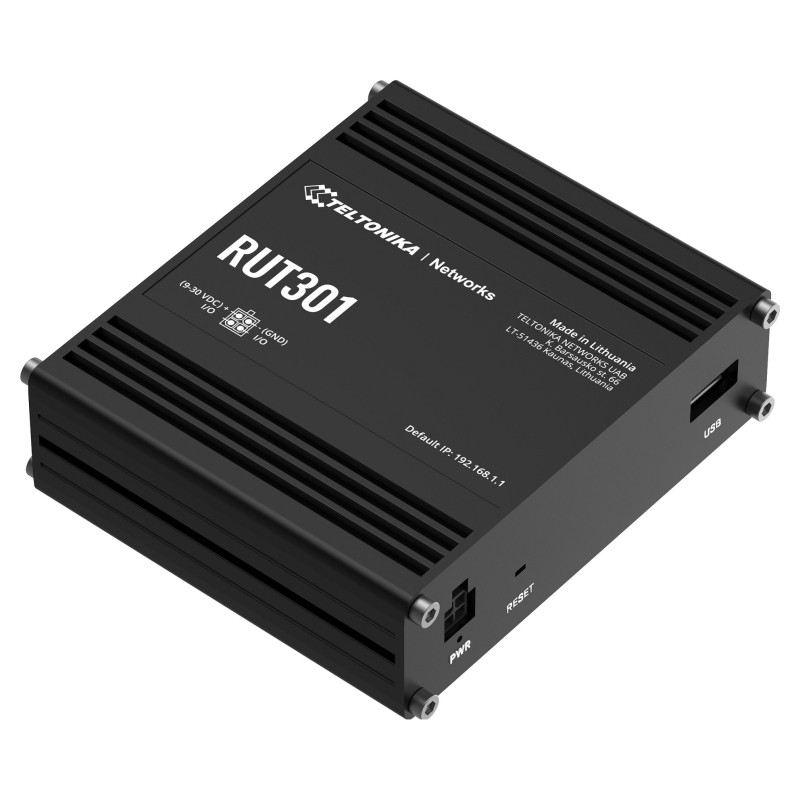

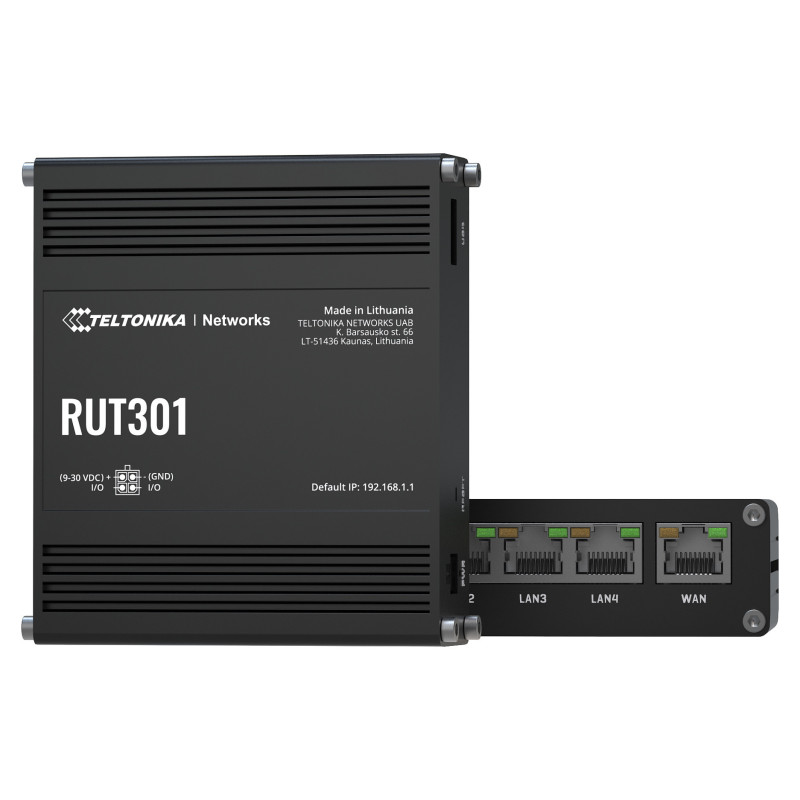

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.

Design

Device type: Cellular network router
Product colour: Black
Housing material: Aluminium
Market positioning: Industrial
Feature: Suitable for indoor use
Feature: Reset button
LED indicators: LAN, Power, Status, WAN

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: DHCP client
Feature: DHCP server
Feature: Full duplex
Feature: IP routing

Mobile network

Data network: Not supported

Ports & interfaces

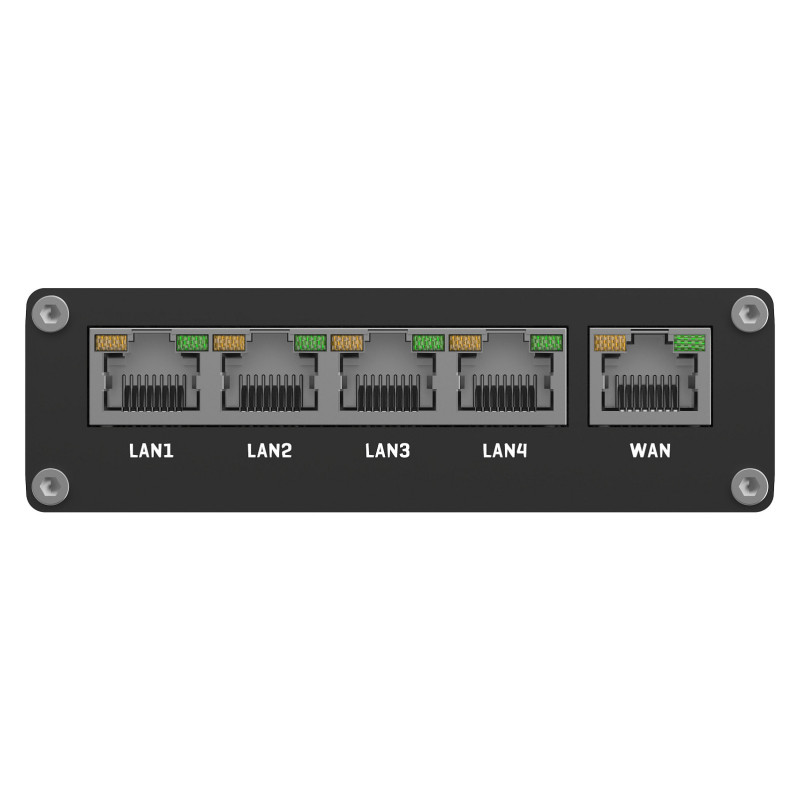

Ethernet LAN (RJ-45) ports: 5

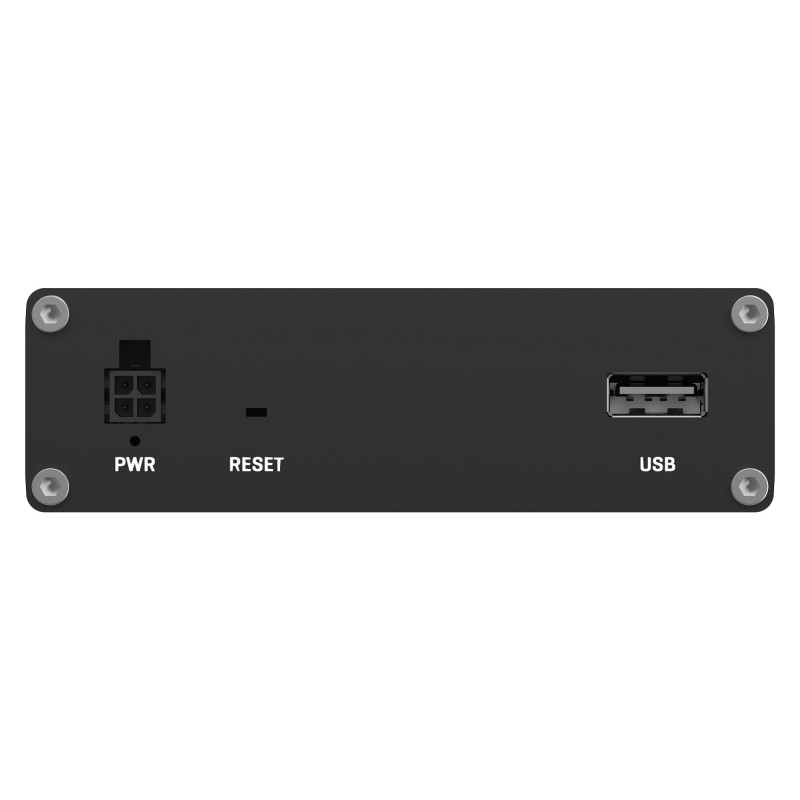

USB port type: USB Type-A
Feature: USB port
USB 2.0 ports quantity: 1

Security

Feature: Network address translation (NAT)
Feature: IP address filtering
Feature: DMZ support

Certificates

Certification: CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF, WEEE

Performance

Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.016 GB
Feature: Web-based management

Management features

Management platform: RMS

Power

Power source type: DC
Input voltage: 9-30 V
Feature: External power adapter

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
