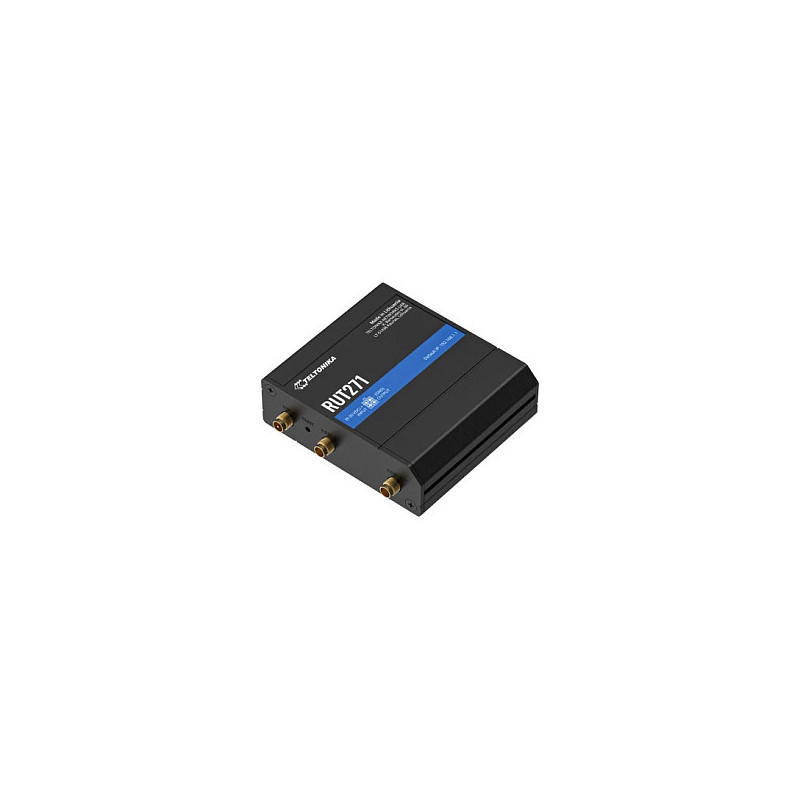

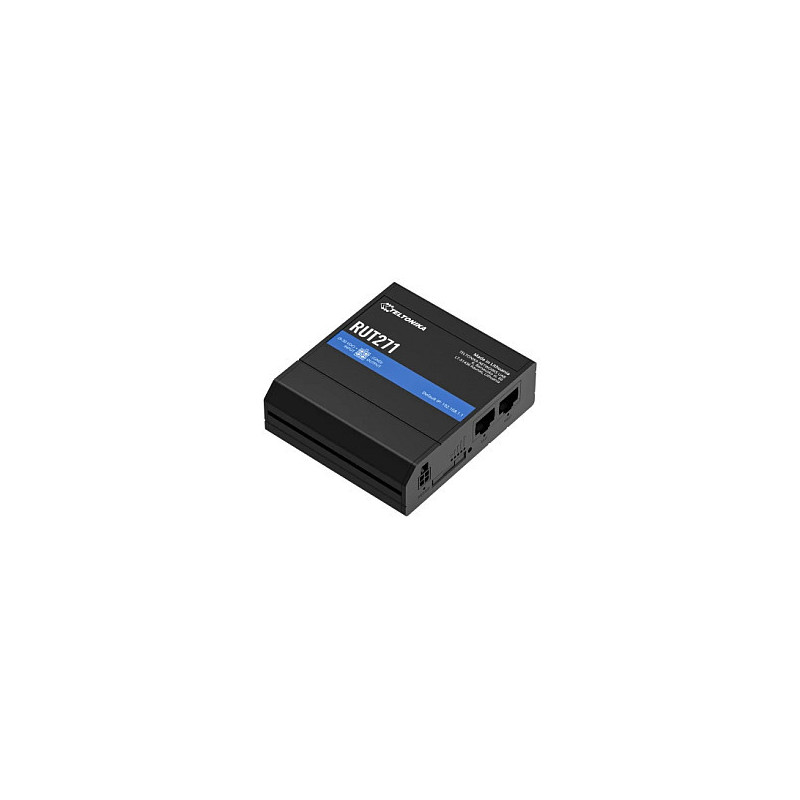

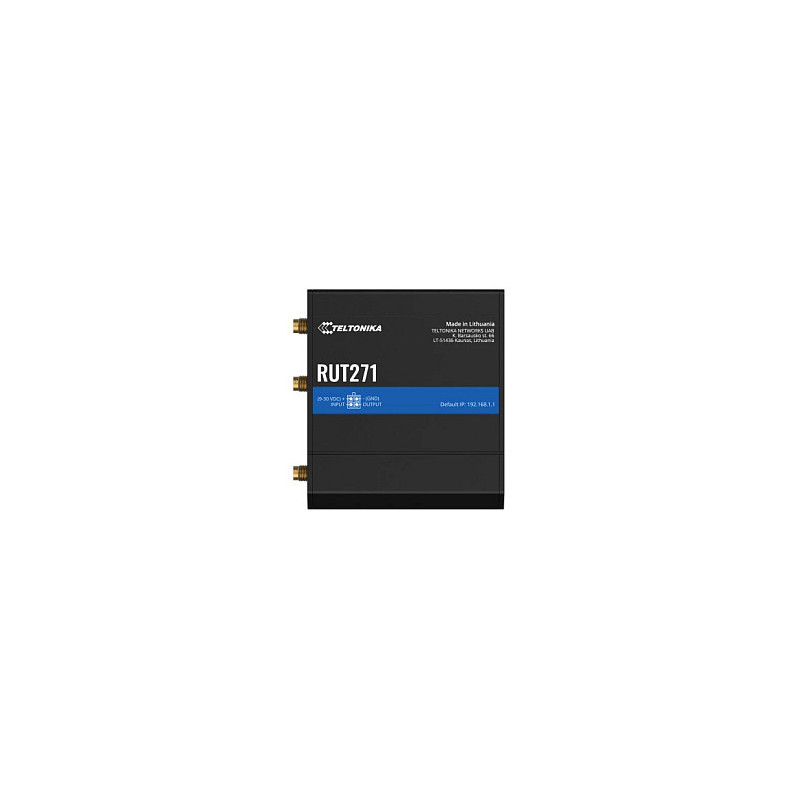

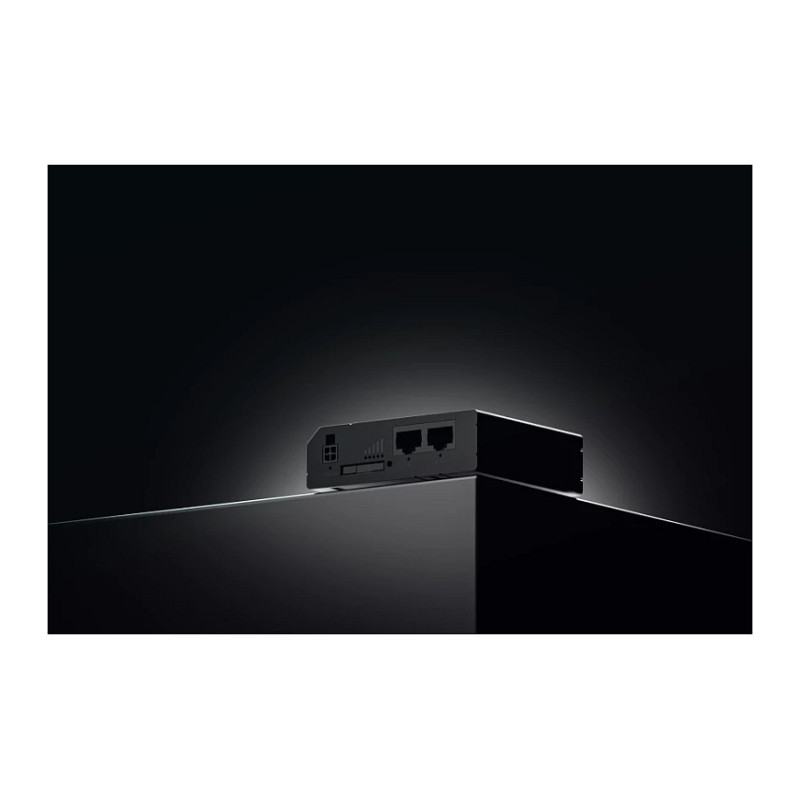

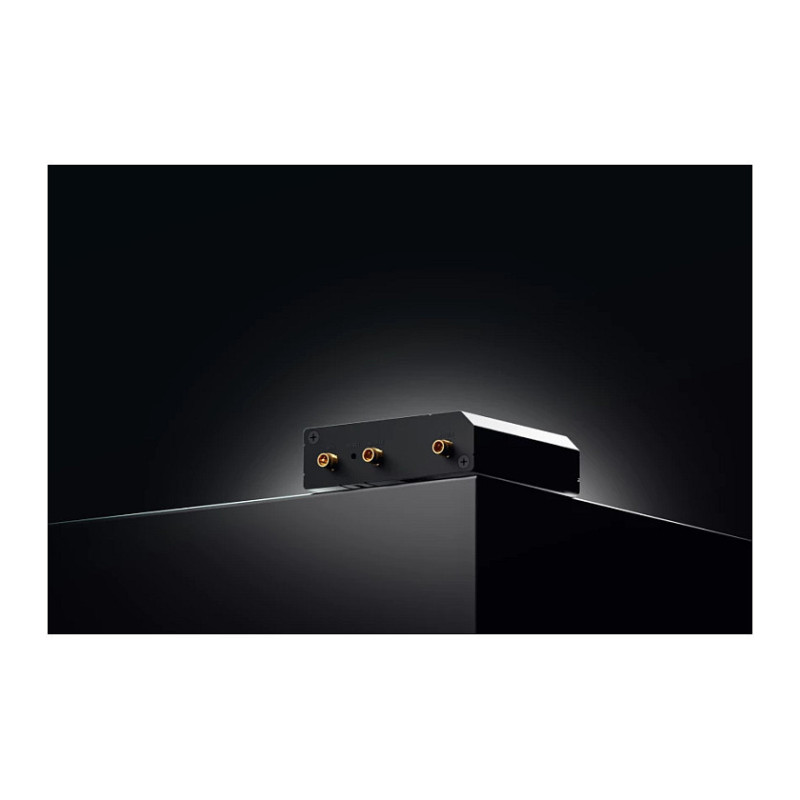

Teltonika RUT271

Teltonika RUT271. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium, Plastic. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP,.... Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 4G, 5G, 4G standard: LTE, 5G standard: Sub6 SA. Security algorithms: AES-CCMP, EAP-TLS, PEAP, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA3-EAP, WPA3-SAE

The RUT271 is a Redcap 5G router, bridging the gap between 4G and full-capacity 5G. Supporting SA architecture, this 5G router can wirelessly support up to 50 end devices and features the low latency of 5G—at affordable pricing. The RUT271 supports Wi-Fi and is backward compatible with 4G LTE Cat 4. This industrial-grade RedCap 5G router is also equipped with WAN failover, two 10/100 RJ45 ports, a compact and durable design, and numerous other brilliant features for expert professional deployment.

Design

Device type: Cellular network router
Product colour: Black
Housing material: Aluminium, Plastic
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Feature: Reset button
LED indicators: Yes

Ethernet LAN features

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: DHCP server

Wireless LAN features

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Mobile network

Data network: 4G, 5G
4G standard: LTE
5G standard: Sub6 SA
Number of SIM cards: 1
Feature: Short Message Service (SMS)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Security

Security algorithms: AES-CCMP, EAP-TLS, PEAP, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA3-EAP, WPA3-SAE
Feature: Firewall
Feature: Port forwarding

Performance

Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 128 GB
RAM type: DDR2
Internal storage capacity: 0.032 GB
Operating system installed: RutOS

Power

Power source type: DC
Output voltage: 9 - 30 V

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 83 mm
Depth: 74 mm
Height: 25 mm
Weight: 130 g
