Teltonika RUT142 (ES) Ethernet maršrutizatorius, belaidis maršrutizatorius

Teltonika Industrial router RUT142 WiFi 4, RS232, 2x RJ45 100Mb/s, IP30. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: AES-CCMP, EAP-TLS, OWE, SSH, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP,.... Product type: Industrial router, Product colour: Black, Housing material: Aluminium

The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: Full duplex
Feature: Auto-sensing
Feature: Auto MDI/MDI-X

Ports & interfaces

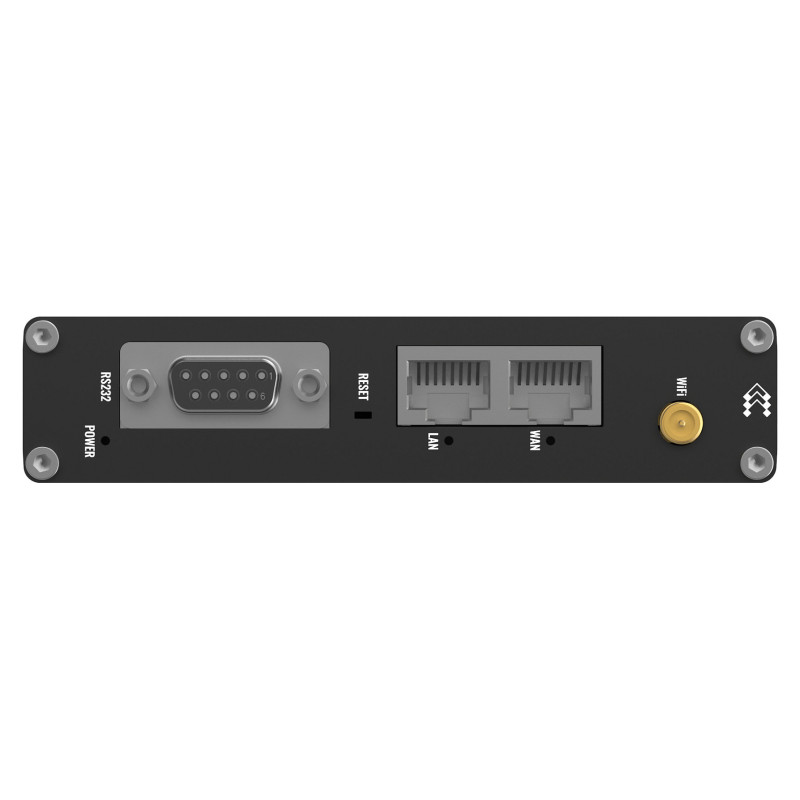

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
RS-232 ports: 1

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support

Security

Security algorithms: AES-CCMP, EAP-TLS, OWE, SSH, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE

Protocols

Feature: DHCP client
Feature: DHCP server

Design

Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
Feature: Indication light
LED indicators: LAN, Power, WAN
Product type: Industrial router

Certificates

Certification: CE/RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE

Antenna

Antenna design: External
Antenna connector type: RP-SMA
Antennas quantity: 1

Features

Feature: Built-in processor
Processor manufacturer: MediaTek
Processor architecture: MIPS 24Kc
Processor frequency: 580 MHz
Internal memory: 128 MB
Internal memory type: DDR2
Flash memory: 16 MB

Power

Power source type: DC, PoE

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 113.1 mm
Depth: 68.6 mm
Height: 25 mm
Weight: 149.2 g
