TELTONIKA pramoninis laidinis maršrutizatorius

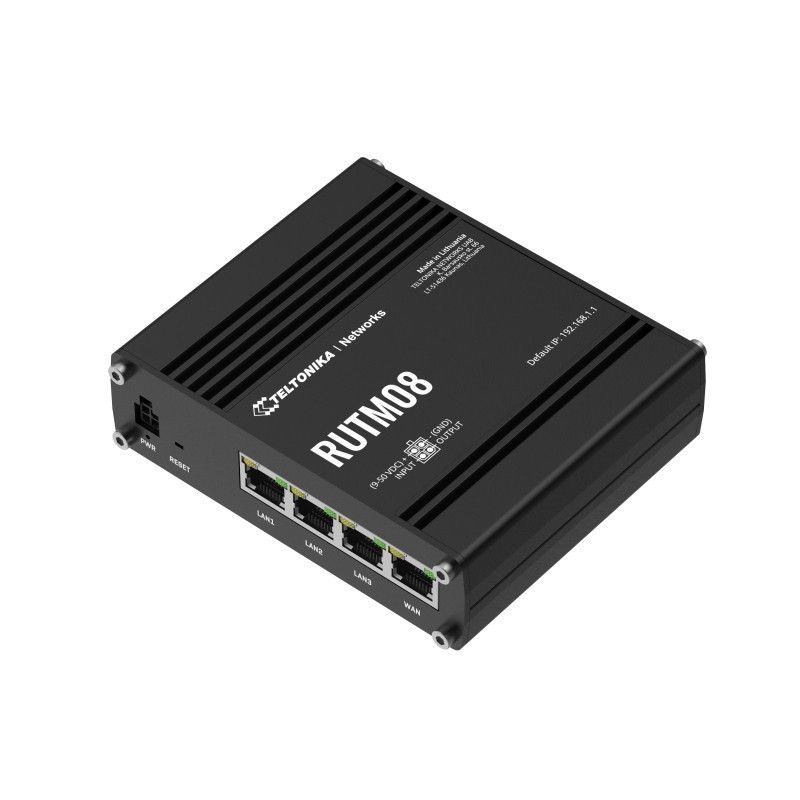

RUTM08 yra pramoninis Eterneto maršrutizatorius, skirtas kurti patikimas kabelines jungtis įvairiose pramonės srityse. Maršrutizatorius turi keturis gigabitinius RJ45 prievadus, kurie užtikrina greitą ryšio ir duomenų perdavimą tarp prijungtų galinių taškų. RUTM08 gali palaikyti iki 128 VLAN, pagrįstų žymomis ir prievadais, siekiant didesnio tinklo pritaikymo bei daugybę VPN ir M2M ryšio protokolų, kurie ypač svarbūs pramoninėje aplinkoje.

EthernetWAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NetworkRouting: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall: Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page: View all your Firewall statistics, rules, and rule counters

Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology: Visual representation of your network, showing which devices are connected to which other devices

DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS: Supported > 25 service providers, others can be configured manually

DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup: VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing: Balance Internet traffic over multiple WAN connections

Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

SSHFS: Possibility to mount remote file system via SSH protocol

VRF support: Initial virtual routing and forwarding (VRF) support

Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Security802.1x: Port-based network access control client

Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS users authentication, IP login attempts block, time-based login blocking, built-in random password generator

Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN: Port and tag-based VLAN separation

WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control: Flexible access control of SSH, Web interface, CLI and Telnet

SSL certificate generation: Let's Encrypt and SCEP certificate generation methods

VPNOpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE: GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP: SSTP client instance support

ZeroTier: ZeroTier VPN client support

WireGuard: WireGuard VPN client and server support

Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UASupported modes: Client, Server

Supported connection types: TCP

MODBUSSupported modes: Server, Client

Supported connection types: TCP, USB

Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to ServerProtocol: HTTP(S), MQTT, Azure MQTT

Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT GatewayModbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3Supported modes: Station, Outstation

Supported connection: TCP, USB

DLMSDLMS Support: DLMS - standard protocol for utility meter data exchange

Supported modes: Client

Supported connection types: TCP, USB

COSEM

Allows to scan meter COSEM objects for automatic detection and configuration

APITeltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring ManagementWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA: Firmware update from server, automatic notification

SSH: SSH (v1, v2)

Email: Receive email message status alerts of various services

TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT: MQTT Broker, MQTT publisher

SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC: Management API over HTTP/HTTPS

RMS: Teltonika Remote Management System (RMS)

IoT PlatformsCumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions

Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System CharacteristicsCPU: MediaTek, Dual-Core, 880 MHz, MIPS1004Kc

RAM: 256MB, DDR3

FLASH storage: 16 MB serial NOR flash, 256 MB serial NAND flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA: Update FW

RMS: Update FW/configuration for multiple devices at once

Keep settings: Update FW without losing current configuration

Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware CustomisationOperating system: RutOS (OpenWrt based Linux OS)

Supported languages: Busybox shell, Lua, C, C++

Development tools: SDK package with build environment provided

GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs

Package Manager: The Package Manager is a service used to install additional software on the device

USBData rate: USB 2.0

Applications: Samba share, USB-to-serial

External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / OutputInput: 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high

Output: 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA

Events: Email, RMS

I/O juggler: Allows to set certain I/O conditions to initiate event

PowerConnector: 4-pin industrial DC power socket

Input voltage range: 9 - 50 VDC, reverse polarity protection, surge protection > 51 VDC 10us max

PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC

Power consumption: Idle: < 1.8 W / Max: < 5.5 W

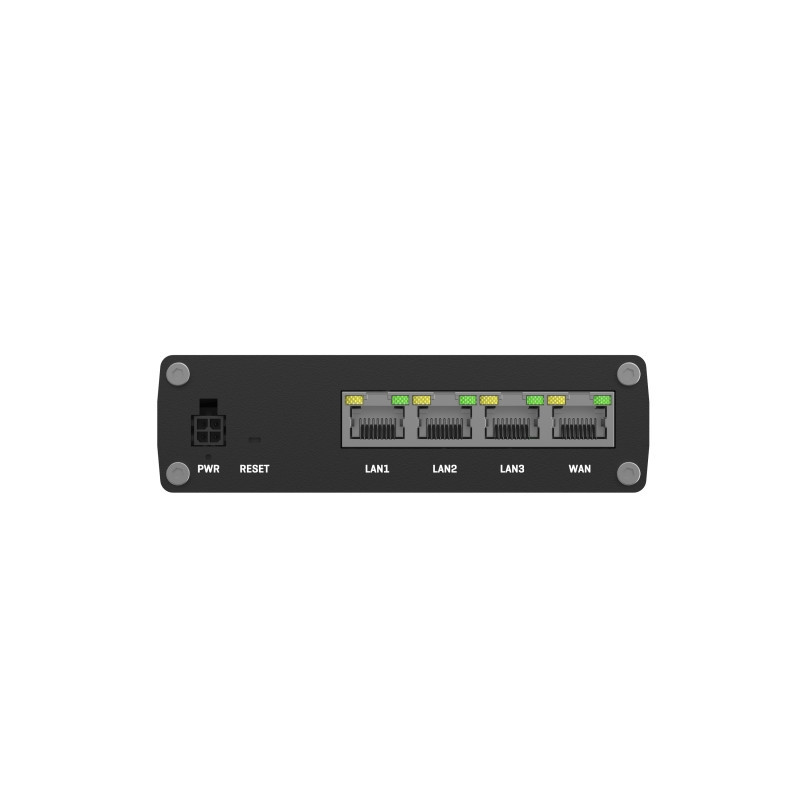

Physical InterfacesEthernet: 4 x RJ45 ports, 10/100/1000 Mbps

I/O's: 1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs: 8 x LAN status LEDs, 1 x Power LED

Power: 1 x 4-pin power connector

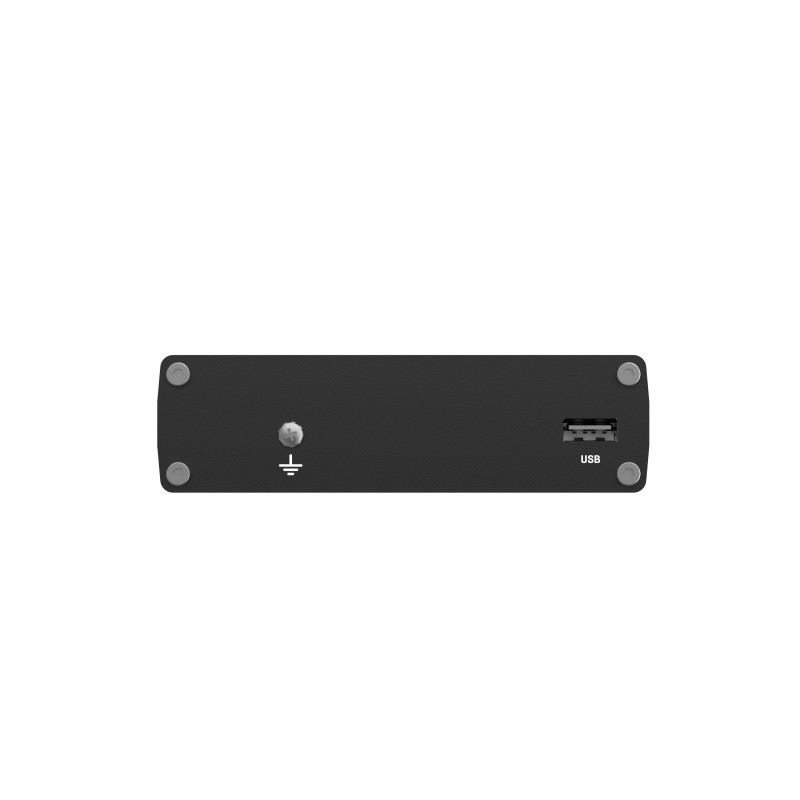

USB: 1 x USB A port for external devices

Reset: Reboot/User default reset/Factory reset button

Other: 1 x Grounding screw

Physical SpecificationCasing material: Anodized aluminum housing and panels

Dimensions (W x H x D): 115 x 32.2 x 95.2 mm

Weight: 353 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory

CE, UKCA, RCM, CB

EMC Emissions ImmunityStandards:

EN 55032:2015+A11:2020

EN 55035:2017+A11:2020

EN 61000-3-3:2013+A1:2019+A2:2021

EN IEC 61000-3-2:2019+A1:2021

ESD: EN 61000-4-2: 2009

Radiated Immunity: EN IEC 61000-4-3:2020

EFT: EN 61000-4-4: 2012

Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017

CS: EN 61000-4-6:2014

DIP: EN IEC 61000-4-11:2020

SafetyStandards:

IEC 62368-1:2018

EN IEC 62368-1:2020+A11:2020

Safety (Ordinary Locations)Standards:

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

RCM: AS/NZS 62368.1:2022

CB: IEC62368-1:2018

Standard package

• Router RUTM08


• 18 W PSU


• Ethernet cable (1.5 m)


• QSG (Quick Start Guide)


• Packaging box
