TELTONIKA LTE Cat4 pramoninis korinio ryšio maršrutizatorius

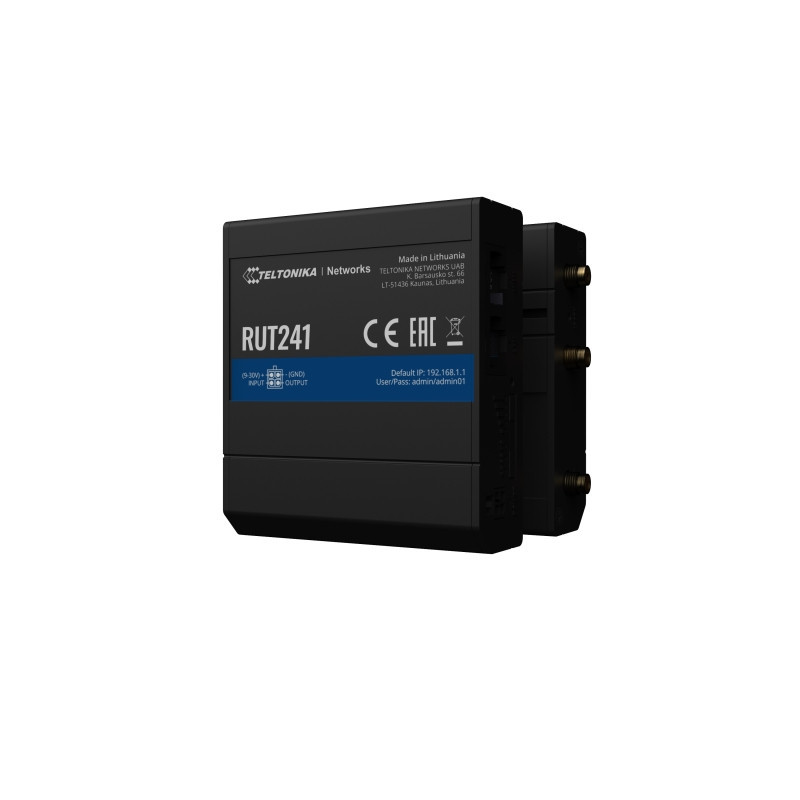

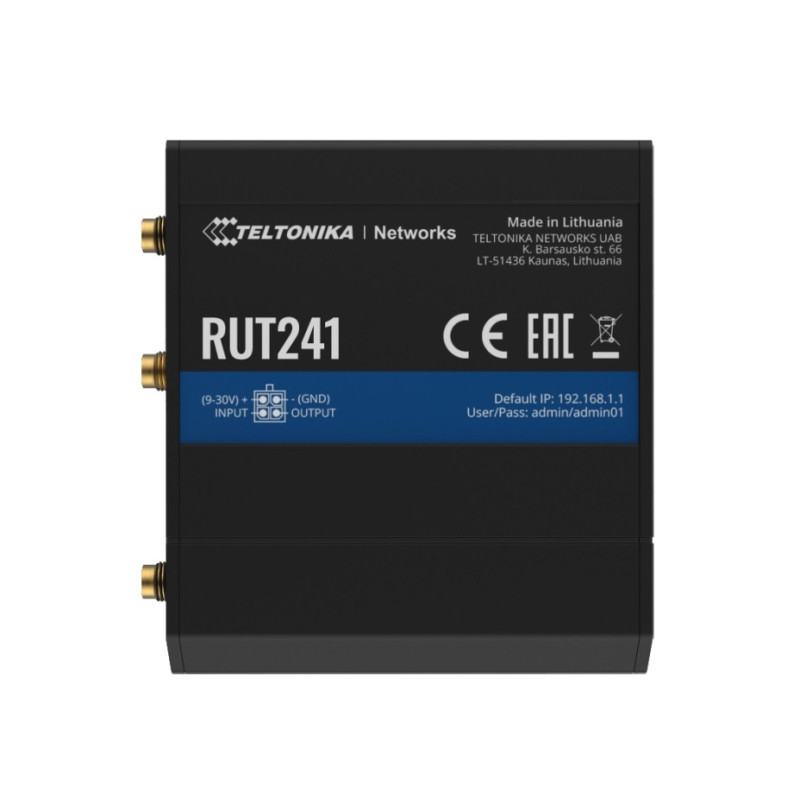

// RUT241 is the modified version of our all-time bestseller RUT240 that inherited its' best features, including industrial design, compact size, multiple connection interfaces, and compatibility with RMS.

// Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this router offers unstoppable connection continuity with a backup through automatic failover.

// Digital Inputs and Outputs coupled with advanced RutOS software enable solution automation scenarios.

// RUT241 is an excellent fit in various IoT and M2M solutions that require easy setup, reliable network, and remote accessibility.

MOBILEMobile module: 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps

Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD: Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list: Operator black/white list

Multiple PDN: Possibility to use different PDNs for multiple network access and services

Band management: Band lock, Used band status display

APN: Auto APN

Bridge: Direct connection (bridge) between mobile ISP and device on LAN

Passthrough: Router assigns its mobile WAN IP address to another device on LAN

WIRELESSWireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)

WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID/ESSID: SSID stealth mode and access control based on MAC address

WiFi users: Up to 50 simultaneous connections

Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNETWAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORKRouting: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)

Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall: Port forward, traffic rules, custom rules

DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd

QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS: Supported > 25 service providers, others can be configured manually

Network backup: WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing: Balance Internet traffic over multiple WAN connections

Hotspot: Internal/external Radius server, captive portal, built in customizable landing page

SSHFS: Possibility to mount remote file system via SSH protocol

SECURITYAuthentication: Pre-shared key, digital certificates, X.509 certificates

Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN: Port and tag based VLAN separation

Mobile quota control: Custom data limits for SIM card

WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPNOpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods

OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)

GRE: GRE tunnel

PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3 support

Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN: Method of building scalable IPsec VPNs

SSTP: SSTP client instance support

ZeroTier: ZeroTier VPN client support

WireGuard: WireGuard VPN client and server support

MODBUS TCP SLAVEID range: Respond to one ID in range [1;255] or any

Allow Remote Access: Allow access through WAN

Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTERSupported functions: 01, 02, 03, 04, 05, 06, 15, 16

Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVERProtocol: HTTP(S), MQTT, Azure MQTT

MQTT GATEWAYMQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3Supported modes: TCP Master, DNP3 Outstation

MONITORING MANAGEMENTWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA: Firmware update from server, automatic notification

SSH: SSH (v1, v2)

SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off

TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT: MQTT Broker, MQTT publisher

SNMP: SNMP (v1, v2, v3), SNMP Trap

JSON-RPC: Management API over HTTP/HTTPS

MODBUS: MODBUS TCP status/control

RMS: Teltonika Remote Management System (RMS)

IOT PLATFORMSCloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICSCPU: Mediatek MIPS 24Kc 580 MHz

RAM: 128 MB, DDR2

FLASH storage: 16 MB, SPI Flash

FIRMWARE / CONFIGURATIONWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point

FOTA: Update FW

RMS: Update FW/configuration for multiple devices at once

Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATIONOperating system: RutOS (OpenWrt based Linux OS)

Supported languages: Busybox shell, Lua, C, C++

Development tools: SDK package with build environment provided

INPUT / OUTPUTInput: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Events: Email, RMS, SMS

I/O juggler: Allows to set certain I/O conditions to initiate event

POWERConnector: 4-pin industrial DC power socket

Input voltage range: 9 - 30 VDC, reverse polarity protection; surge protection > 31 VDC 10us max

PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC

Power consumption: < 6.5 W Max

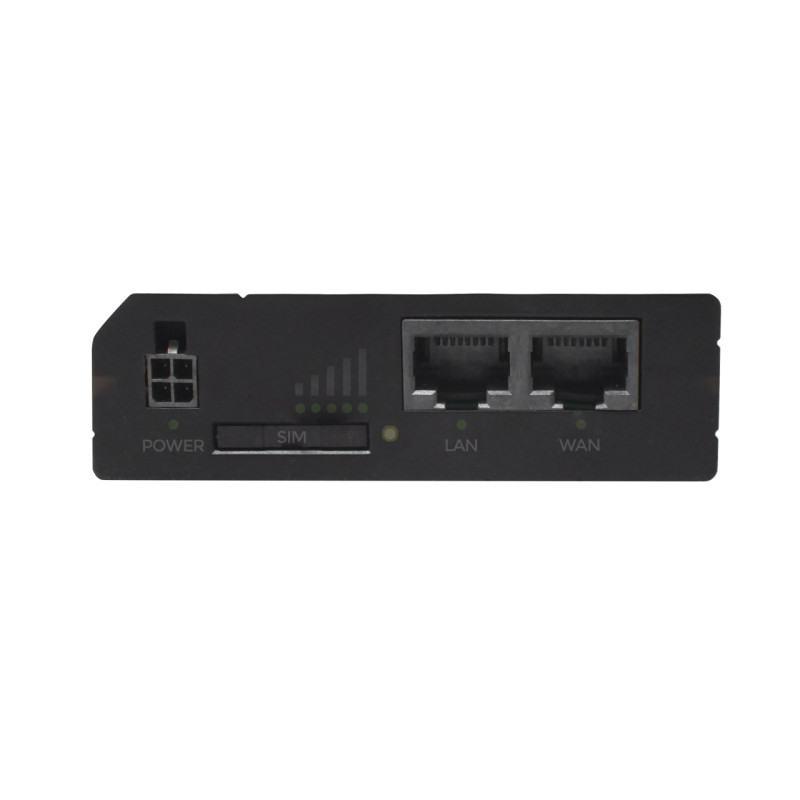

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)Ethernet: 2 x RJ45 ports, 10/100 Mbps

I/O's: 1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED

SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder

Power: 1 x 4-pin power connector

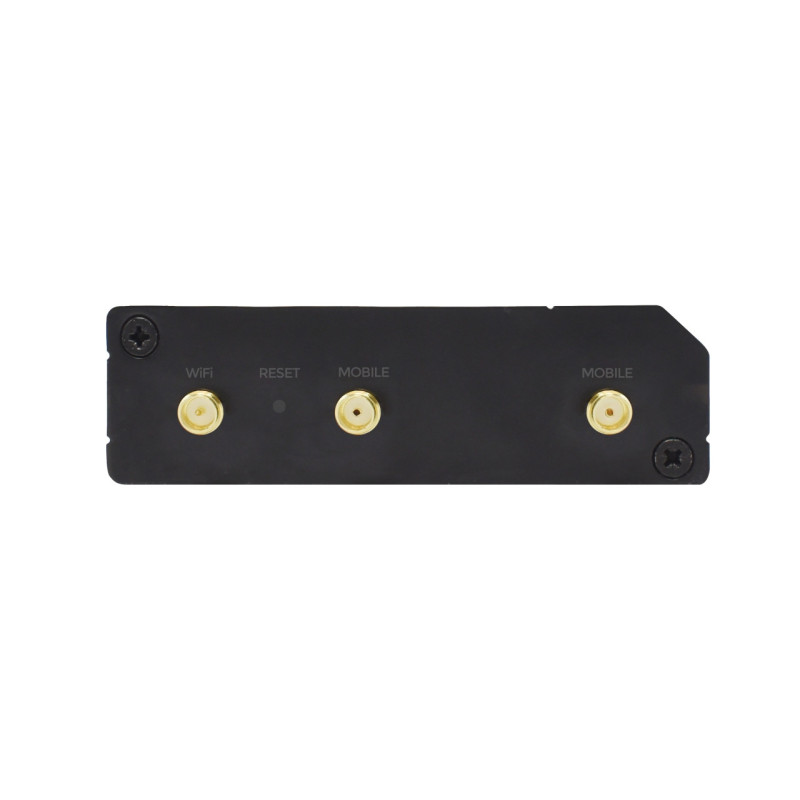

Antennas: 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors

Reset: Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATIONCasing material: Aluminium housing, plastic panels

Dimensions (W x H x D): 83 x 25 x 74 mm

Weight: 125 g

Mounting options: Bottom and sideways DIN rail mounting slots

OPERATING ENVIRONMENTOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

REGULATORY TYPE APPROVALSRegulatory: CE/RED, UKCA, CB

EMI IMMUNITYIMMUNITY Standards: EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019

ESD: EN 61000-4-2:2009

RS: EN 61000-4-3:2020

EFT: EN 61000-4-4:2012

Surge immunity (AC Power Line): EN 61000-4-5:2014+A1:2017

CS: EN 61000-4-6:2014

DIP: EN IEC 61000-4-11:2020

RFStandards: EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1

SAFETYStandards: EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018
