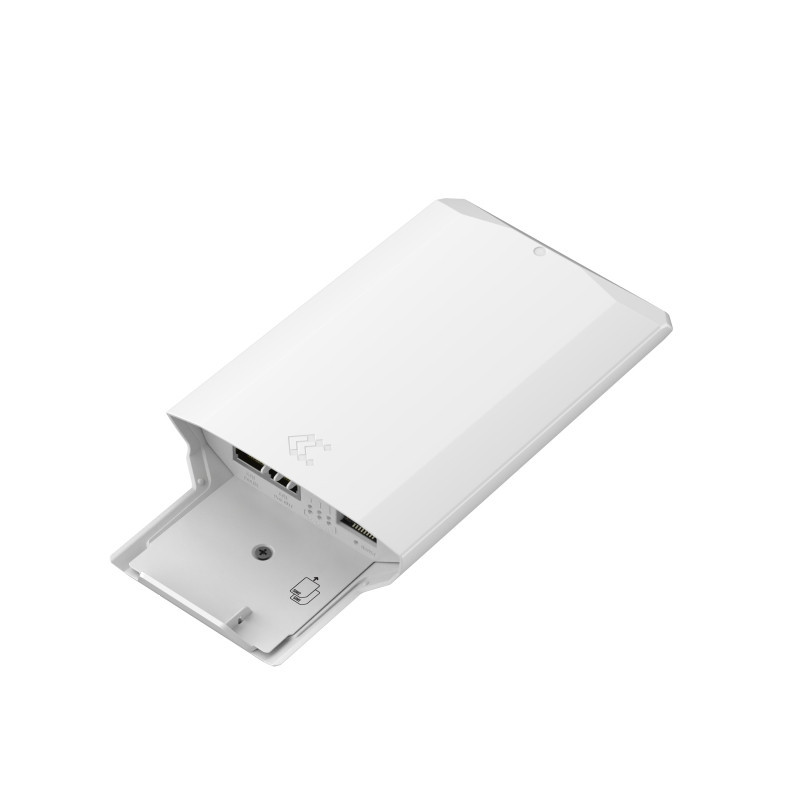

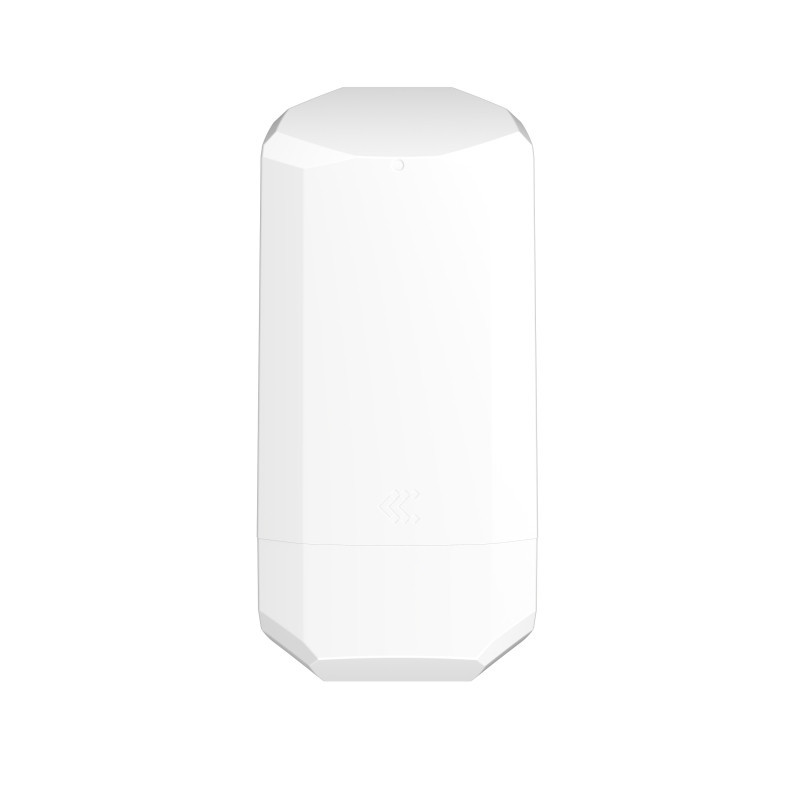

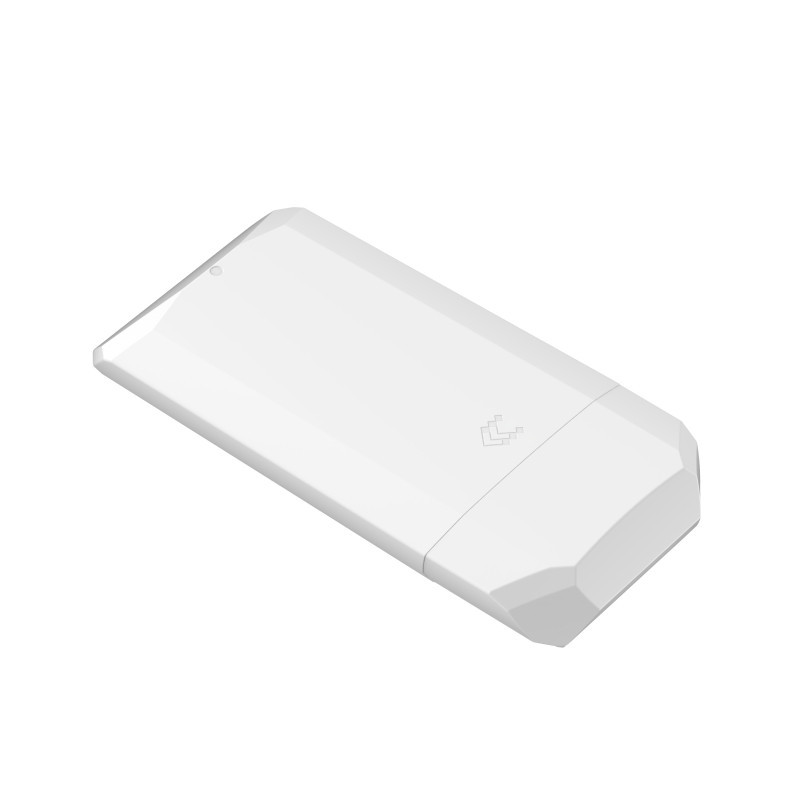

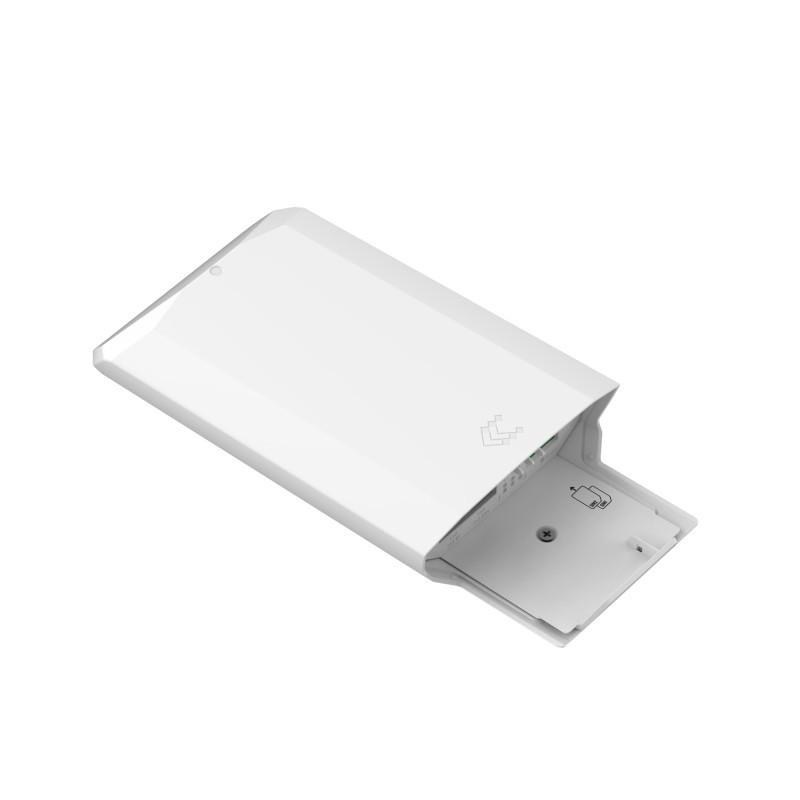

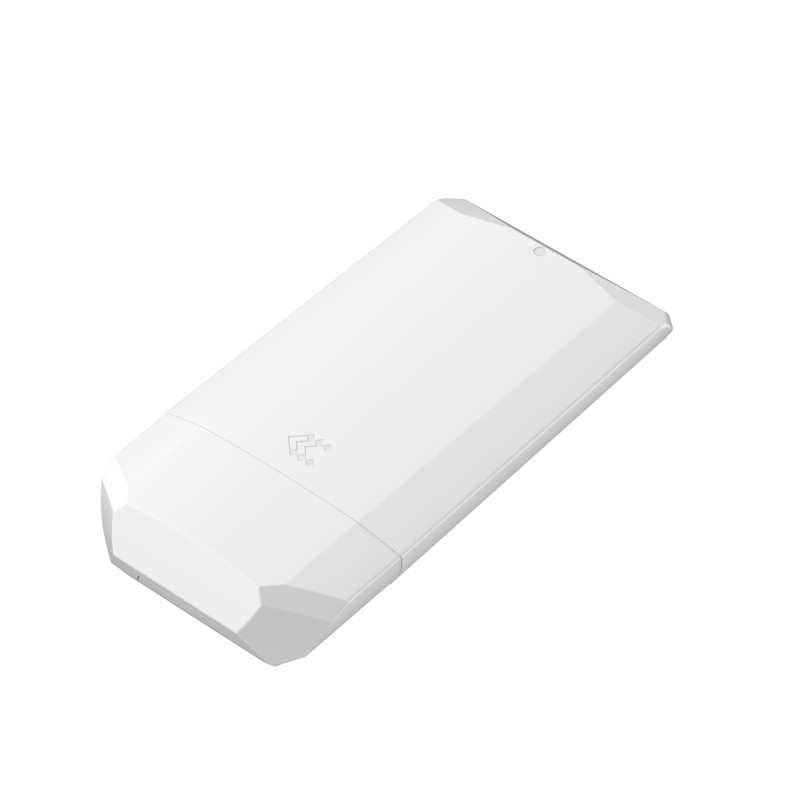

TELTONIKA lauko 5G maršrutizatorius

OTD500 yra patvarus 5G lauko maršrutizatorius, sukurtas užtikrinti patikimam ryšiui atšiauriose aplinkose. IP55 klasės korpusas atsparus lauko sąlygoms, o integruotas tvirtinimo laikiklis padeda greitai ir paprastai sumontuoti. Dviguba SIM ir eSIM su automatiniu perjungimu suteikia išskirtinį tinklo lankstumą ir atsparumą trikdžiams. Gigabit Ethernet prievadai su PoE-in ir PoE-out supaprastina diegimą, sujungdami maitinimą ir duomenis viename kabelyje. Pilnai suderinamas su RMS, OTD500 yra lengvai valdomas ir stebimas per nuotolį, todėl tai yra idealus sprendimas lauko ryšio infrastruktūrai.

MobileMobile module: 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE - LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL

3GPP Release: Release 16

eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD: Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list: Operator black/white list (by country or separate operators)

Band management: Band lock, Used band status display

SIM idle protection service: When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN: Auto APN

Bridge: Direct connection (bridge) between mobile ISP and device on LAN

Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Framed routing: Framed routing: support an IP network behind 5G UE

EthernetETHERNET: 2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE INPoE ports: 1 x PoE In

PoE standards: 802.3af/at

POE OUTPoE ports: 1 x PoE Out

PoE standards: 802.3af Alternative B

PoE Max Power per Port (at PSE): 15 W Max (power supply unit dependent)

NetworkRouting: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall: Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page: View all your Firewall statistics, rules, and rule counters

Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology: Visual representation of your network, showing which devices are connected to which other devices

DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS: Supported > 25 service providers, others can be configured manually

DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup: VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing: Balance Internet traffic over multiple WAN connections

Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

SSHFS: Possibility to mount remote file system via SSH protocol

VRF support: Initial virtual routing and forwarding (VRF) support

Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

SecurityAuthentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS users authentication, IP login attempts block, time-based login blocking, built-in random password generator

Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN: Port and tag-based VLAN separation

Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control: Flexible access control of SSH, Web interface, CLI and Telnet

TPM: Identification and authentication module, TPM 2.0 standard

SSL certificate generation: Let's Encrypt and SCEP certificate generation methods

802.1x: Port-based network access control server

VPNOpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE: GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP: SSTP client instance support

ZeroTier: ZeroTier VPN client support

WireGuard: WireGuard VPN client and server support

Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UASupported modes: Client, Server

Supported connection types: TCP

MODBUSSupported modes: Server, Client

Supported connection types: TCP

Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVERProtocol: HTTP(S), MQTT, Azure MQTT

Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT GatewayModbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3Supported modes: Station, Outstation

Supported connection: TCP

DLMSDLMS Support: DLMS - standard protocol for utility meter data exchange

Supported modes: Client

Supported connection types: TCP

COSEM: Allows to scan meter COSEM objects for automatic detection and configuration

APITeltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring ManagementWEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA: Firmware update from server, automatic notification

SSH: SSH (v1, v2)

Email: Receive email message status alerts of various services

SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT: MQTT Broker, MQTT publisher

SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC: Management API over HTTP/HTTPS

RMS: Teltonika Remote Management System (RMS)

IoT PlatformsThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System CharacteristicsCPU: MediaTek, Dual-core, 880 MHz, MIPS1004Kc

RAM: 256 MB, DDR3

FLASH storage: 16 MB serial NOR flash, 256 MB serial NAND flash

Firmware / ConfigurationWEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA: Update FW

RMS: Update FW/configuration for multiple devices at once

Keep settings: Update FW without losing current configuration

Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmaware CustomisationOperating system: RutOS (OpenWrt based Linux OS)

Supported languages: Busybox shell, Lua, C, C++, and Python, Java in Package manager

Development tools: SDK package with build environment provided

GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs

Package Manager: The Package Manager is a service used to install additional software on the device

PowerConnector: RJ45 Socket

Input voltage range: 42.5-57.0 VDC, reverse polarity protection, voltage surge/transient protection

Input voltage range for PoE: 42.5-57.0 VDC, reverse polarity protection, voltage surge/transient protection

Power consumption: Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W

Physical InterfacesEthernet: 2 x RJ45 ports, 10/100/1000 Mbps

Status LEDs: 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs

SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V

Power: RJ45, PoE In, 42.5 - 57.0 VDC

Antennas: 4 x internal antennas

Antennas specifications: 4 x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional

Reset: Reboot/User default reset/Factory reset button

Physical SpecificationCasing material: Plastic (PC+ASA)

Dimensions (W x H x D): 110 x 49.30 x 235 mm

Weight: 385 g

Mounting options: Mounting bracket (for vertical flat surface or pole mounting)

Operating EnvironmentOperating temperature: -40 °C to 55 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP55

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, CB, EAC, UCRF, WEEE

EMC Emissions ImmunityStandards: EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2: 2019 + A1:2021; EN 61000-3-3: 2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-52 V1.2.1

ESD: EN 61000-4-2:2009

Radiated Immunity: EN IEC 61000-4-3:2020

EFT: EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017

CS: EN 61000-4-6:2014

DIP: EN 61000-4-11:2020

RFStandards:

EN 301 908-1 V13.1.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.1.1

EN 301 908-25 V15.1.1_15.0.6

SafetyStandards:

CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
