TELTONIKA 8 LAN PoE+ prievadai 10 / 100 Mbps pramoninis nevaldomas komutatorius, montuojamas ant DIN bėgelio

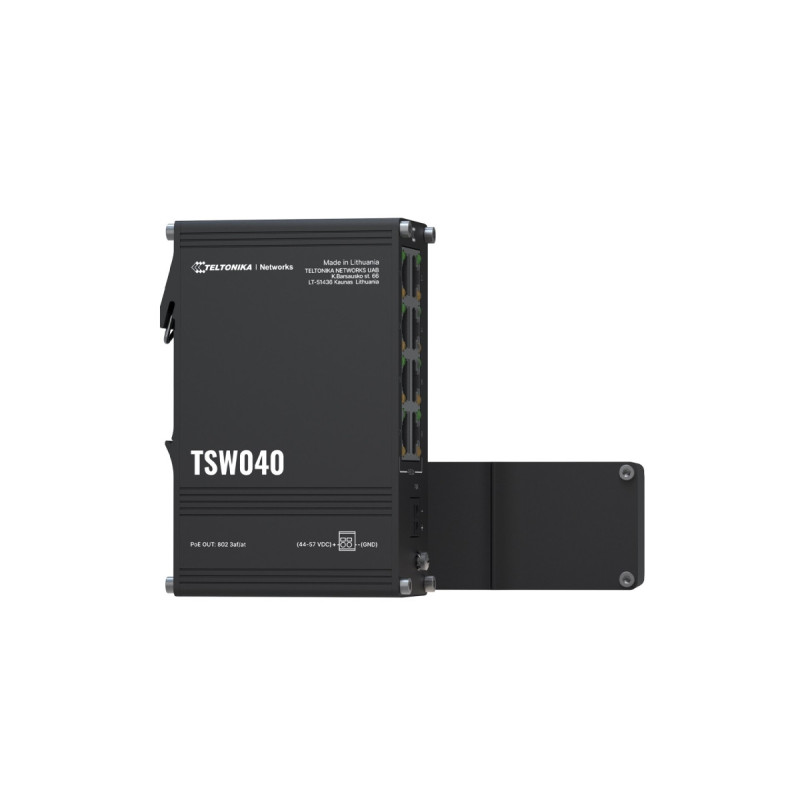

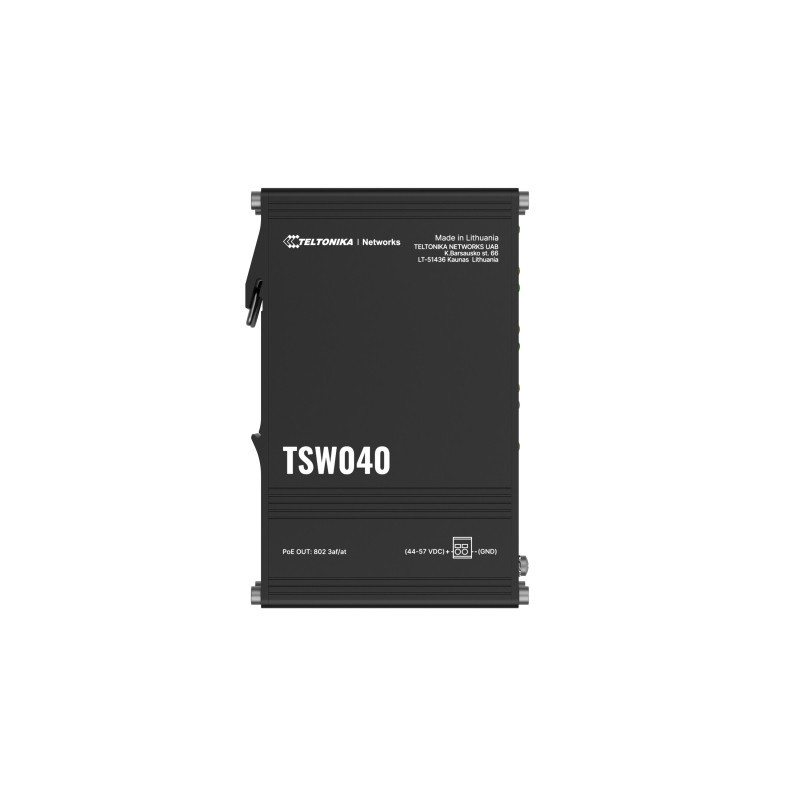

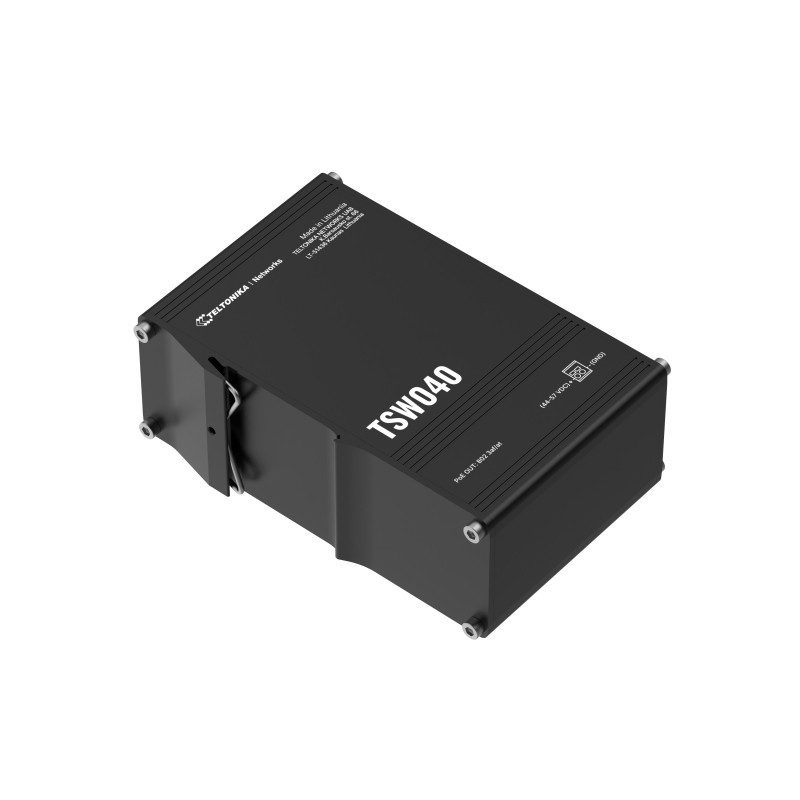

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

EthernetEthernet: 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUTPoE ports: Port 1 - 8

PoE standards: 802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B

PoE Max Power per Port (at PSE): 30 W

Total PoE Power Budget (at PSE): 240 W

Performance SpecificationsBandwidth (Non-blocking): 20 Gbps

Packer buffer: 128 KB

MAC address table size: 2K entries

Jumbo frame support: 9216 bytes

PowerConnector: 2-pin industrial DC power socket

Input voltage range: 7 - 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

Power consumption: Idle: 1 W / Max: 2 W / PoE Max: 246 W

Physical InterfacesEthernet: 8 x RJ45 ports, 10/100 Mbps

Status LEDs: 1 x Power LED, 16 x ETH status LEDs

Power: 1 x 2-pin industrial DC power socket

Other: 1 x Grounding screw

Physical SpecificationCasing material: Anodized aluminum housing and panels

Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm

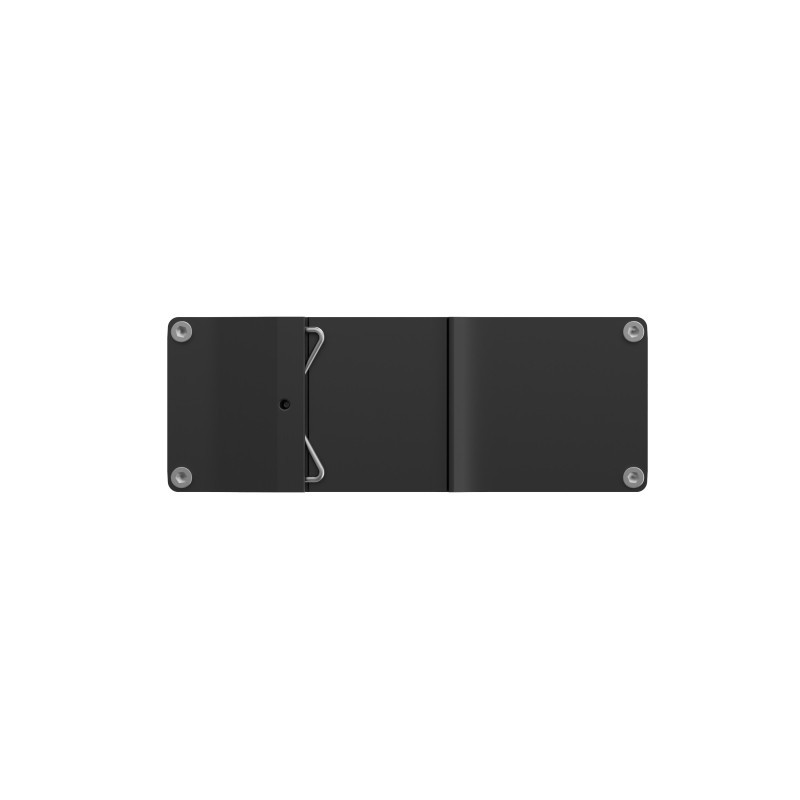

Mounting options: Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Weight: 280 g

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

Regulatory Type ApprovalsRegulatory: CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF

EMC Emissions ImmunityStandards: EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;

ESD: EN 61000-4-2:2009

Radiated Immunity: EN IEC 61000-4-3:2020

EFT: EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017

CS: EN 61000-4-6:2014

DIP: EN IEC 61000-4-11:2020

SafetyStandards: IEC 62368-1:2018
