TELTONIKA 4G LTE Cat M1 sekiklis su OBD OEM duomenų nuskaitymas global aprėpties zonai

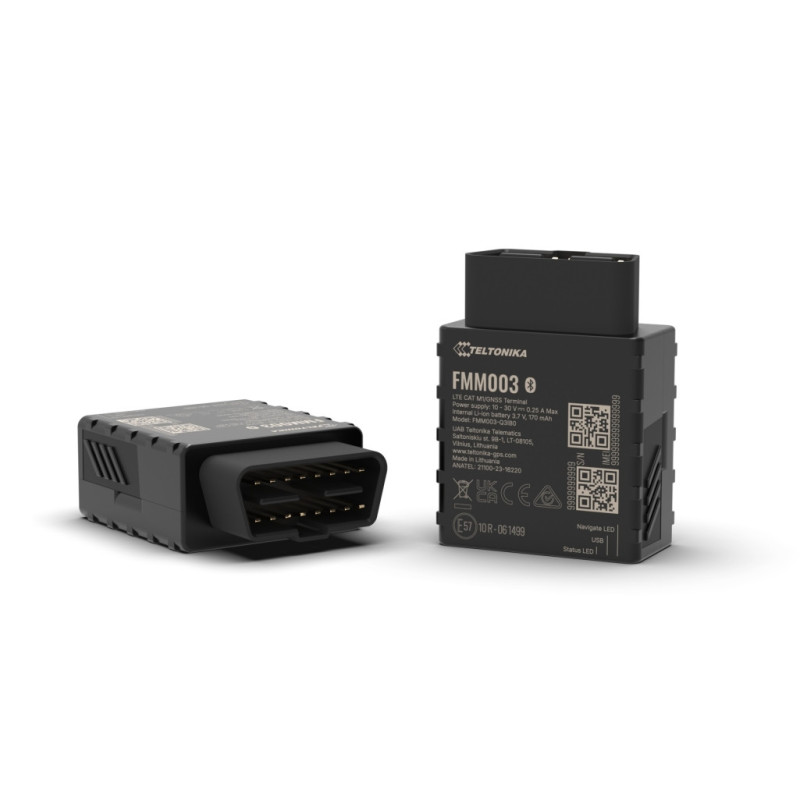

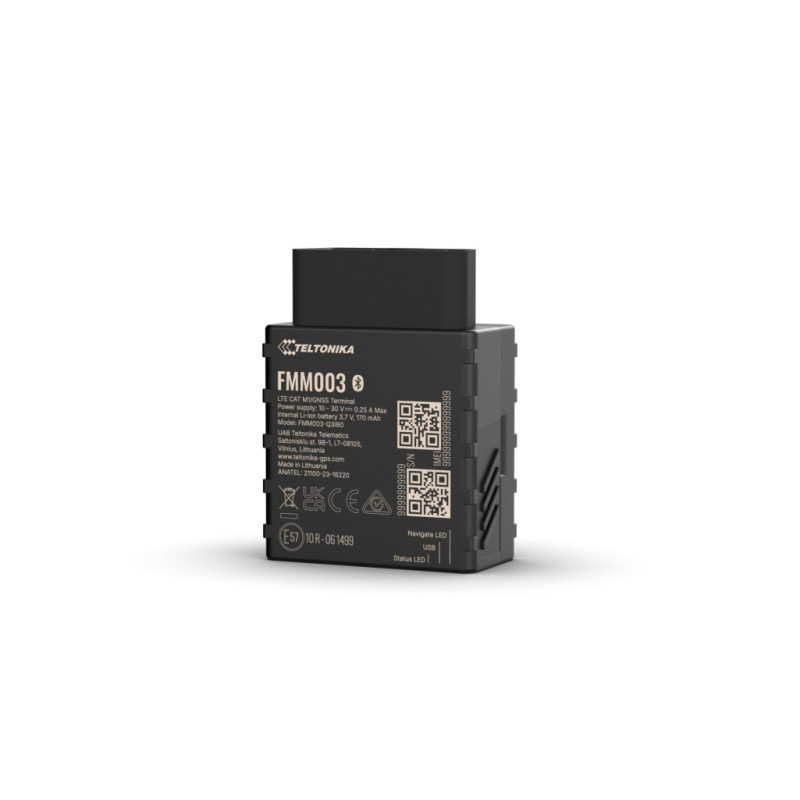

FMM003 is a small plug and play device with LTE CAT M1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMM003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you do not need to guess no more, now you know what data can be read from a specific vehicle. It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. Device supports various Bluetooth® LE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth® which expands its already rich set of features.

Module

Name: Quectel BG95-M3, Teltonika TM2500

Technology: LTE CAT M1/CAT NB2/EGPRS/GNSS/BLUETOOTH® LE

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver:

33 tracking channels

99 acquisition channels

Tracking sensitivity: -165 dBM

Position Accuracy: < 2.5 m CEP

Velocity Accuracy: < 0.1 m/s (within +/- 15% error)

Hot start: < 1 s

Warm start: < 25 s

Cold start: < 35 s

Cellular

Technology: LTE CAT M1/CAT NB1/EGPRS

2G bands: BG95: B2/B3/B5/B8

4G LTE Cat M1 bands:

BG95:

CAT M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85

CAT NB2: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B2/B28/B66/B71/B85

Data transfer

BG95:

LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)

GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)

Data support: SMS (text/data)

Transmit power: Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 5 for LTE-TDD: 20±2dBm Class 5 for LTE-FDD: 20±2dBm

Power

Input voltage range: 10 - 30 V DC with overvoltage protection

Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Internal fuse: 3A, 125V

Power consumption:

At 12V < 3 mA (Ultra Deep Sleep)

At 12V < 5 mA (Deep Sleep)

At 12V < 16 mA (Online Deep Sleep)

At 12V < 18 mA (GPS Sleep)

At 12V < 33 mA (nominal with no load)

At 12V < 2A Max. (with full Load / Peak)

Bluetooth® Technology

Specification: 4.0 + LE

Supported peripherals: Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

Dimensions: 67,2 x 49,6 x 25 mm (L x W x H)

Weight: 63 g

Operating environment

Operating temperature (without battery): -40 °C to +85 °C

Storage temperature (without battery): -40 °C to +85 °C

Operating humidity: 5% to 95% non-condensing

Ingress Protection Rating: IP41

Battery charge temperature: 0 °C to +45 °C

Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature:

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Interface

Connection: OBDII Socket

GNSS antenna: Internal High Gain

Cellular antenna: Internal High Gain

USB: 2.0 Micro-USB

LED indication: 2 status LED lights

SIM: Micro-SIM

Memory: 128MB internal flash memory

OBD Interface

Data: HS CAN, MS CAN, SW CAN, K-line

Data reading: OEM Fuel level, odometer and up to 32 vehicle onboard parameters, supported OBD protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 14229 (UDS)

J2819 (VW TP2.0)

Features

Sensors: Accelerometer

Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetoot® wireless technology)

SMS: Configuration, Events, Debug

GPRS commands: Configuration, Debug

Time Synchronization: GNSS, NITZ, NTP

Fuel monitoring: OBD II

Ignition detection: Accelerometer, External Power Voltage, Engine RPM

Certification & approvals

Regulatory: CE/RED/UKCA, E-Mark, RoHS, REACH, RCM
