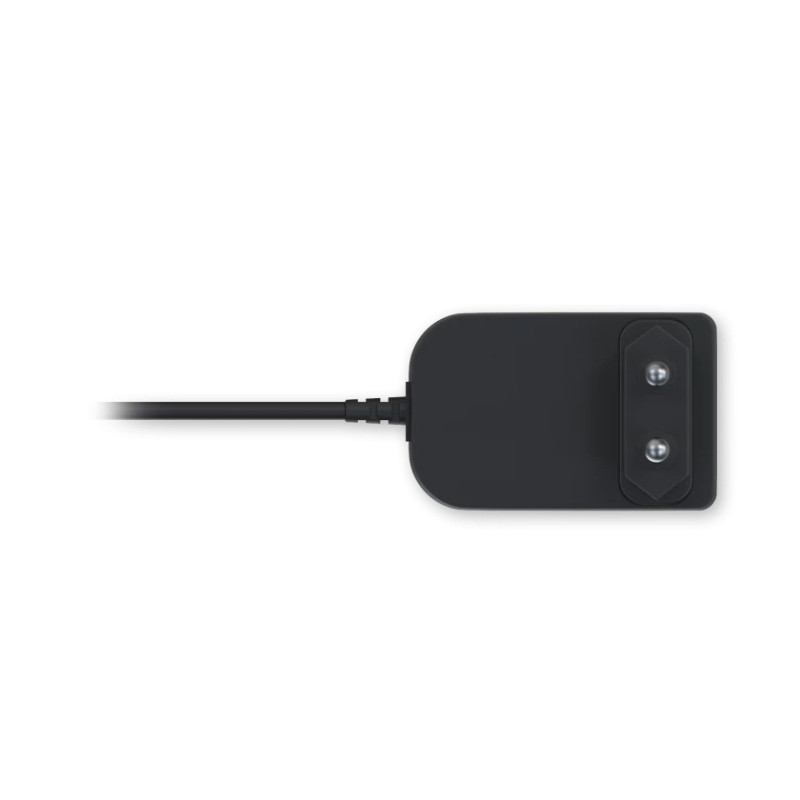

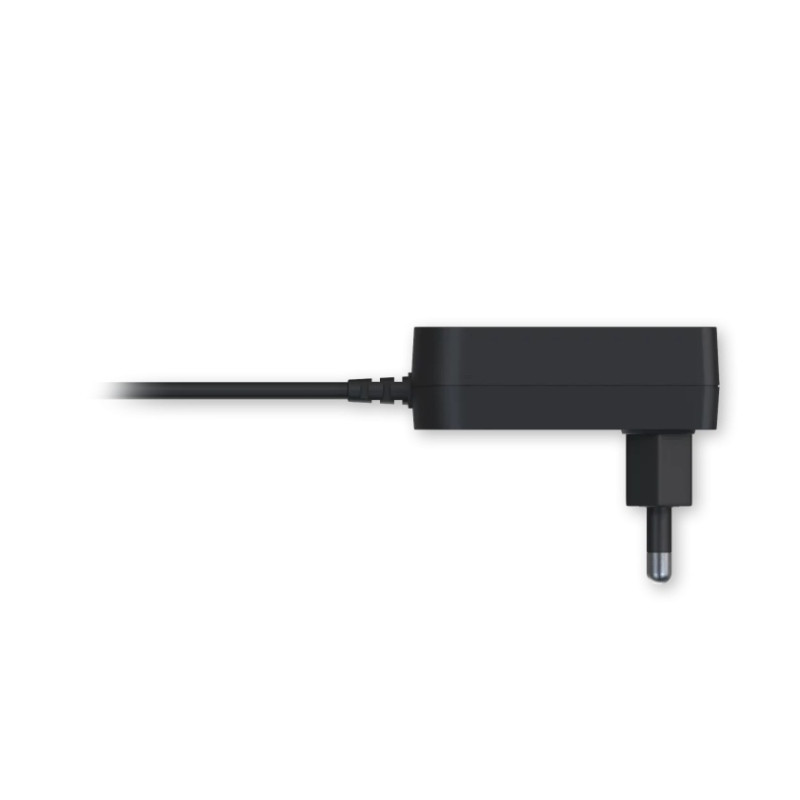

TELTONIKA 4 kontaktų 24 W maitinimo šaltinis Teltonika maršrutizatoriams, ES tipo

Suderinama su RUTC50, RUTX12, RUTX14 maršrutizatoriais. BAT120

GENERAL

Input voltage: 100 - 240 VAC

Input frequency: 50 / 60 Hz

Input current: 0.8 A

Input connector: EU (Type C)

Output voltage: 12 VDC

Output current: 2.0 A

Output connector: 4-pin, 3 mm pitch

Weight: 115 g

ADDITIONAL

Input voltage range: 90 - 264 VAC

Input frequency range: 47 - 63 Hz

Maximum input inrush current: 60 A

Output voltage maximum deviation: 1.4 - 12.6 VDC

Short circuit protection: Yes

HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC

MTBF: 30000 h

PSU efficiency standard:DoE Level VI

Certification:

Safety: EN 62368-1:2014+A11:2017

EMC: EN 55032:2015, Class B, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013

Energy efficiency: EN 50563:2011+A1:2013, EN 50564:2011, 10 CFR 430 Appendix Z: 2015
