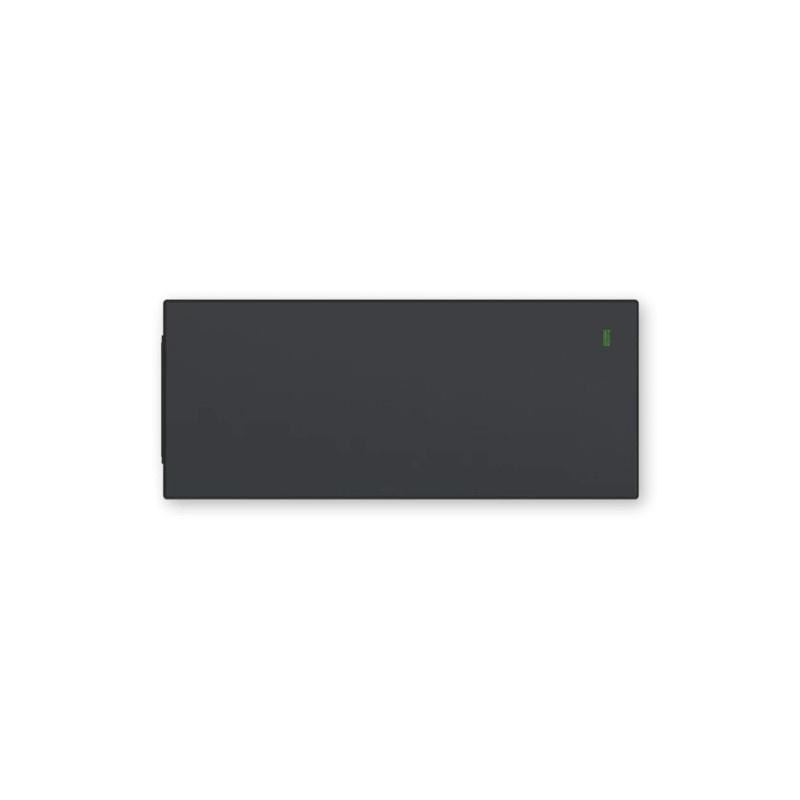

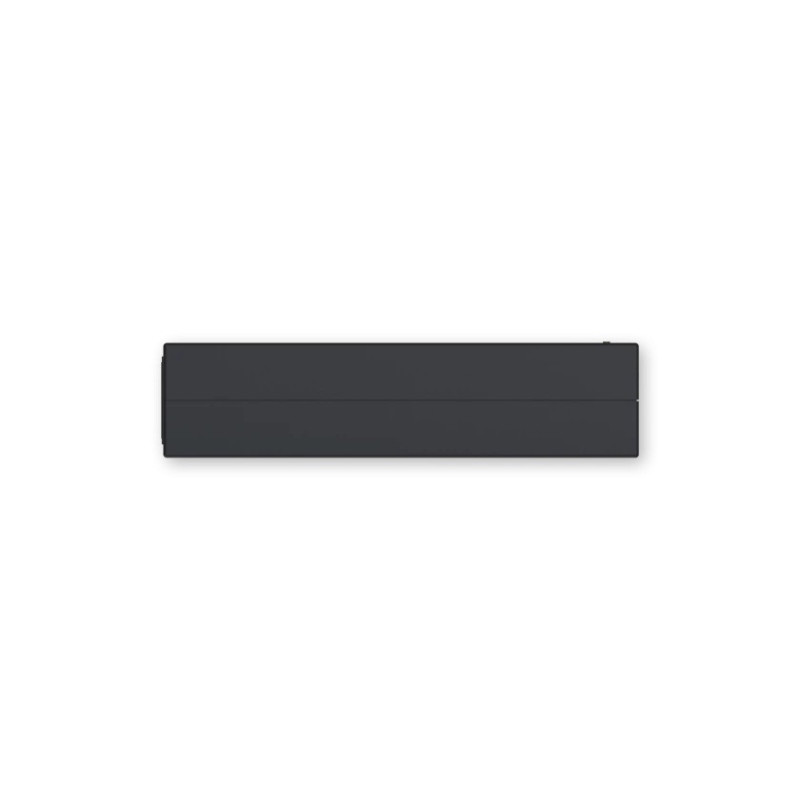

TELTONIKA 2 kontaktų 62 W maitinimo šaltinis, ES tipo

Compatible with TSW040, TSW200, TSW202 TSW212 switches.

GENERALInput voltage: 100 - 240 VAC

Input frequency: 50 / 60 Hz

Input current: 1.5 A

Input connector: EU (Type C)

Output voltage: 48 VDC

Output current: 1.3 A

Output connector: 2-pin, with cord end terminals

Weight: 305 g

ADDITIONALInput voltage range: 90 - 264 VAC

Input frequency range: 47 - 63 Hz

Maximum input inrush current: 50 A

Output voltage maximum deviation: 45.6 - 50.4 VDC

Short circuit protection: Yes

HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC

MTBF: 50000 h

Certification:

Safety: EN 61558-1:2005/A1:2009, EN 61558-2-16:2009/A1:2013 (CB Scheme)

EMC: EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015
