MIKROTIK SXTsq serijos lauko belaidis įrenginys su integruota antena, SXTsq Lite2

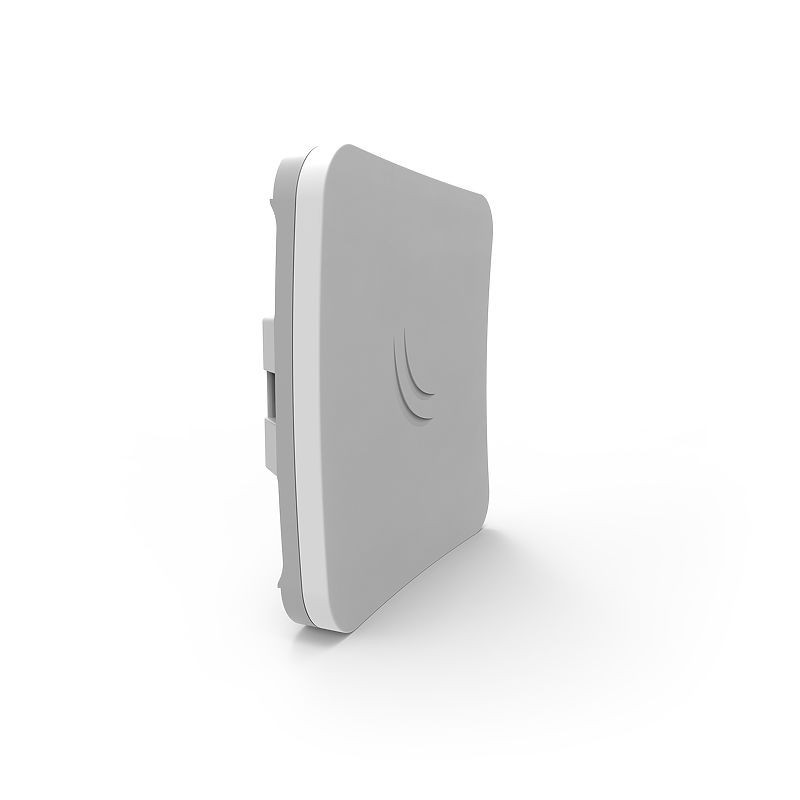

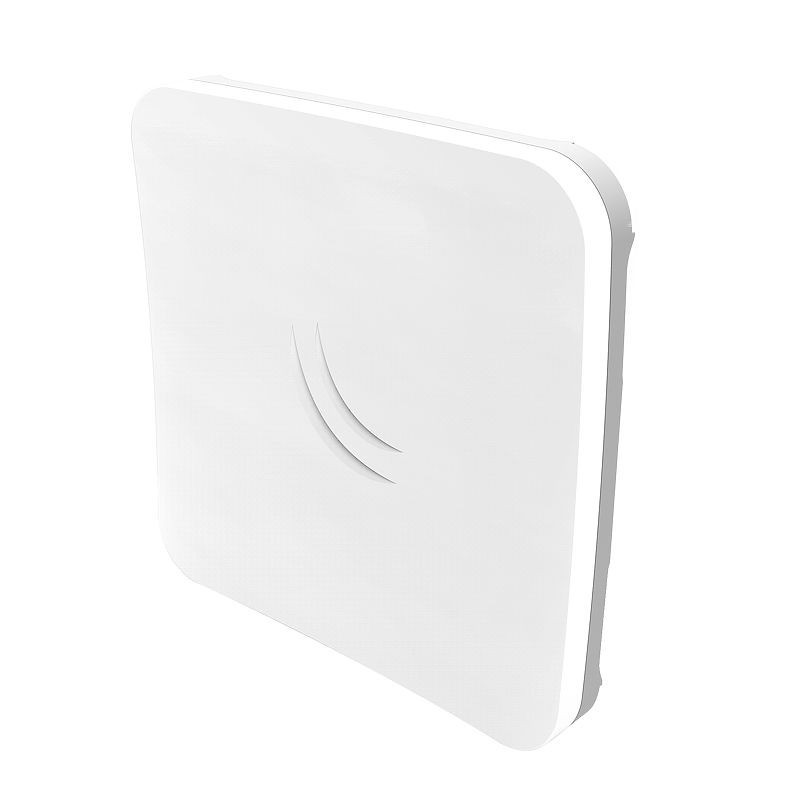

The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.

The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

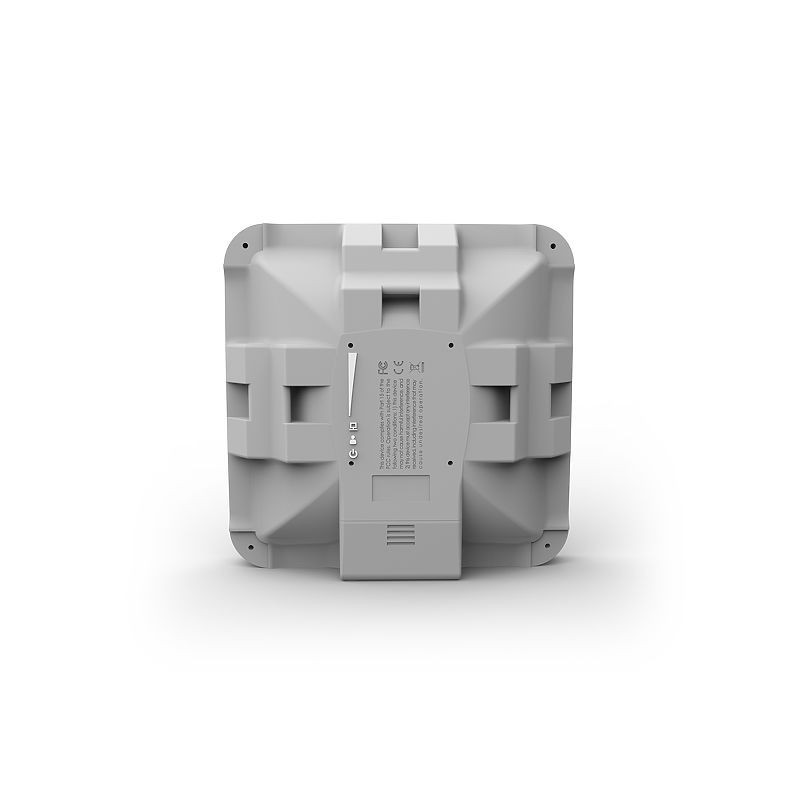

The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100 Mbit Ethernet port. There is also an easily accessilble grounding connection to protect it against lightning.

Product code: RBSXTsq2nD

Architecture: MIPSBE

CPU: QCA9533

CPU core count: 1

CPU nominal frequency: 650 MHz

Dimensions: 129 x 129 x 34 mm, package: 255 x 180 x 45 mm

Weight: unit - 295 g; package - 492 g

Operating System: RouterOS (License level 3)

Size of RAM: 64 MB

Storage size: 16 MB

Storage type: FLASH

Tested ambient temperature: -40°C .. +70°C

Powering

Max Power consumption: 5W

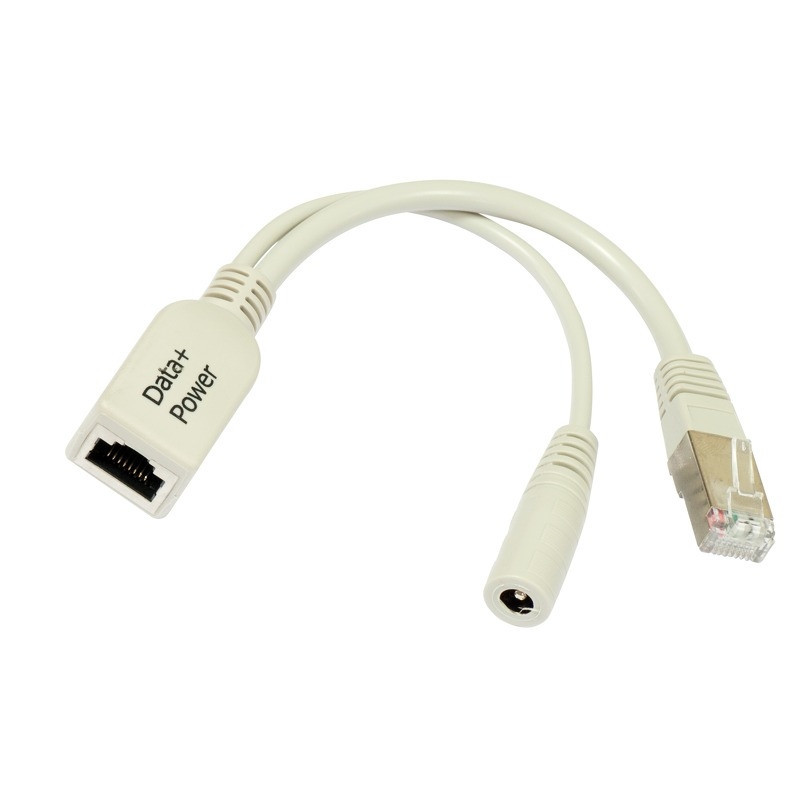

PoE in: Passive PoE

PoE in input Voltage: 10-30 V

Number of DC inputs: 1 (PoE-IN)

Wireless

Operating frequency: 2412 - 2484 MHz

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n

Antenna gain dBi for 2.4 GHz: 10

Wireless 2.4 GHz chip model: QCA9533

Antenna beam width: 60°

Ethernet

10/100 Ethernet ports: 1
