MIKROTIK stalinis komutatorius su vienu gigabito eterneto prievadu ir aštuoniais SFP+ 10 Gbps prievadais

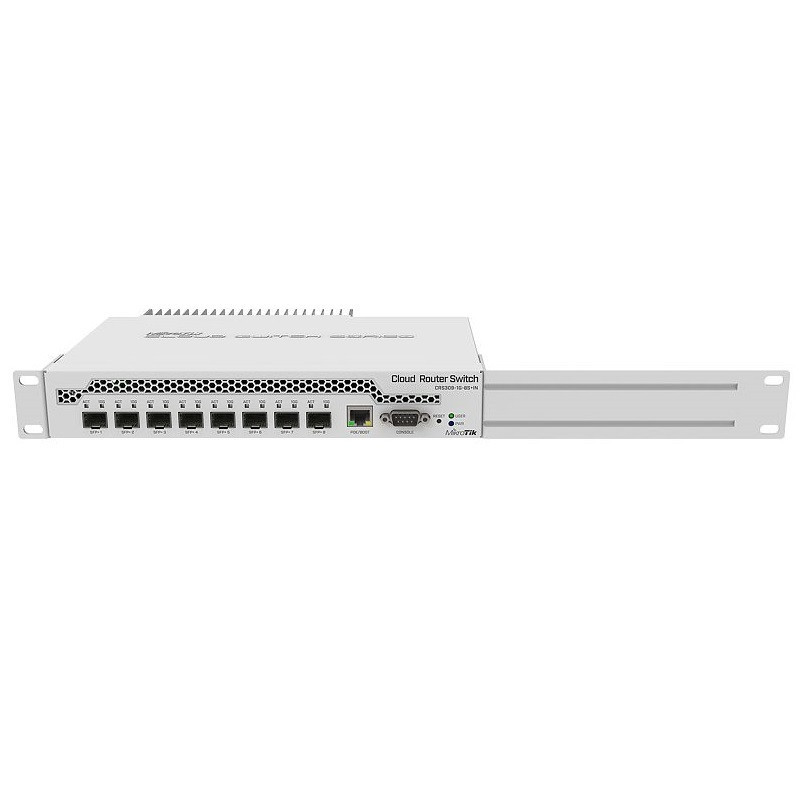

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

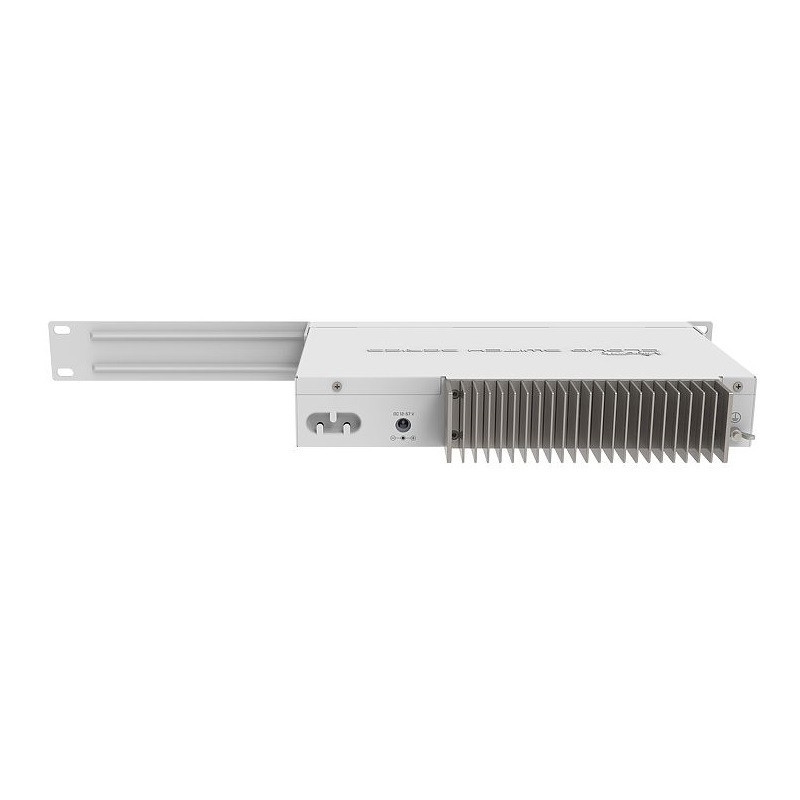

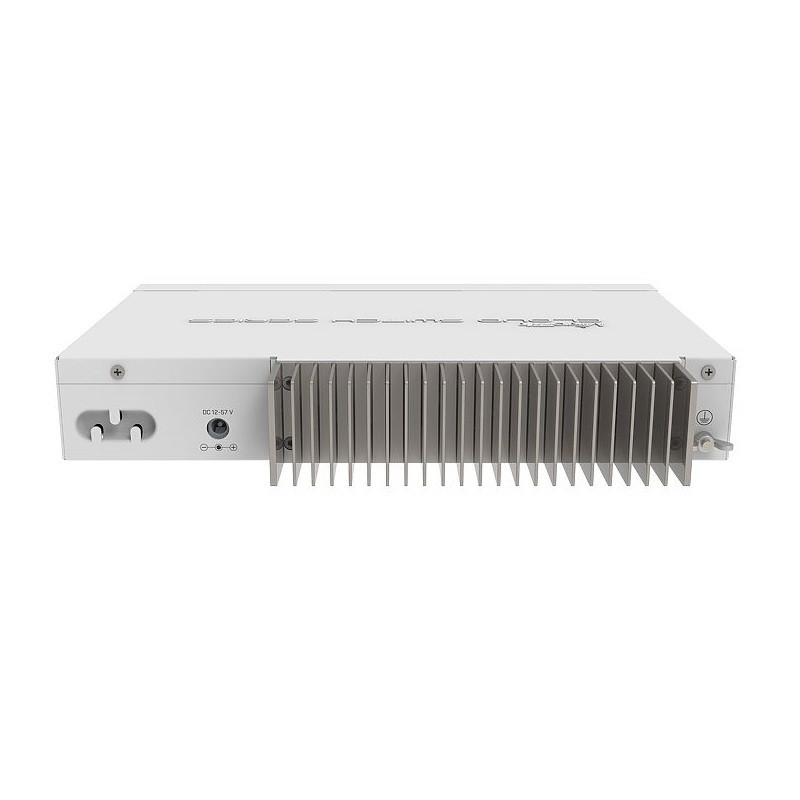

The compact and sleek metallic enclosure also acts as a heatsink, making this device passively cooled - no fan noise and no dust accumulation inside. Special rackmount ears for installing unit into the standard rack are provided.

Product code: CRS309-1G-8S+IN

Architecture: ARM 32bit

CPU: 98DX8208

CPU core count: 2

CPU nominal frequency: 800 MHz

Dimensions: 141 x 115 x 28 mm

Operating System: RouterOS / SwitchOS (Dual boot) (License level 5)

Size of RAM: 512 MB

Storage size: 16 MB

Storage type: FLASH

Tested ambient temperature: -40°C to 70°C

Powering

PoE in: 802.3af/at

PoE in input Voltage: 18-57 V

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 12-57 V

Max power consumption: 23 W

Max power consumption without attachments: 17 W

Ethernet

10/100/1000 Ethernet ports: 1

Fiber

SFP+ ports: 8

Peripherals

Serial port: RS232

Other

CPU temperature monitor: Yes

Included parts

Power adapter: 24 V 1.2 A

Screw kit

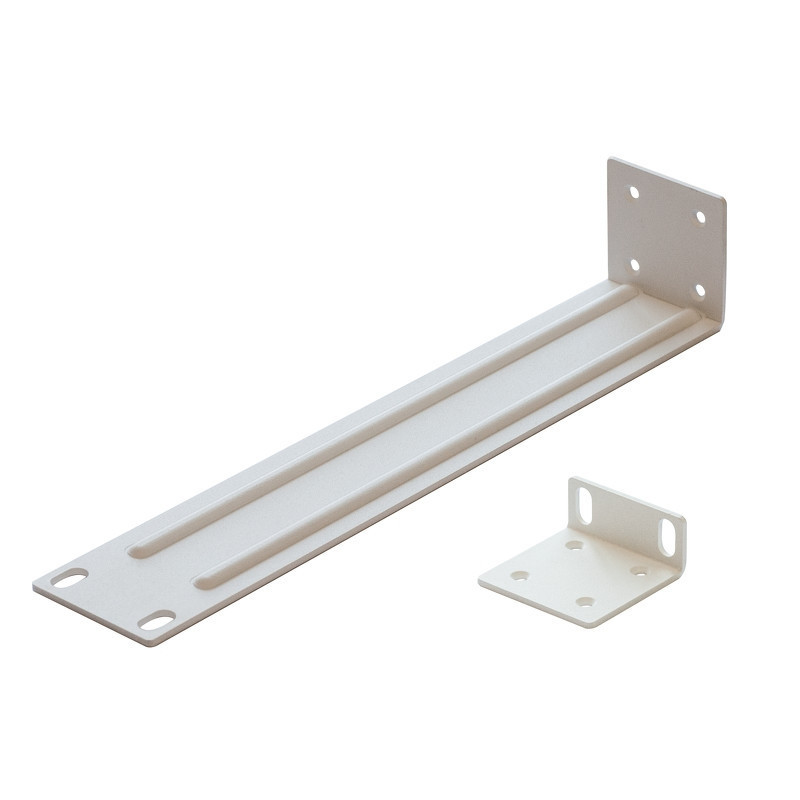

Rack ears
