MIKROTIK RouterBOARD OmniTIK 5 PoE ac

We are glad to introduce a significant upgrade to our popular OmniTik 5GHz access points!

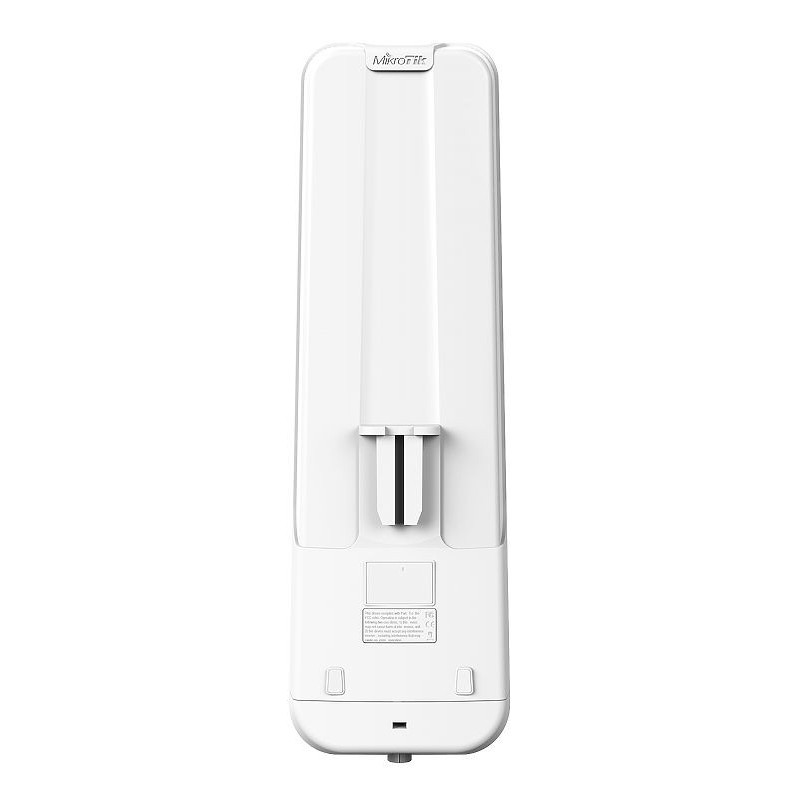

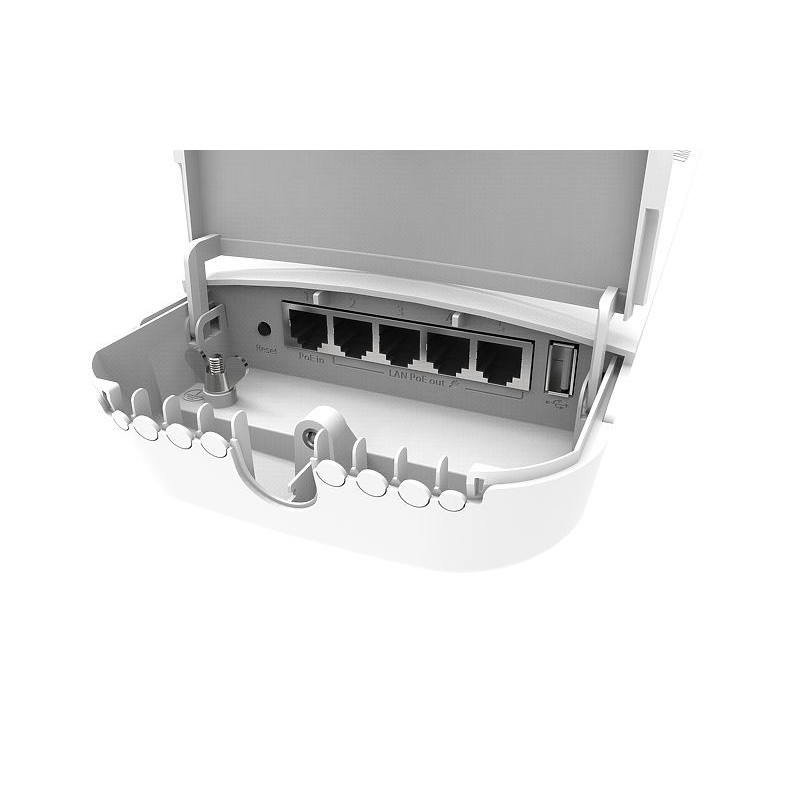

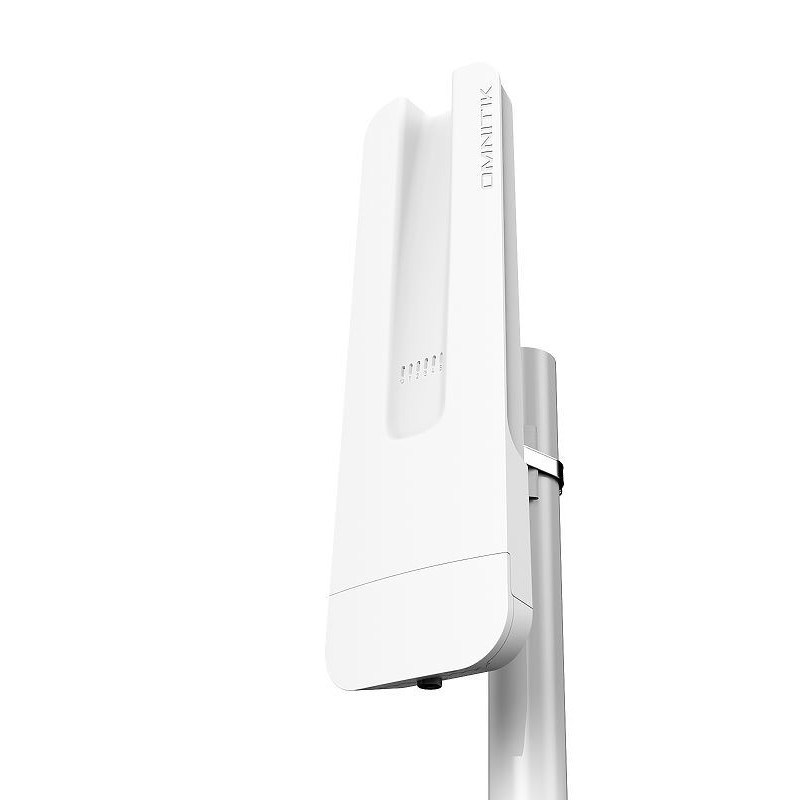

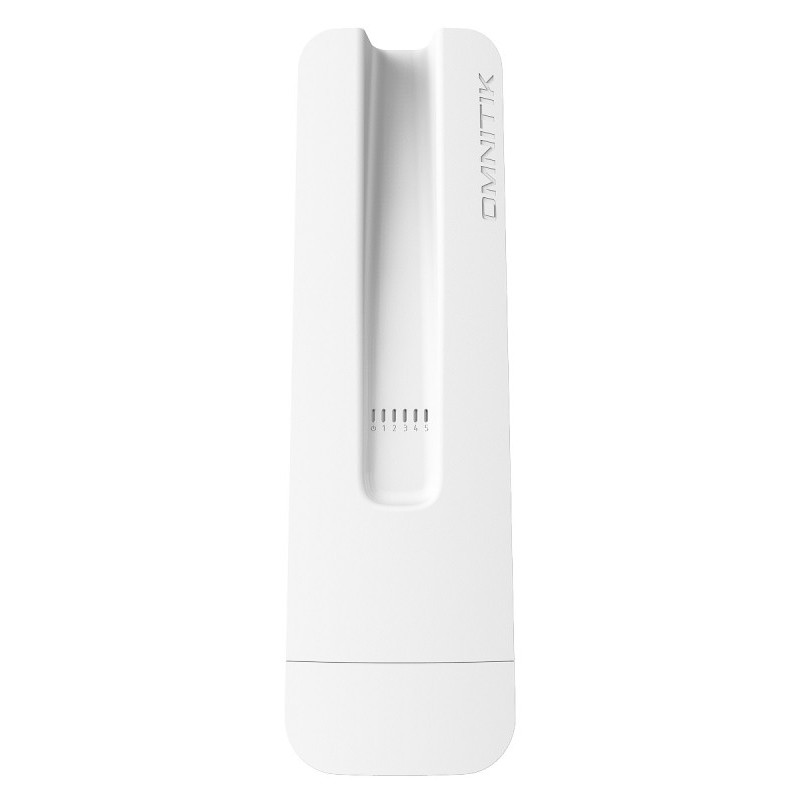

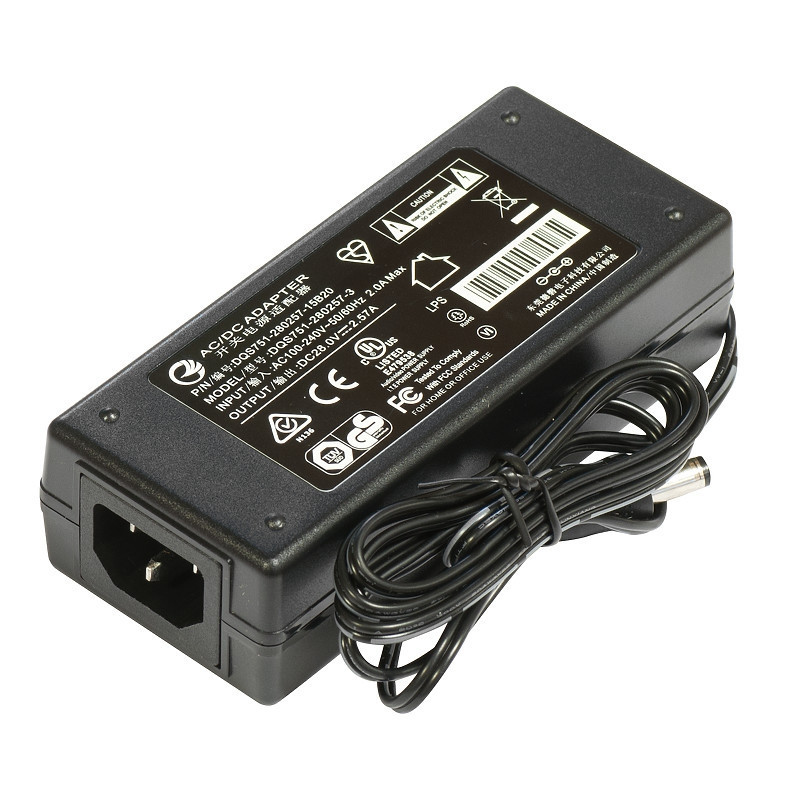

OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It's equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

It also supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 48V devices (like IP camera), if 48V input is used.

Product code RBOmniTikPG-5HacD

CPU nominal frequency 720 MHz

CPU core count 1

Size of RAM 128 MB

10/100/1000 Ethernet ports 5

Wireless standards 802.11a/n/ac

Wireless chip model QCA9892

Number of USB ports 1

PoE in Yes

PoE out 802.3at

Supported input voltage 12 V - 57 V

Voltage Monitor Yes

PCB temperature monitor Yes

Dimensions 416 x 129 x 58 mm

Operating System RouterOS

License level 4

Antenna gain DBI 7.5

CPU QCA9557

Max Power consumption 18W

USB Power Reset Yes

USB slot type USB type A

Number of chains 2

Storage type FLASH

Storage size 16 MB
