MIKROTIK RouterBOARD NetMetal 5

This RB922UAGS-5HPacD-NM version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas

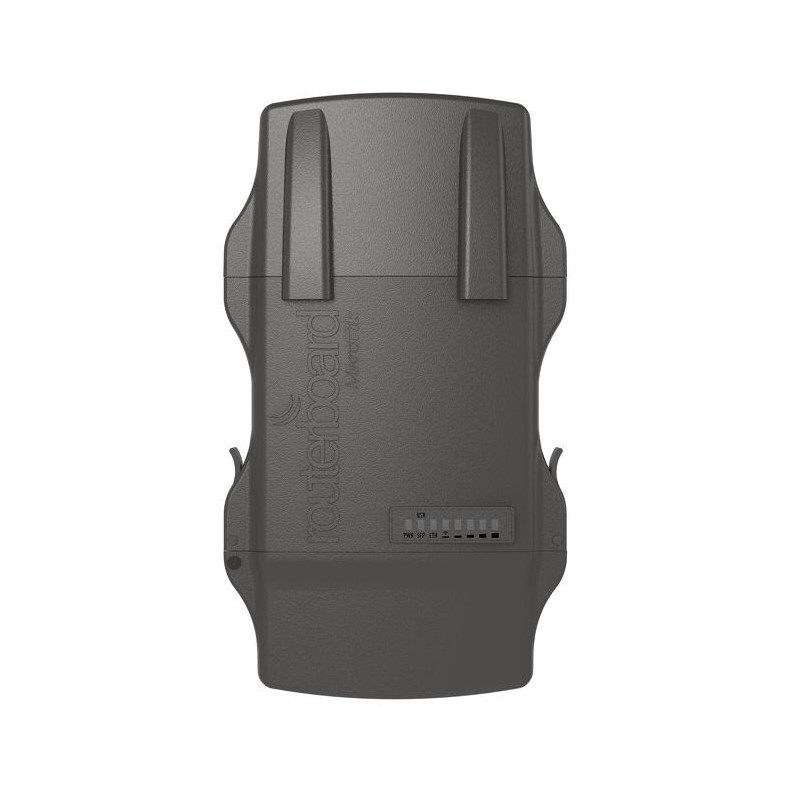

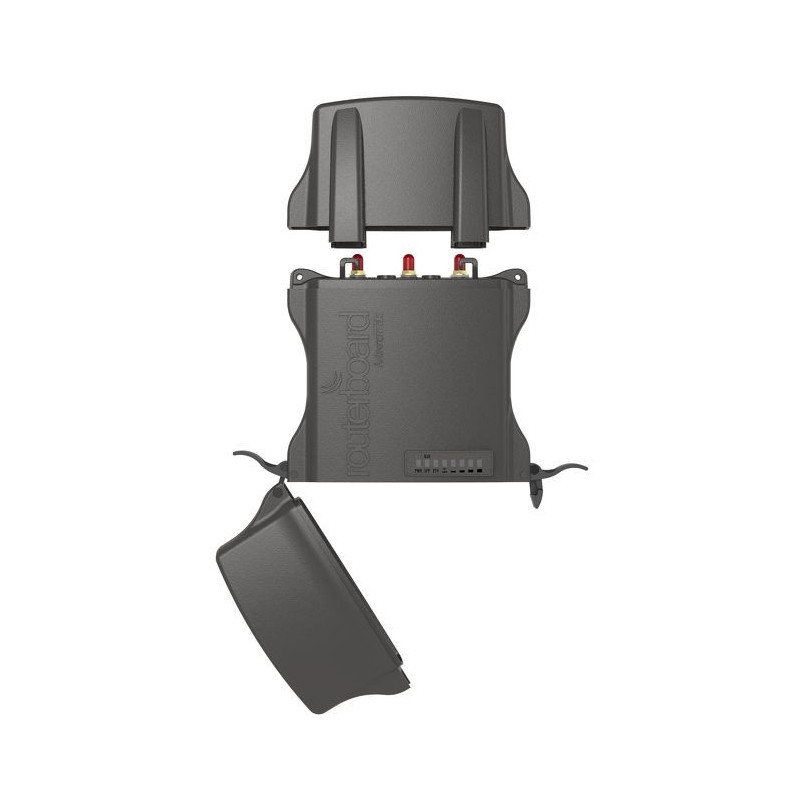

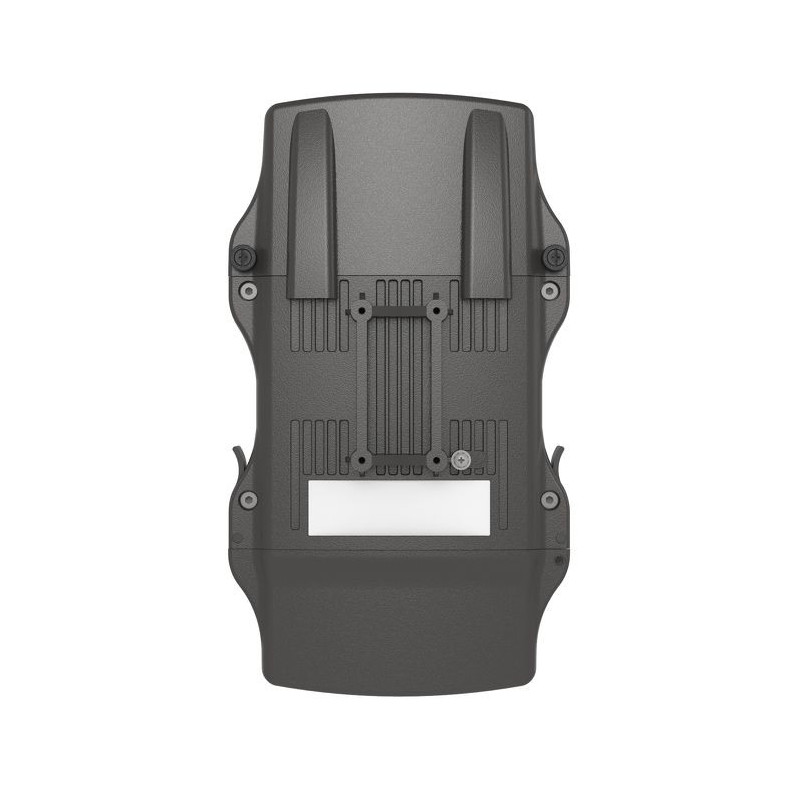

The NetMETAL is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.

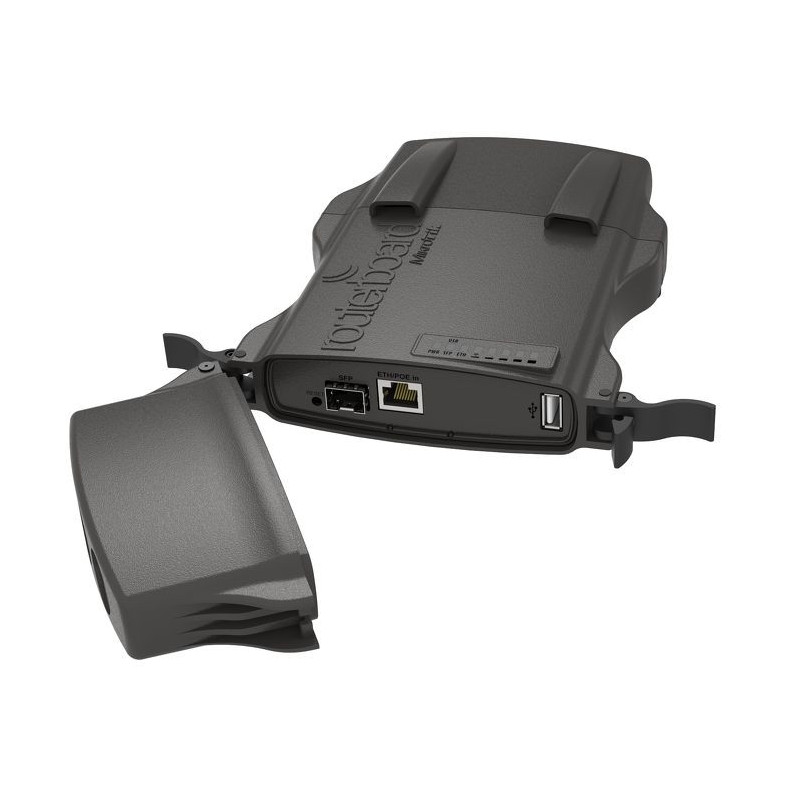

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

Product code RB922UAGS-5HPacD-NM

SFP DDMI yes

CPU nominal frequency 720 MHz

CPU core count 1

Size of RAM 128 MB

10/100 Ethernet ports None

10/100/1000 Ethernet ports 1

MiniPCI slots 0

MiniPCI-e slots 1

Wireless chip model QCA9882-BR4A-R

Wireless standards 802.11ac

Number of USB ports 1

Power Jack 0

802.3af support no

Supported input voltage 8 V - 30 V

PoE out No

PoE in Yes

Voltage Monitor Yes

CPU temperature monitor No

PCB temperature monitor Yes

Dimensions 143x247x48mm (PCB)

Operating System RouterOS

License level 4

Antenna gain DBI No

Current Monitor No

CPU QCA9557-AT4A-R

Max Power consumption 17 W

SFP ports 1

SFP+ ports None

USB slot type USB type A

Number of chains 2

Serial port None
