MIKROTIK RBcAP2nD

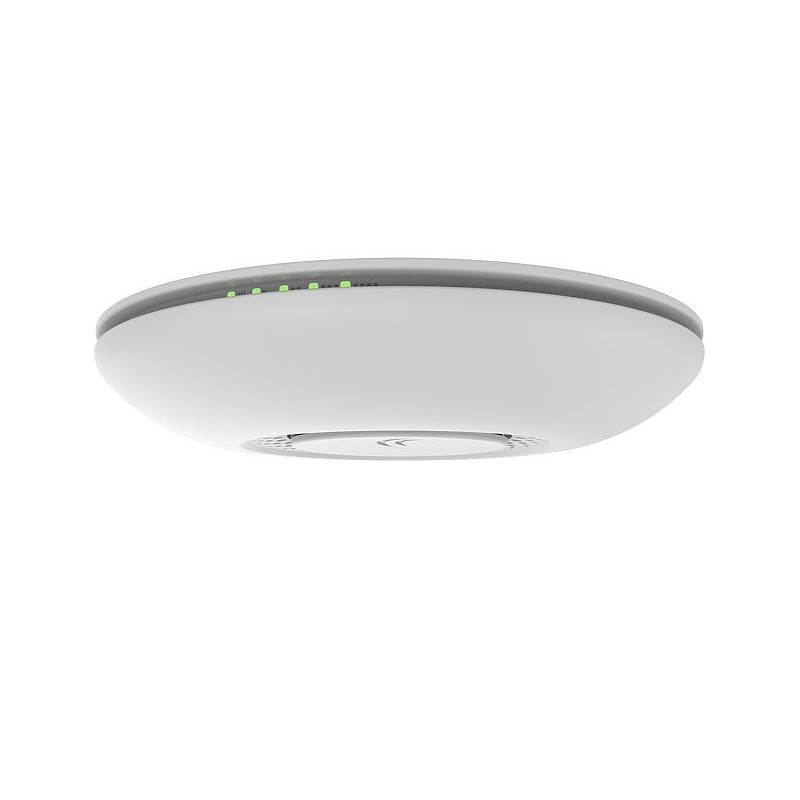

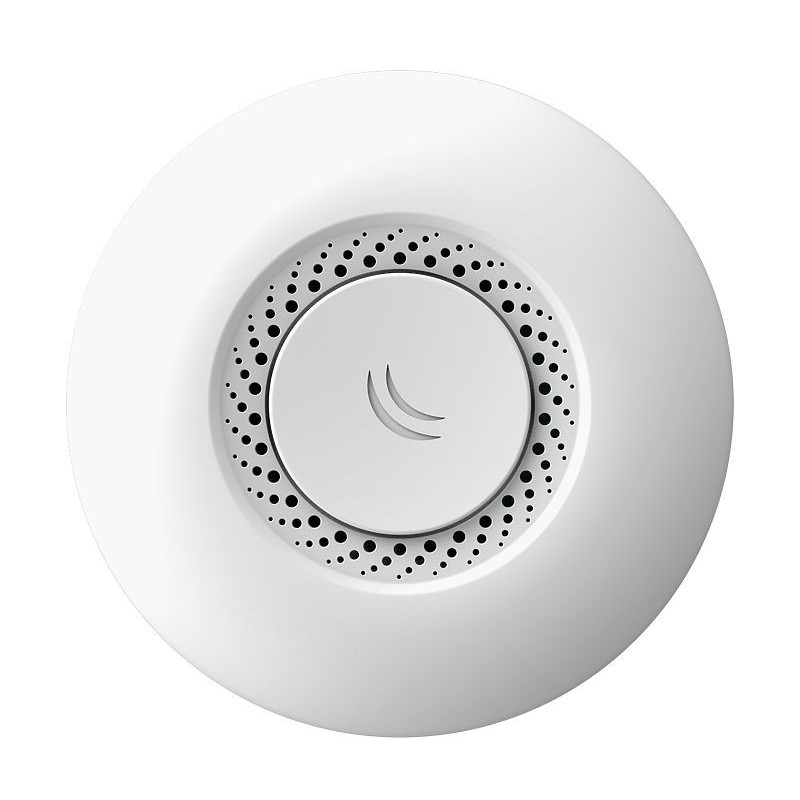

RouterBOARD cAP-2nD (ceiling Access Point) is MikroTik's first 2.4GHz ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

cAP-2n supports 802.11b/g/n and can be powered by PoE. It's a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

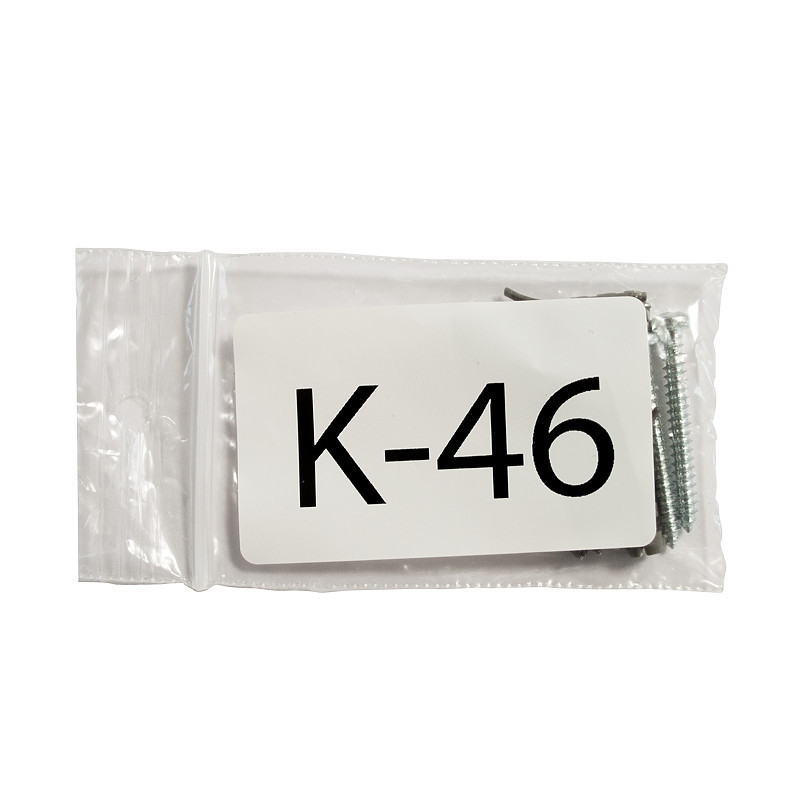

Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

Product code: RBcAP2nD

10/100 Ethernet ports: 1

802.11b: Yes

802.11g: Yes

802.11n: Yes

Antenna gain: 2

CPU: QCA9533

CPU core count: 1

CPU nominal frequency: 650 MHz

Dimensions: 185mm diameter, 31mm height

License level: 4

Max Power consumption: 4W

Number of chains: 2

Operating System: RouterOS

PoE in: 802.3af/at

Size of RAM: 64 MB

Storage size: 16 MB

Storage type: FLASH

Supported input voltage: 11 V - 57 V

Tested ambient temperature: -40C to +70C

Wireless chip model: QCA9533

Wireless standards: 802.11b/g/n

Wireless specifications

Rate Tx Rx

1MBit/s 22 -96

11MBit/s 22 -89

6MBit/s 20 -93

54MBit/s 18 -74

MCS0 20 -93

MCS7 16 -71

What's in the box:

1. RBcAP2nD

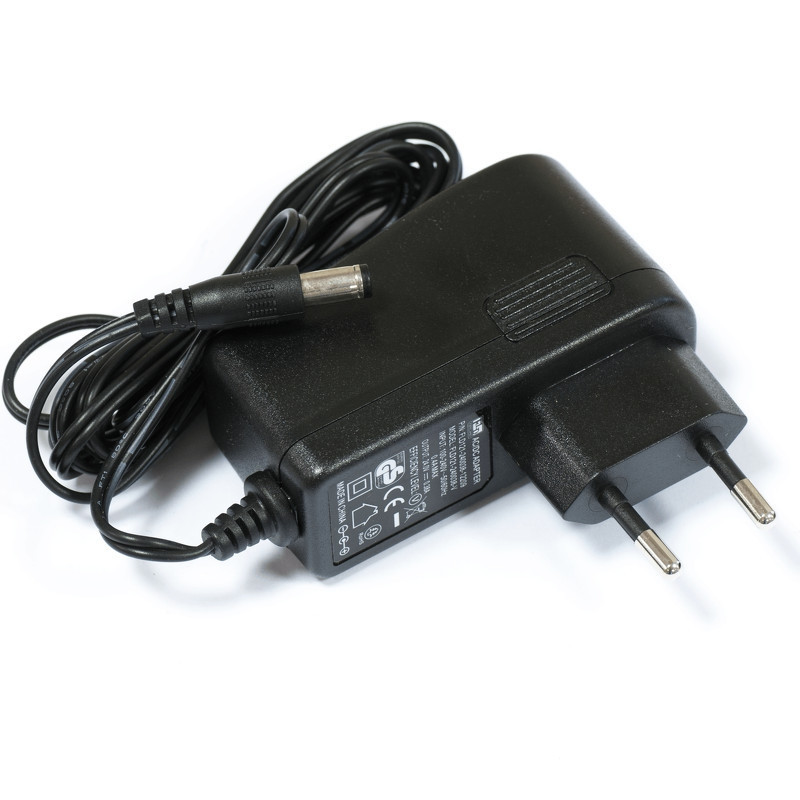

2. 24V 0.2A Adapter

3. Ceiling mount base

4. Ceiling mount attachment

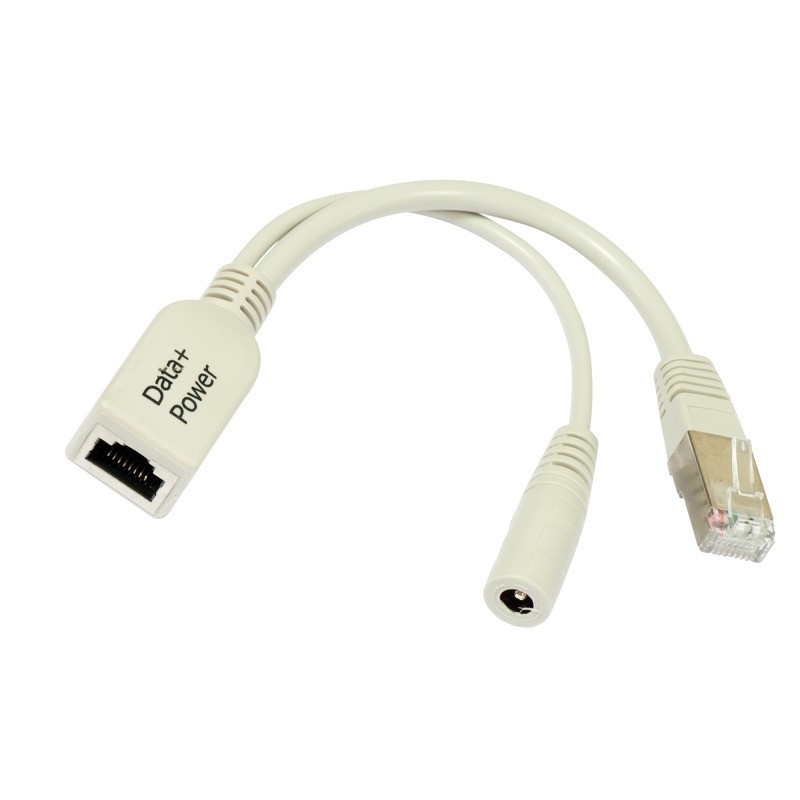

5. PoE injector
