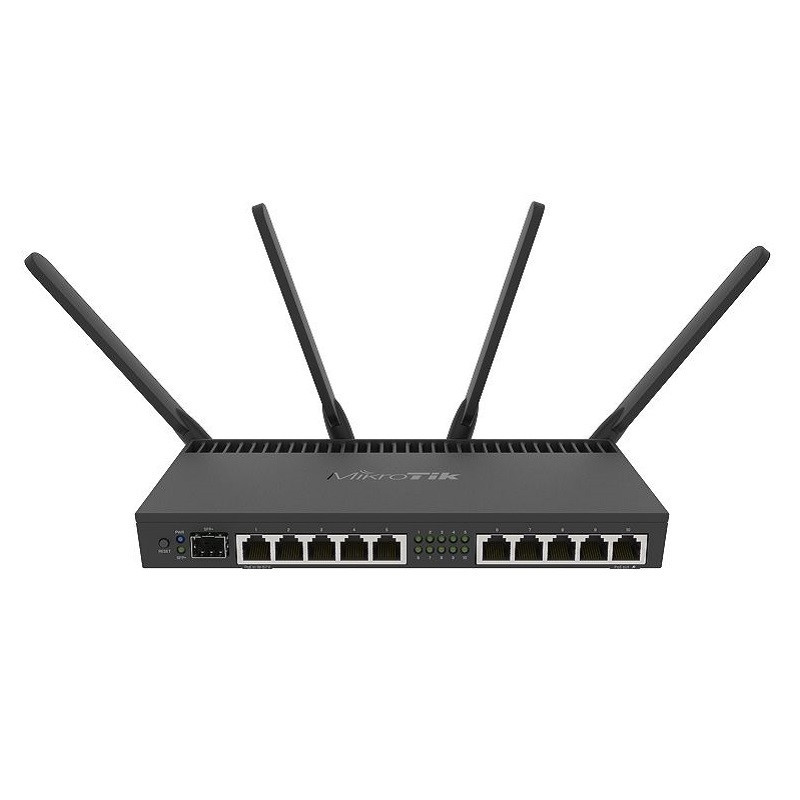

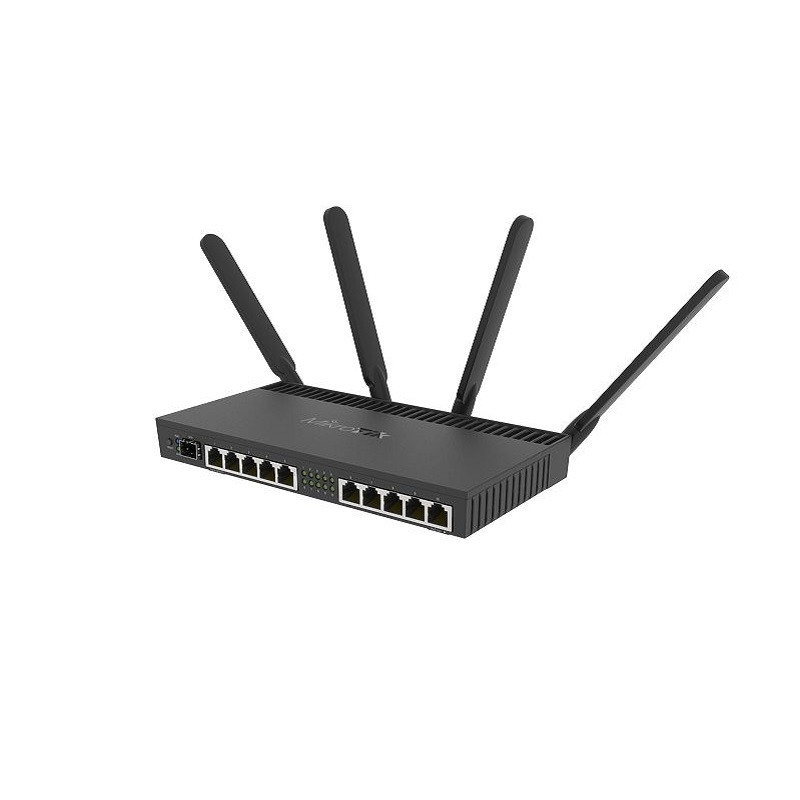

MIKROTIK RB4011iGS+5HacQ2HnD-IN

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Product code: RB4011iGS+5HacQ2HnD-IN

Architecture: ARM 32bit

CPU: AL21400

CPU core count: 4

CPU nominal frequency: 1.4 GHz

Dimensions: 228 x 120 x 30 mm

Operating System: RouterOS (License level 5)

Size of RAM: 1 GB

Storage size: 512 MB

Storage type: NAND

Tested ambient temperature: -40°C .. +45°

Powering

PoE in: Passive PoE

PoE out: Passive PoE up to 57V

PoE in input Voltage: 18-57 V

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 12-57 V

Max out per port output (input > 30 V): 420 mA

Max out per port output (input < 30 V): 600 mA

Max total out (A): 600 mA

Max power consumption: 55

Max power consumption without attachments: 26W

Wireless

Wireless 5 GHz number of chains: 4

Wireless 5 GHz standards: 802.11ac

Antenna gain dBi for 5 GHz: 3

Wireless 5 GHz chip model: QCA-9984

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n

Antenna gain dBi for 2.4 GHz: 3

Wireless 2.4 GHz chip model: R11e-2HnD

Ethernet

10/100/1000 Ethernet ports: 10

Fiber

SFP+ ports: 1

Peripherals

MiniPCI-e slots: 1

Serial port: RJ45

Other

PCB temperature monitor: Yes

Voltage Monitor: Yes
