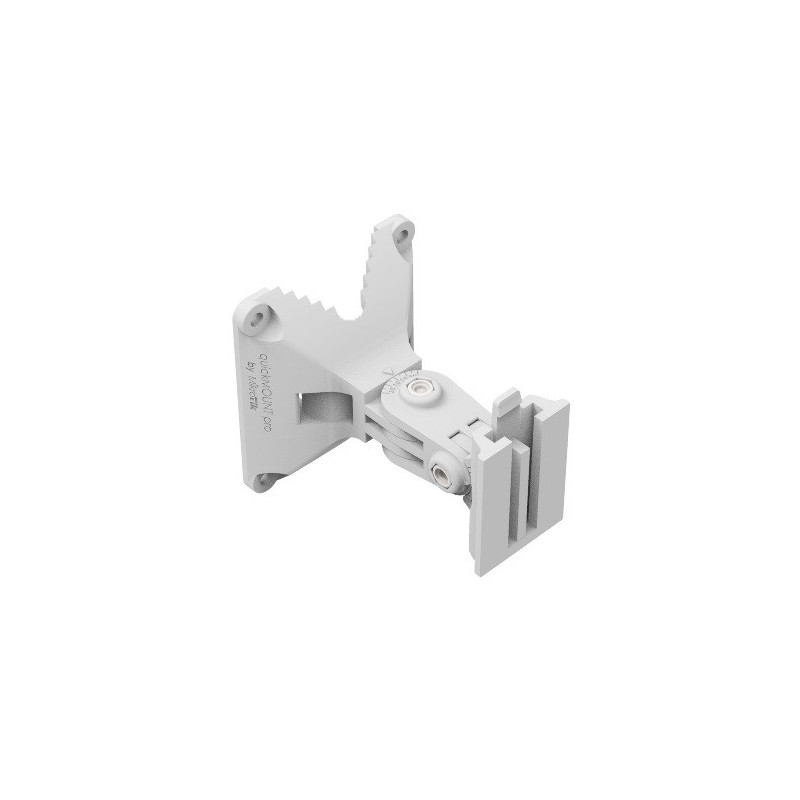

MIKROTIK quickMOUNT PRO

The quickMOUNT pro is a advanced wall mount adapter for small

point to point and sector antennas. You can mount it on the wall or

use it as an adapter from large diameter pole to small size antenna

mounting clip ensuring reliable fitment.

The quickMOUNT pro gives possibility to turn antenna within 140°

both in horizontal and vertical plane. With the quickMOUNT pro

it is possible to perfectly set antenna alignment using integrated

graduated scale.

You can use the quickMOUNT pro with any pole mountable device

or Mikrotiks small mounting clip with weight less than 1.5 kg.

• It's simple and low cost.

• Supports SXT, Omnitik, BaseBox or any other pole mountable

device.

The adapter is very durable due to it's special plastic material

composite - anvilNITE (TM).

Product code QMP

Dimensions 95x88x112mm

Tube diameter 35 mm

Max tube diameter to which mount

can be attached 65 mm

Maximum antenna weight 1.5 kg

Maximum wind load 100 N

Turn angle for Mikrotik products 140°

Compatible devices SXT series, Omnitik, 3rd party antennas that are designed to be pole

mounted

Material anvilNITE™
