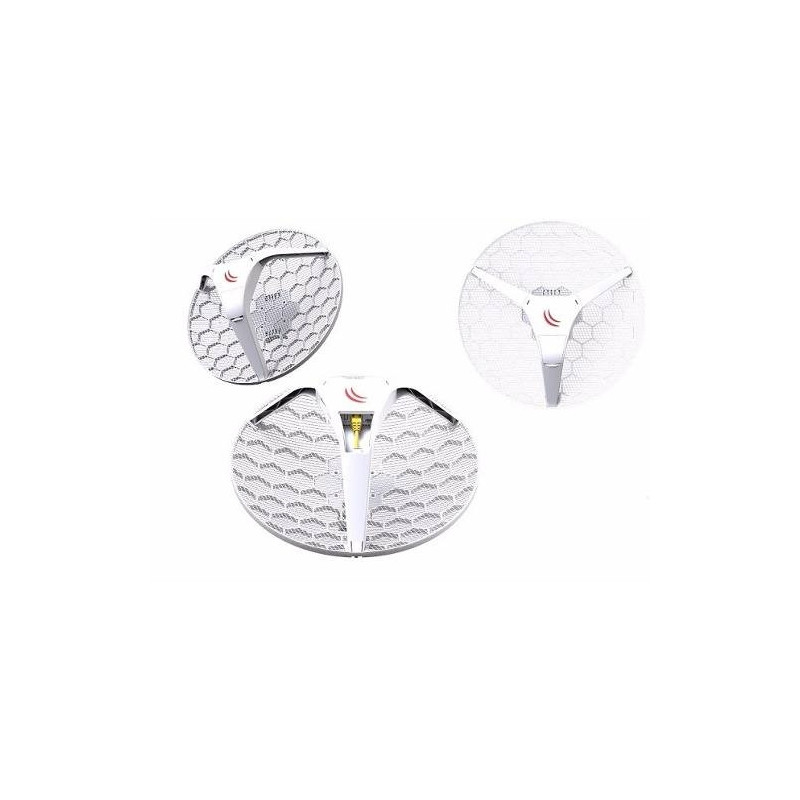

MIKROTIK LHG serijos 5 GHz lauko belaidis maršrutizatorius LHG 5, 3 vnt. pakuotėje

The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.



RBLHG-5nD-3 (LHG 5 3pack) box contains 3 pieces.

Single unit:

Product code: RBLHG-5nD

CPU nominal frequency: 600 MHz

Size of RAM: 64 MB

Storage: 16 MB Flash

10/100 Ethernet ports: 1

Wireless: Built-in 5 GHz 802.11a/n, dual-chain

Wireless chip model: AR9344

Operating frequency: 5150 - 5875 MHz

Antenna gain: 24.5 +/- 0.5 dBi

Antenna beam width: 7°

Cross polar: 15 dBi

Port to port isolation: 20 dB

Front to back ratio: 25 dB

Return loss: 10 dB

VSWR: 1.925:1

PoE in: Yes

Supported input voltage: 11 V - 30 V (passive PoE)

Wind loading: 186N @ 205 km/h

Operating temperature: -40 to 70° C

Operating humidity: 5 to 95% noncondensing

Shock and vibration: ETSI300-019-1.4

ETSI specification: EN 302 326 DN2

Dimensions: Ø 391 x 222 mm; package 450 x 450 x 145 mm

Weight: Unit - 560 g; package - 1.98 kg

Max Power consumption: 6 W

Box contains 3 units
