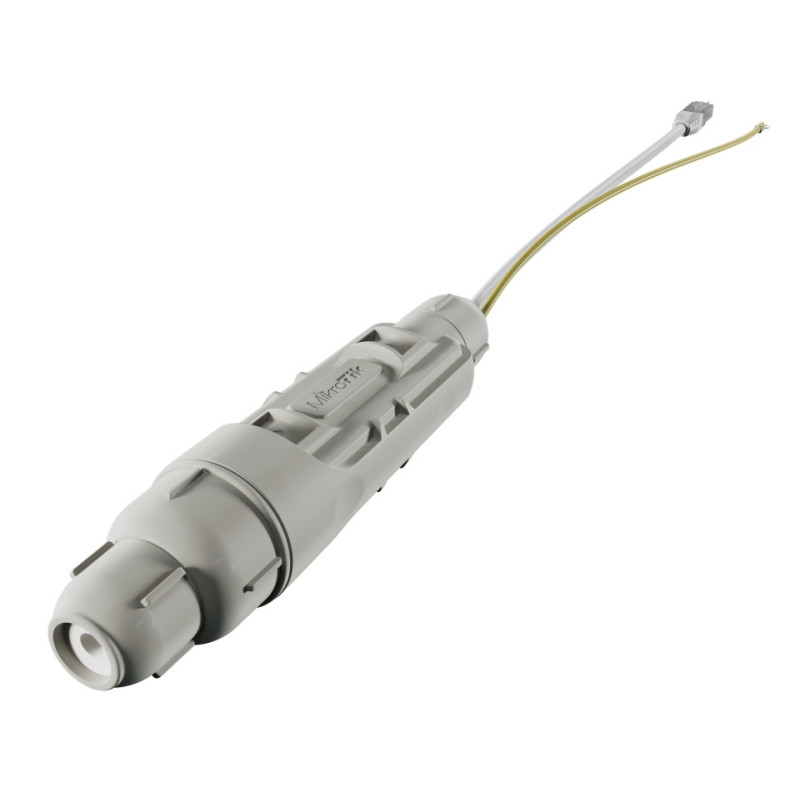

MIKROTIK Gigabit Ethernet Surge Protector RBGESP

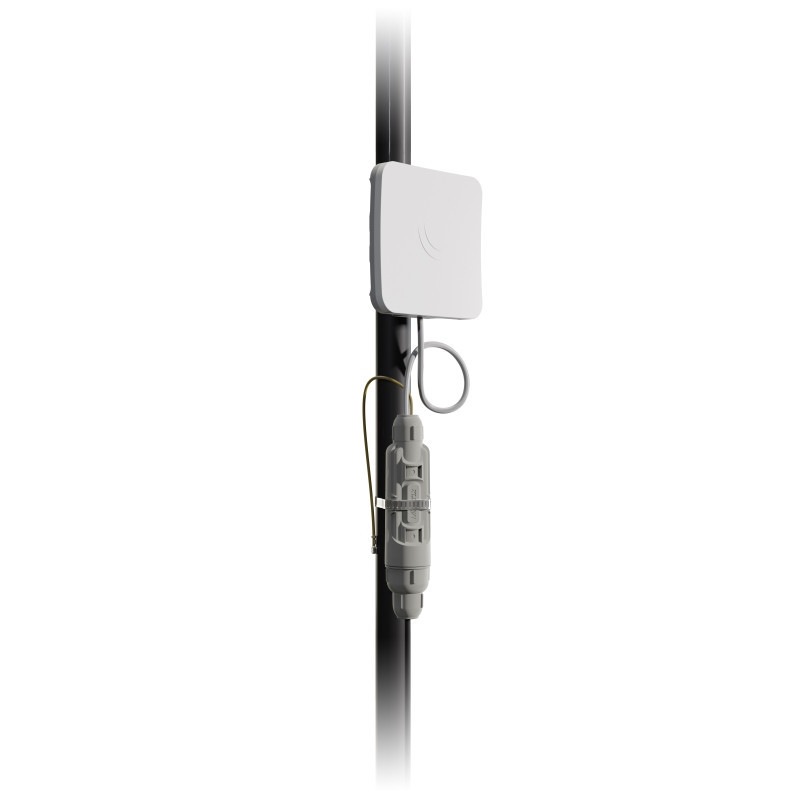

To protect your device from power surges, attach RBGESP to desired connection cable and device. Attach grounding wire to appropriate location.

If multiple devices are used, it is recomended to use RBGESP on each end of the connection cable between devices for a better protection.

Product code: RBGESP

Interface connections: RJ45 Male/Female Conector

ESD/EMP protection: Absorbing transient current with response to surge voltage of 100 V/s 1 kV/μ, ESD, IEC 61000-4-2, ±30 kV contact, ±30 kV air

DC spark-over voltage: 90 V @ 100 V/s

Maximum impulse spark-over voltage: 700 V @ 1 kV/μs

Discgarge current: 5 kA (8/20μs)

Minimum insulation resistance: 1 G ohm @ 50V

Maximum capacitance: 4 pF @ 1 MHz

Data line protecion: RJ45 10/100/1000 Ethernet

PoE support: Yes, IEEE 802af/at

Operating temperature: -40 to 70°C
