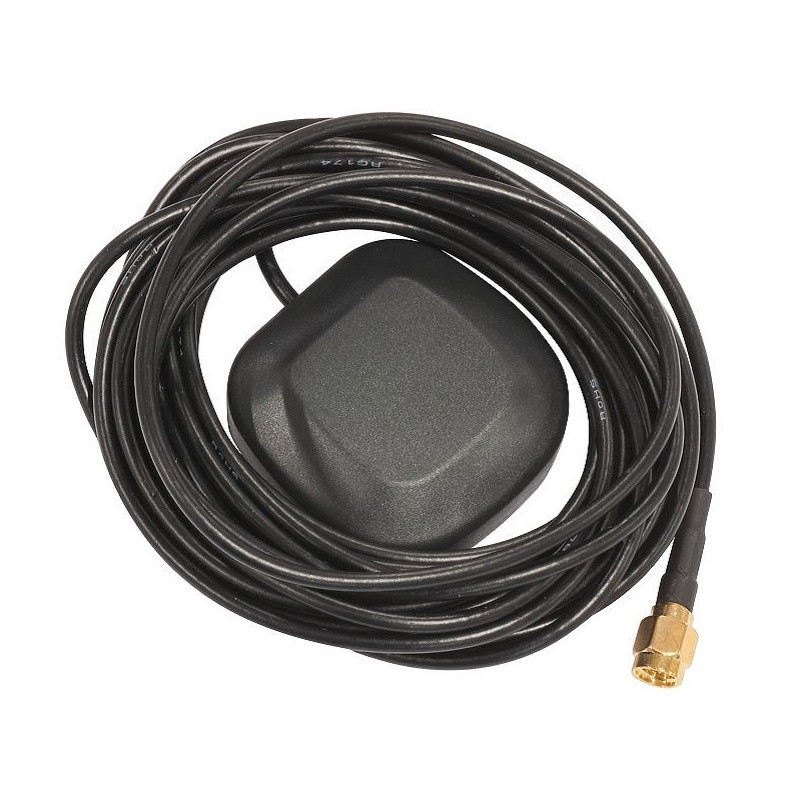

MIKROTIK aktyvi GPS antena su SMA jungtimi

The active GPS antenna is the perfect companion for the LtAP mini, giving you the possibility to get accurate geographical coordinates of your router, even when it is mounted indoors. The long cable

allows to bring the antenna outside and mount it with the included magnet, or double sided tape.

The ACGPSA is a standalone active GPS antenna, specifically made for the 1575.4 MHz frequency used by GPS. The size of the antenna is 46.5 mm x 26.5 mm x 12.5 mm and is waterproof

with IP67 rating. It has a long 5 m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).

Product code: ACGPSA

Center frequency: 1575.42 Mhz

Gain: 26 dB

Water resistance: 100% waterproof (IP67)

Connector: SMA

Cable: 5 m RG-174/U (standard)

Standard mounting: Magnetic base

DC voltages: 3 V +-0.3 V

DC current: 8 mA max

Dimensions: 46.5 x 46.5 x 12.5 mm

Weight: 35 g (without cable), 120 g (with cable and connector)

Operating temperature: -40°C .. +85°C (tested)
