MIKROTIK RBmAPL-2nD mAP lite

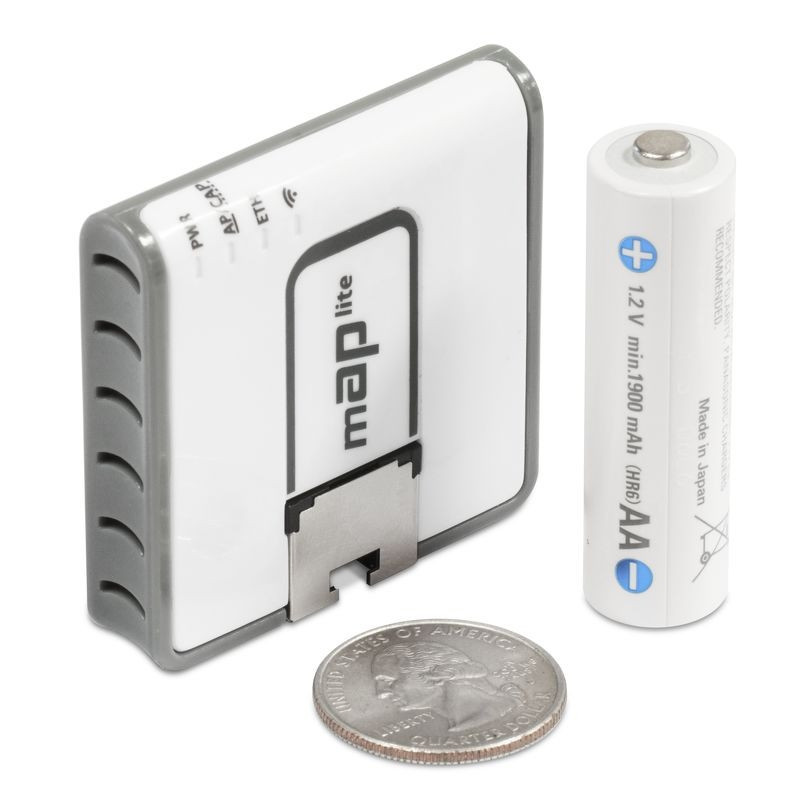

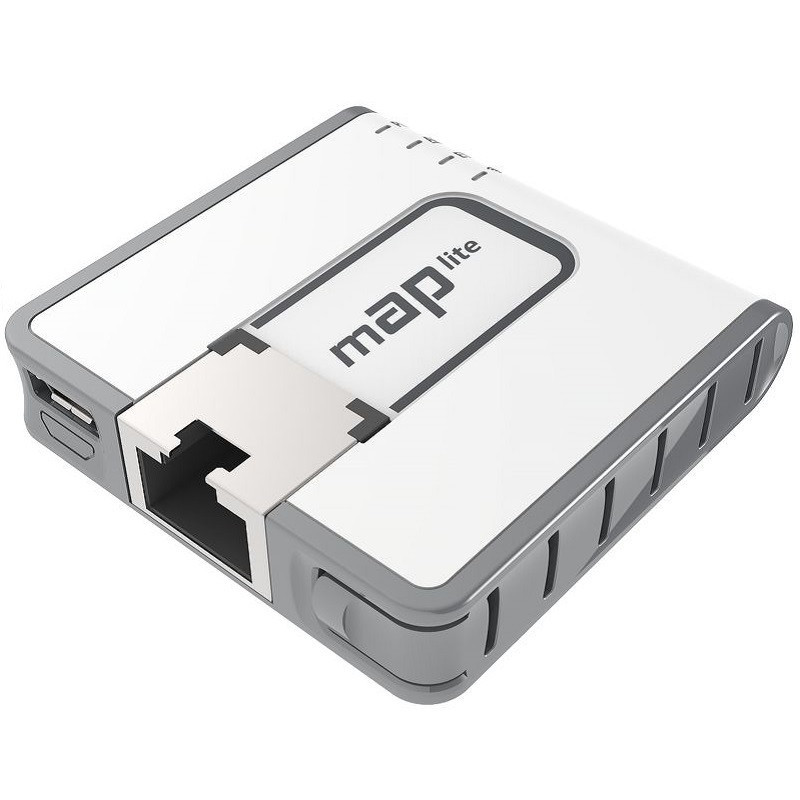

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match its slim profile.

You can carry it anywhere: use it as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop's signal range, the tiny mAP lite will always be with you.

It comes with a built-in magnet, so you can attach it to any ferrous surface, or, if those are not available, a metallic plate with an adhesive back is also included.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device, plus, it neatly attaches to the rack with its magnet.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

Product code: RBmAPL-2nD Architecture: MIPSBE CPU: QCA9533 CPU core count: 1 CPU nominal frequency: 650 MHz Dimensions: 48x49x11mm Operating System: RouterOS (License level 4) Size of RAM: 64 MB Storage size: 16 MB Storage type: FLASH Tested ambient temperature: -30 + 70 C

Powering

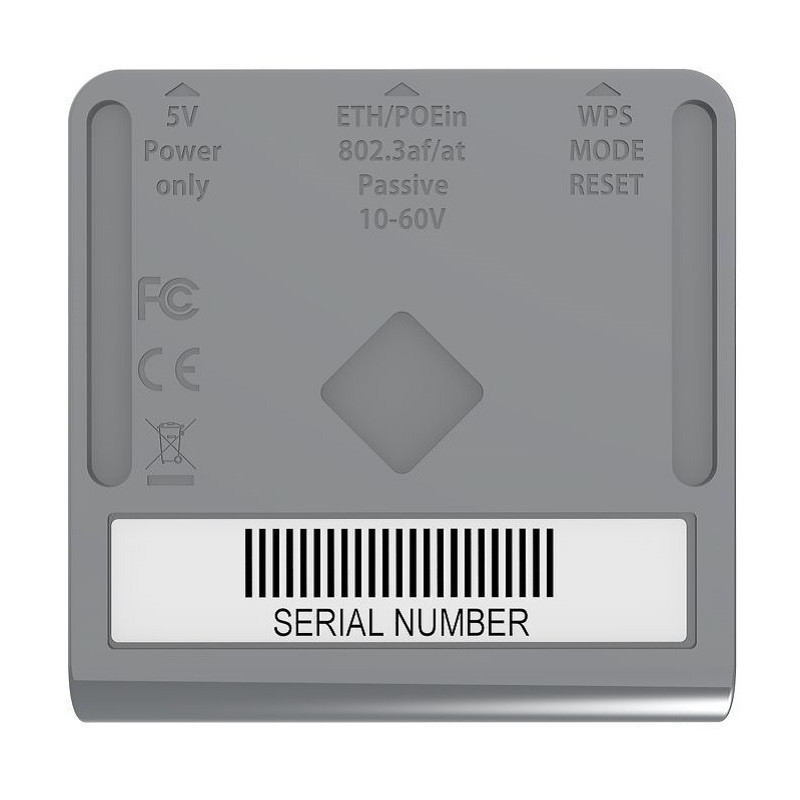

Max Power consumption: 3.5W MicroUSB input Voltage: 5V PoE in: 802.3af/at PoE in input Voltage: 10-60 V Number of DC inputs: 2 (PoE-IN, MicroUSB)

Wireless

Wireless 2.4 GHz number of chains:2 Wireless 2.4 GHz standards: 802.11b/g/n Antenna gain dBi for 2.4 GHz: 1.5 Wireless 2.4 GHz chip model: QCA9533

Ethernet

10/100 Ethernet ports:1
