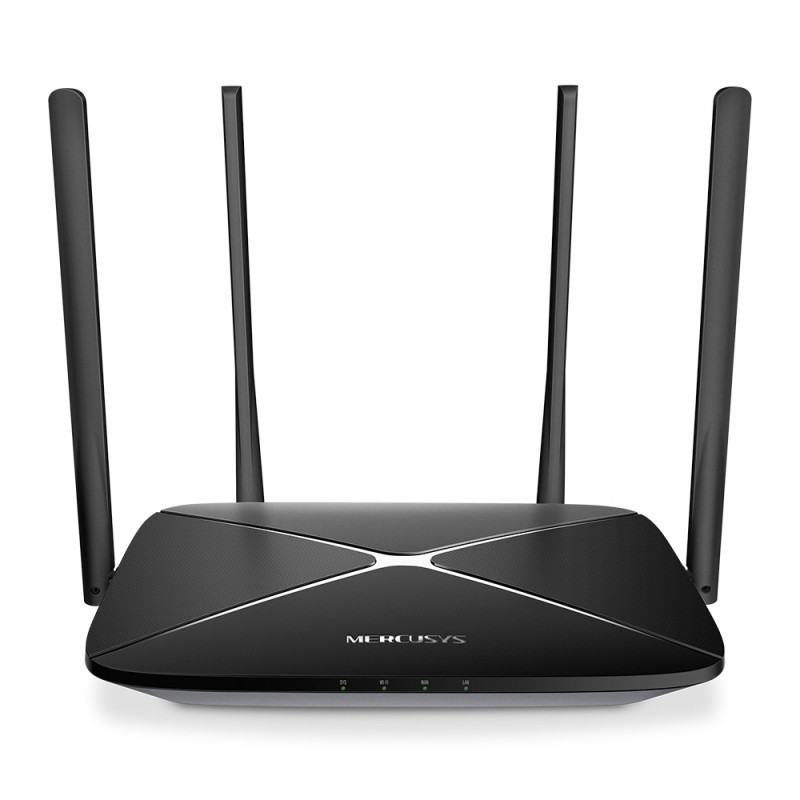

MERCUSYS AC1200 Wireless Dual Band Gigabit Router

• AC1200 dual band Wi-Fi — speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band


• Full gigabit ports — lightning-fast connections for wired devices, including game consoles, STBs, smart TVs and more


• Share with up to 60 devices — internet access for multiple streaming simultaneously


• 4 high gain external antennas — powerful wireless coverage throughout your house


• Easy installation — intuitive webpage guides you through the setup process in minutes

Wireless

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 - 2.5GHz, 5.15 - 5.35GHz

WiFi Speeds

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity

5 GHz

• 11a 6M: -92 dBm

• 11a 54M: -75 dBm

• 11ac 20M MCS8: -70 dBm

• 11ac 40M MCS9: -64 dBm

• 11ac 80M MCS9: -60 dBm

2.4 GHz

• 11g 6M: -95 dBm

• 11g 54M: -77 dBm

• 11n 20M MCS7: -74 dBm

• 11n 40M MCS7: -71 dBm

Transmission Power

<20dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Software

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management

Access Control

Local Management

Remote Management

DHCP

Server

Port Forwarding

Virtual Server, UPnP, DMZ

Dynamic DNS

NO-IP, DynDNS

Firewall Security

IP and MAC Address Binding

Protocols

IPv4, IPv6

Guest Network

2.4GHz Guest Network, 5GHz Guest Network

Hardware

Dimensions

222 × 140 × 32 mm

Interfaces

1 Gigabit WAN Port

3 Gigabit LAN Ports

Button

WPS/Reset Button

External Power Supply

9 VDC/ 0.85 A

Antenna Type

4 Fixed Omni-Directional Antennas

Others

Certifications

CE, ROHS

Package Contents

• AC1200 Wireless Dual Band Gigabit Router (AC12G)

• Power Adapter

• Ethernet Cable

• Quick Installation Guide

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40°C~70°C (-40°F~158°F)

• Operating Humidity: 10%~90% Non-Condensing

• Storage Humidity: 5%~90% Non-Condensing
