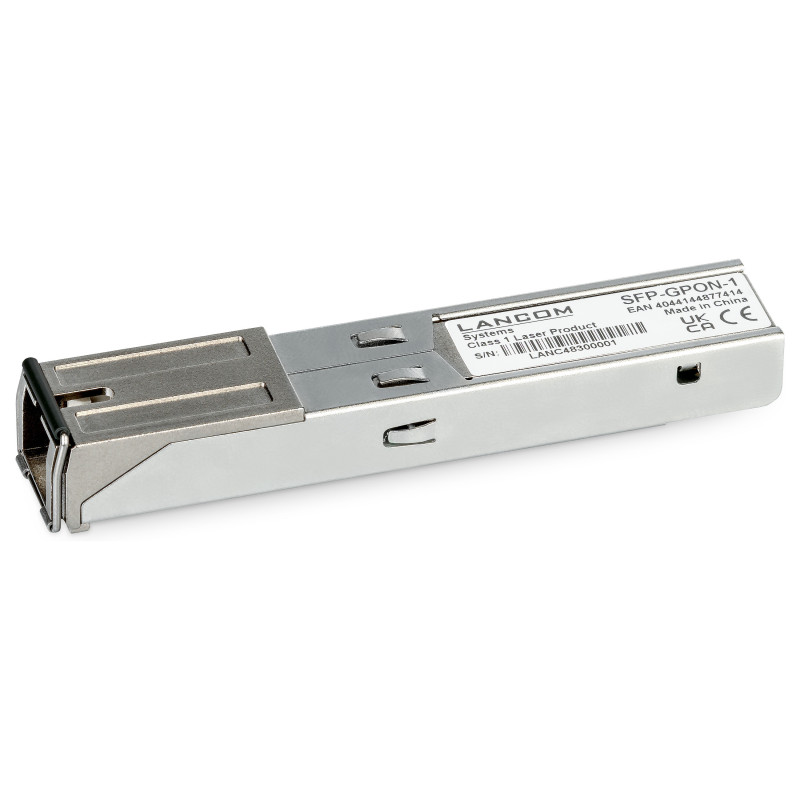

LANCOM SFP-GPON-1 tinklo siųstuvo-imtuvo modulis

LANCOM SFP-GPON-1. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Silver, Compatible products: LANCOM 1800 series; LANCOM 1900 series; LANCOM 2100EF; LANCOM ISG-5000; LANCOM ISG-8000; LANCOM.... Power consumption (typical): 2 W. Quantity per pack: 1 pc(s). Package width: 232 mm, Package depth: 350 mm, Package height: 100 mm

Direct high-speed connection to passive fiber optic lines (FFTH)
Fiber-optic lines directly into the home (fiber-to-the-home / FTTH) offer higher speeds, more stable connections, and greater future-proofing compared to DSL lines. The SFP transceiver module LANCOM SFP-GPON-1 enables you to connect directly to a GPON network (Gigabit Passive Optical Network) with up to 1 Gbps via your LANCOM gateway - without the complex cabling and power supply of a separate provider modem.

Reliable support for GPON technology
For fiber to the home (FTTH) data transmission, GPON technology is a reliable solution: A GPON-based network architecture is characterized by flexible bandwidths up to 1G as well as high transmission ranges. The components of the gigabit speed optical network reduce its maintenance and costs, making it reliable and scalable. An upgrade to GPON technology is, thus, easy to realize with the LANCOM SFP-GPON-1.

Direct connection to GPON FTTH networks without separate provider modem
While previously an additional fiber-optic modem had to connect the fiber-optic connection in the building to the router, the LANCOM SFP-GPON-1 now handles the necessary conversion of the incoming data signals. This eliminates the need for cabling and installation of a modem as well as the laying of an additional power supply.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: SC/APC
Fiber cable diameters supported (core/cladding): 9/125 µm
Wavelength: 1310 nm
Rx wavelength (min): 1480 nm
Rx wavelength (max): 1500 nm
Link budget: 28 dB
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Feature: Plug and Play
Feature: Hot-swap
Compatible products: LANCOM 1800 series; LANCOM 1900 series; LANCOM 2100EF; LANCOM ISG-5000; LANCOM ISG-8000; LANCOM WLC-60; LANCOM WLC-2000

Power

Power consumption (typical): 2 W

Operational conditions

Minimum operating temperature: -40 °C
Maximum operating temperature: 85 °C

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 232 mm
Package depth: 350 mm
Package height: 100 mm
Package weight: 170 g

Logistics data

Customs product code (TARIC): 85177000
Country of origin: China
