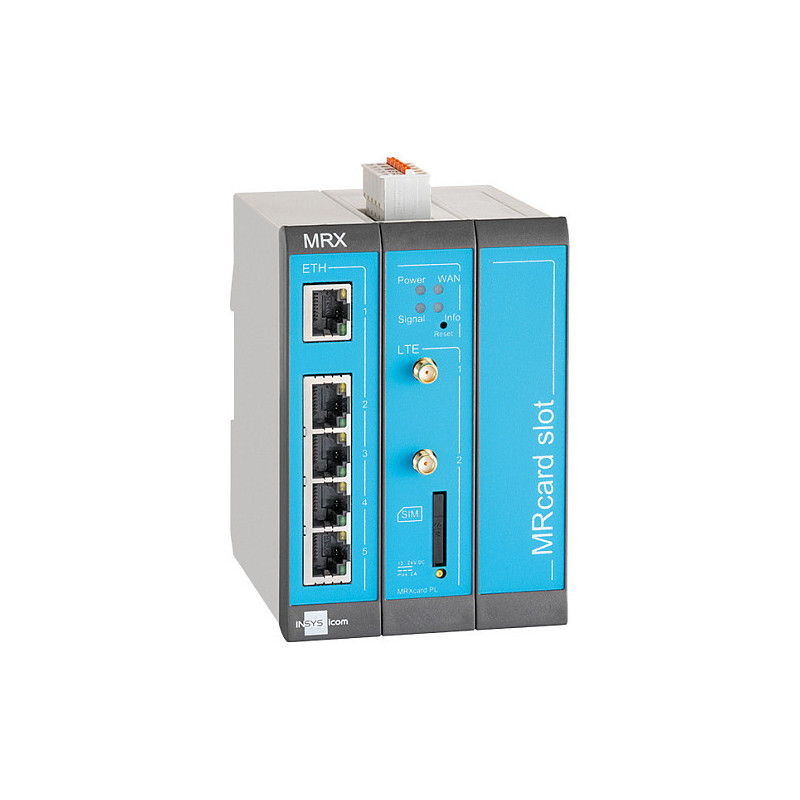

„Insys Microelectronics MRX3 LTE“ laidinis maršrutizatorius

Insys Microelectronics icom MRX3 LTE, mod. 4G router. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Mobile network generation: 4G, 2G standards: Edge, GPRS, 3G standards: HSPA, UMTS. Routing protocols: BGP, OSPF, RIP, RIP-2. Security algorithms: IPSec, SNMP, SSH, Authentication method: RADIUS. Certification: CE, EN 55032 Class B; EN 61000-6-2, EN 55024, IEC/EN 60950, 62368, EN 61131-2 and EN 60068-2-6,...

MRX - the flexible power

The smart MRX routers combine KRITIS (critical applications) level IT security, state-of-the-art technology, high computing power, sophisticated administration and programmability.

Freedom of design

Changing requirements require flexible solutions. The modularity of the MRX router series allows you to assemble a custom router for each individual application.

Extension options

The basic variants DSL, LTE and LAN are each available in two housing widths and have two digital inputs. Modular plug-in cards (MRcards) with additional interfaces can be added as required. In addition to the standard models, customer-specific MRcards can also be developed.

Future-proof

With the plug-in cards for the MRX router you will also be on the safe side in the future, because we are constantly expanding our range. This means that in the case of technology upgrades, e.g. to 5G, you can expand your router efficiently and at low cost.

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot

Network

Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Full duplex
Feature: VLAN support
Feature: Port forwarding
Feature: Auto MDI/MDI-X

Mobile network

Mobile network generation: 4G
2G standards: Edge, GPRS
3G standards: HSPA, UMTS
4G standard: LTE
UMTS bands supported: 900,1800,2100 MHz
4G bands supported: 800,900,1800,2100,2600 MHz
Feature: Short Message Service (SMS)

Management features

Feature: Web-based management

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5

Protocols

Routing protocols: BGP, OSPF, RIP, RIP-2
Feature: DHCP client
Feature: DHCP server

Security

Security algorithms: IPSec, SNMP, SSH
Feature: Firewall
Authentication method: RADIUS
Feature: IP address filtering

Design

Product colour: Blue, Grey
LED indicators: Yes

Power

Power consumption (typical): 8 W
Power source type: DC
Output voltage: 12-24 V

Operational conditions

Operating temperature (T-T): -30 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 82 mm
Depth: 88 mm
Height: 117 mm
Weight: 364 g

Logistics data

Harmonized System (HS) code: 85176990
