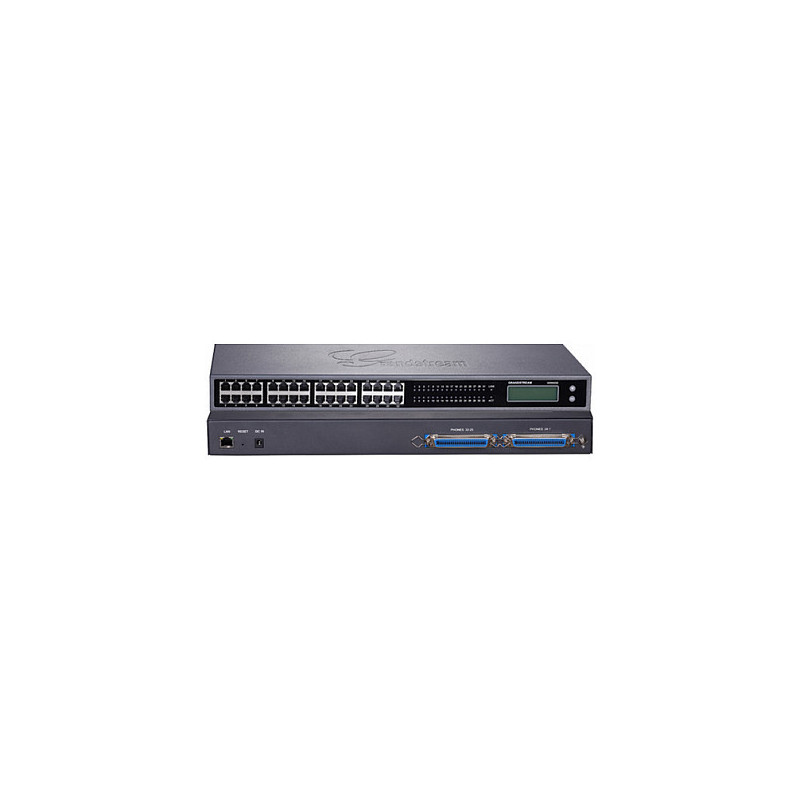

„Grandstream Networks GXW4232“ šliuzas / valdiklis

Grandstream Networks GXW4232. Mounting type: Rack mounting, LED indicators: Power. Voice codecs: G.711, G.723.1, G.726, G.729ab, iLBC. Supported protocols: TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PP-PoE, STUN, LLDP. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Data transfer rate: 1 Gbit/s. Input voltage: 100 - 240 V, Input frequency: 50/60 Hz, Output voltage: 12 V

The GXW4200 high-density FXS gateway series enables businesses of all sizes to create an easy-to-deploy VoIP solution that takes advantage of Gigabit speeds. These FXS gateways offer the ability to seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network to make deployments as easy as possible. The GXW4200 series includes 16/24/32/48 FXS ports and a Gigabit network port. Deploy the GXW4200 series to allow any businesses to create a cost-effective hybrid IP and analog telephone system that allows them to enjoy the benefits of VoIP communications while preserving investment on existing analog phones, Fax machines and legacy PBX systems.

Design

Mounting type: Rack mounting
LED indicators: Power

Features

Voice codecs: G.711, G.723.1, G.726, G.729ab, iLBC

Protocols

Supported protocols: TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PP-PoE, STUN, LLDP

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Data transfer rate: 1 Gbit/s

Ports & interfaces

I/O ports: 32 x RJ-11, 2 x Telco 50-pin
Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support

Power

Input voltage: 100 - 240 V
Input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 5 A

Weight & dimensions

Weight: 3.21 kg
Dimensions (WxDxH): 440 x 185 x 44 mm

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Logistics data

Harmonized System (HS) code: 85176990
