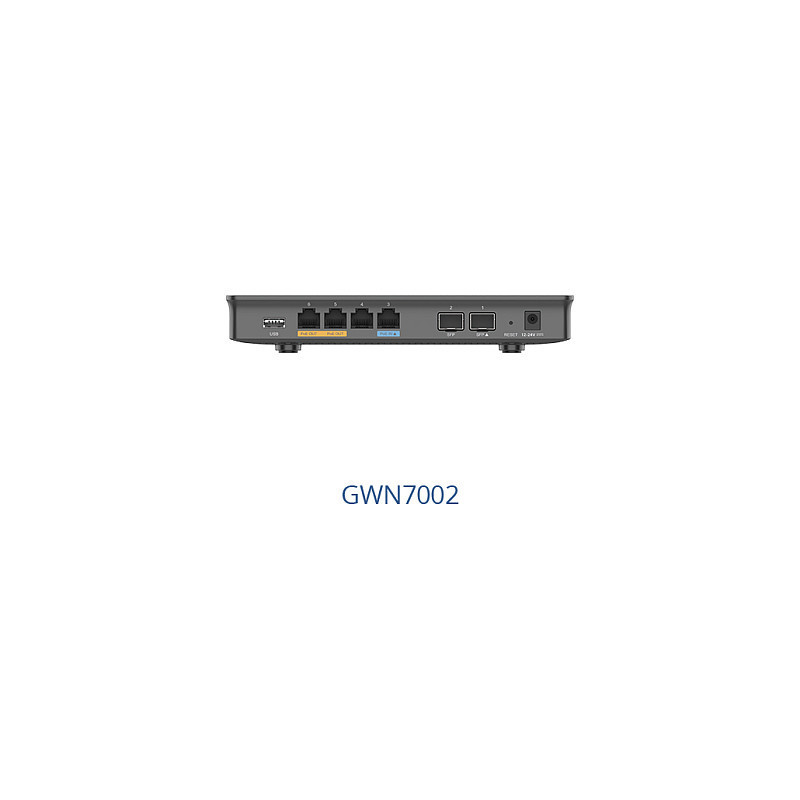

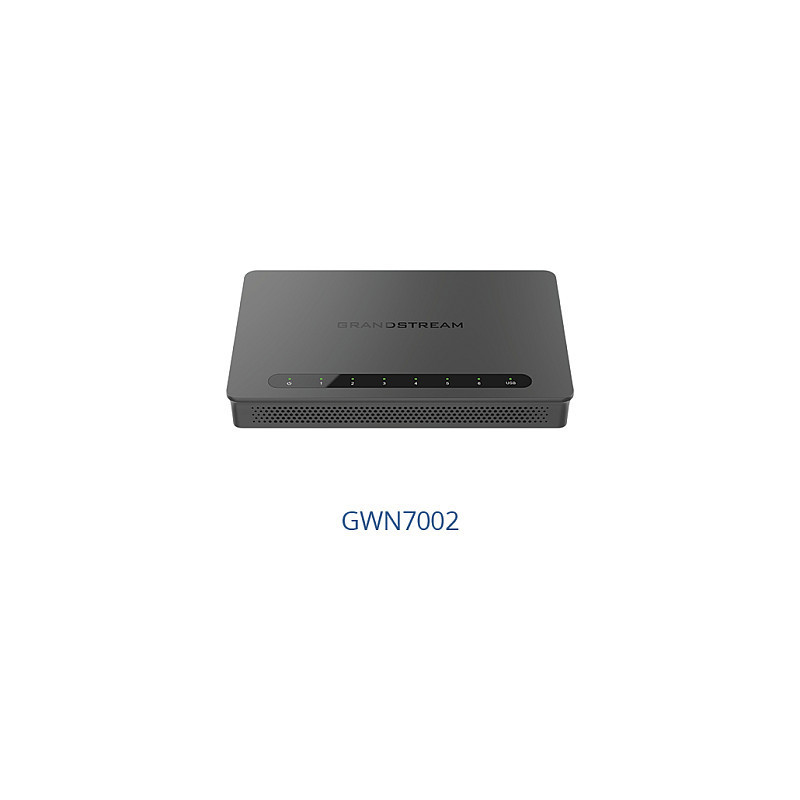

„Grandstream Networks GWN7002“ laidinis maršrutizatorius

Grandstream Networks GWN7002. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE..., Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Throughput: 2.2 Gbit/s. Supported network protocols: IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab. Security algorithms: IPSec, VPN support: SSL VPN Server / Client-to-Site • IPsec VPN Client-to-Site / Site-to-Site • PPTP VPN Server /..., NAT functionality: 30K NAT sessions. Cables included: LAN (RJ-45). Processor frequency: 1000 MHz, Flash memory: 256 MB, Internal memory: 256 MB

The GWN7000 Series are Multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations.

GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network's performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer's private network, this solution offers simplified configuration and management. Keep an eye on the network's performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product's web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.

WAN connection

Feature: Ethernet WAN
Feature: SFP WAN

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
Throughput: 2.2 Gbit/s
Feature: Static route
Feature: Port forwarding

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Power over Ethernet (PoE) ports quantity: 2
SFP module slots quantity: 2
USB ports quantity: 1
USB version: 2.0
Feature: DC-in jack

Protocols

Supported network protocols: IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab

Security

Security algorithms: IPSec
Feature: URL filtering
Feature: IP address filtering
Feature: Network address translation (NAT)
VPN tunnels quantity: 50
NAT functionality: 30K NAT sessions

Packaging content

Feature: AC adapter included
Cables included: LAN (RJ-45)
Feature: Quick installation guide

Features

Feature: Built-in processor
Processor frequency: 1000 MHz
Flash memory: 256 MB
Internal memory: 256 MB
Certification: FCC, CE, RCM, IC, UKCA

Design

Product colour: Black
Feature: Wall mountable
LED indicators: Yes

Power

Power consumption (typical): 24 W
Power source type: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 24 V
Output current: 1 A
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 210 mm
Depth: 130 mm
Height: 35 mm
Weight: 505 g

Packaging data

Package width: 246 mm
Package depth: 235 mm
Package height: 54 mm
Package weight: 730 g
