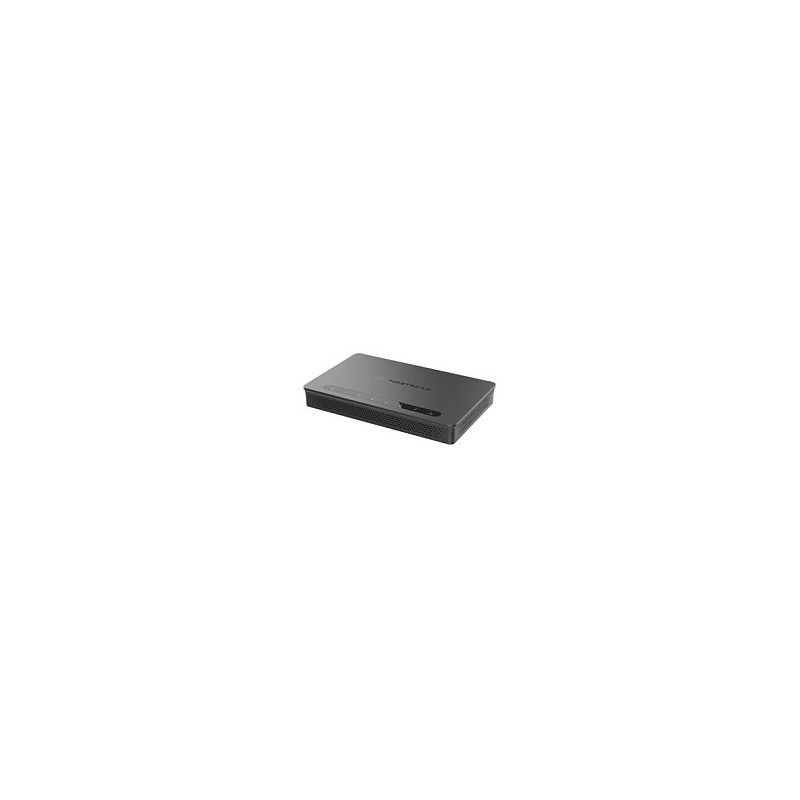

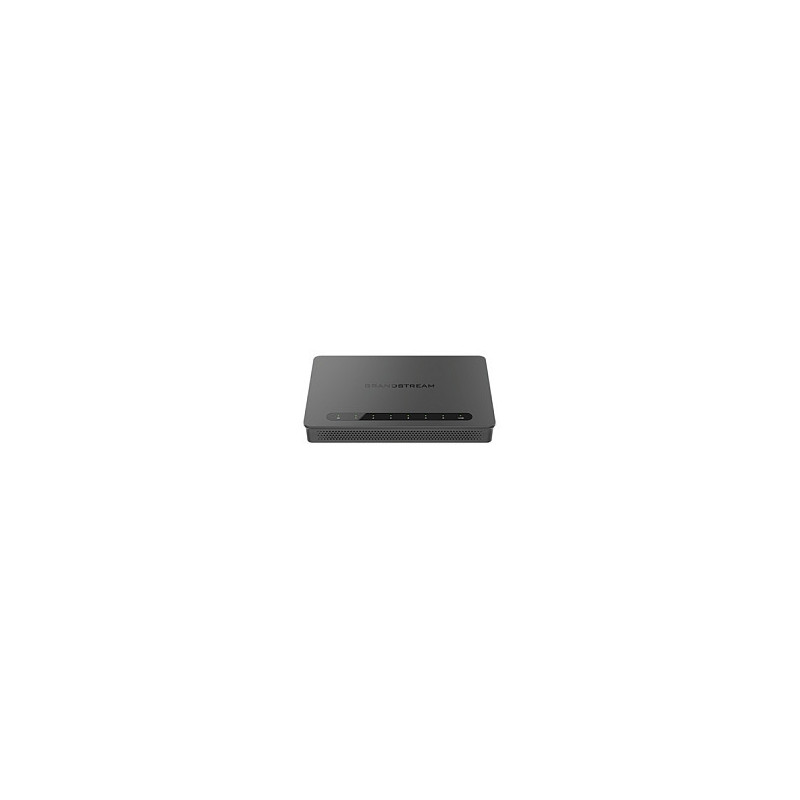

„Grandstream Networks GWN7001“ laidinis maršrutizatorius

Grandstream Networks GWN7001. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE..., Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA2, WPA2-PSK, WPA3. Flash memory: 256 MB, Internal memory: 256 MB, Certification: FCC, CE, RCM, IC, UKCA. Product colour: Black. Power consumption (typical): 20 W, Power source type: AC, AC input voltage: 100 -240 V

WAN connection

Feature: Ethernet WAN
Feature: SFP WAN

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Gigabit Ethernet
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Static route
Feature: Port forwarding

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Universal Plug and Play (UPnP)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 6
USB ports quantity: 1
USB version: 2.0

Protocols

Feature: DMZ support
Feature: DHCP client
Feature: DHCP server

Security

Security algorithms: WPA, WPA2, WPA2-PSK, WPA3
Feature: Firewall
Feature: Network address translation (NAT)

Features

Flash memory: 256 MB
Internal memory: 256 MB
Certification: FCC, CE, RCM, IC, UKCA

Design

Product colour: Black
Feature: Wall mountable

Power

Power consumption (typical): 20 W
Power source type: AC
AC input voltage: 100 -240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 130 mm
Depth: 210 mm
Height: 35 mm
Weight: 453 g

Packaging data

Package width: 130 mm
Package depth: 210 mm
Package height: 35 mm
Package weight: 453 g
