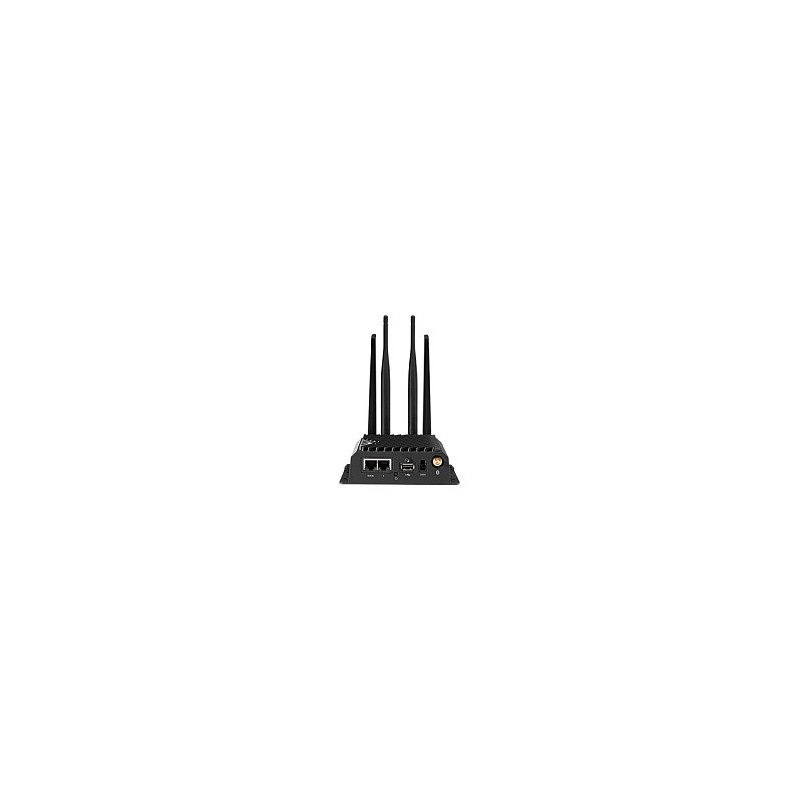

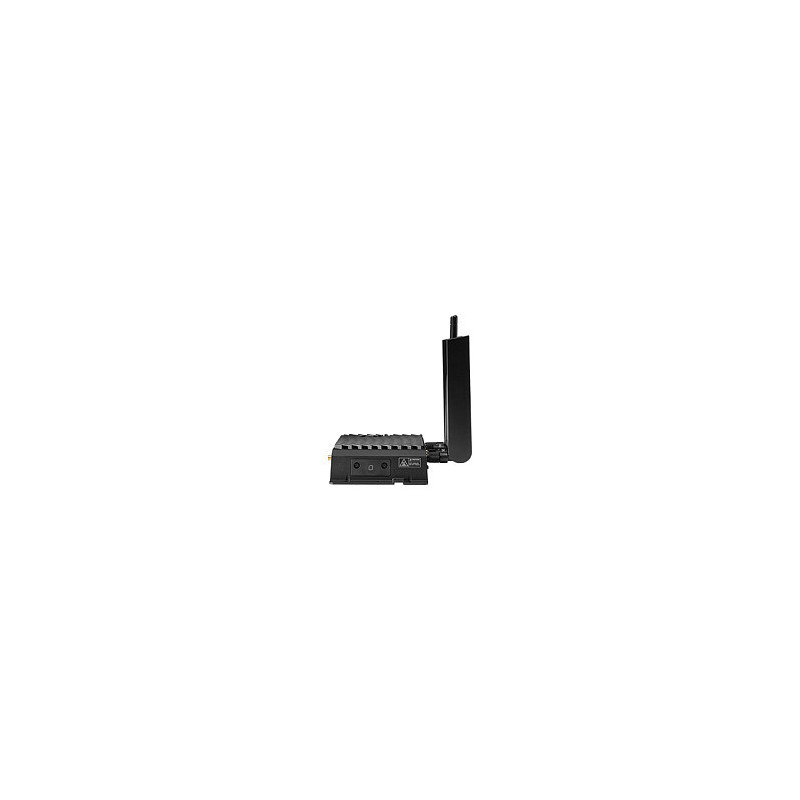

„Cradlepoint R920“ belaidis maršrutizatorius

Cradlepoint R920. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11k, IEEE 802.11v. Mobile network generation: 4G, 4G standard: LTE. Security algorithms: FIPS 140-3, WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise

Built for vehicle and IoT deployments
The R920 Series is a versatile LTE router with a wide span of use cases. It meets the needs of flexible connectivity and standardization by providing mass transit, public safety, and other organizations with support for a 5G modular modem, edge computing, Bluetooth, and CBRS for private networking.

WAN connection

Feature: Ethernet WAN
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 1200 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11k, IEEE 802.11v
VPN tunnels quantity: 20

Mobile network

Mobile network generation: 4G
4G standard: LTE
4G LTE category: 7

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: USB port
USB 2.0 ports quantity: 1

Management features

Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: FIPS 140-3, WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise

Design

Product colour: Black
International Protection (IP) code: IP64

Certificates

Compliance certificates: RoHS, WEEE

Sustainability

Feature: Sustainability compliance

Antenna

Antenna design: External

Features

Feature: Built-in processor
Processor cores: 4
Internal memory: 921 MB
Flash memory: 8192 MB
Mean time between failures (MTBF): 388022 h

Power

Power source type: DC
Output voltage: 9 - 36 V
Power consumption (typical): 14.5 W

Operational conditions

Operating temperature (T-T): -30 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 133.6 mm
Depth: 121.5 mm
Height: 41 mm
Weight: 595 g
