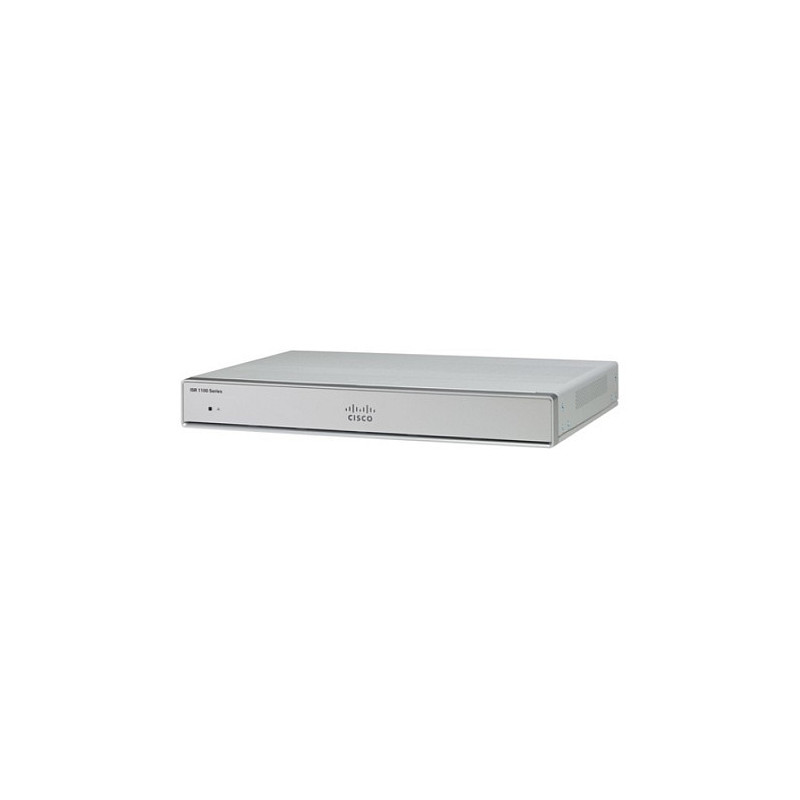

Cisco C1121-8P wired router

Cisco C1121-8P. Networking standards: IEEE 802.11i, IEEE 802.11r, IEEE 802.1x, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). USB version: 3.2 Gen 1 (3.1 Gen 1). Security algorithms: 3DES, AES, DES. Flash memory: 8192 MB, Internal memory: 8192 MB, Internal memory type: DRAM. Product colour: Silver

Cisco® 1000 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.

The Cisco 1000 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.

Note: Not all 1000 series SKU variants are available in every region with different technologies (check on CCW pricelist for your region).

WAN connection

Feature: Ethernet WAN
Feature: 3G/4G USB modem compatibility

Network

Networking standards: IEEE 802.11i, IEEE 802.11r, IEEE 802.1x
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button

Ports & interfaces

Ethernet LAN (RJ-45) ports: 9
Gigabit Ethernet (copper) ports quantity: 9
Power over Ethernet (PoE) ports quantity: 4
Combo SFP ports quantity: 1
USB ports quantity: 2
USB version: 3.2 Gen 1 (3.1 Gen 1)

Security

Security algorithms: 3DES, AES, DES
Feature: Firewall

Packaging content

Feature: AC adapter included

Features

Flash memory: 8192 MB
Internal memory: 8192 MB
Internal memory type: DRAM

Design

Product colour: Silver

Power

Power consumption (typical): 66 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 12 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m

Weight & dimensions

Width: 322 mm
Depth: 226 mm
Height: 41.9 mm
Weight: 1.56 kg

Logistics data

Harmonized System (HS) code: 85176990
