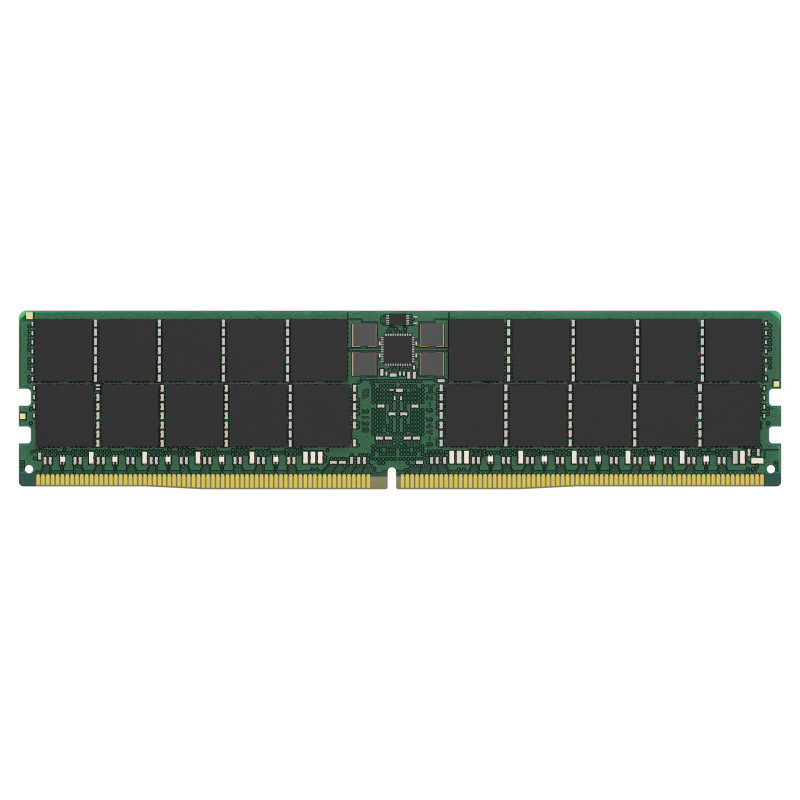

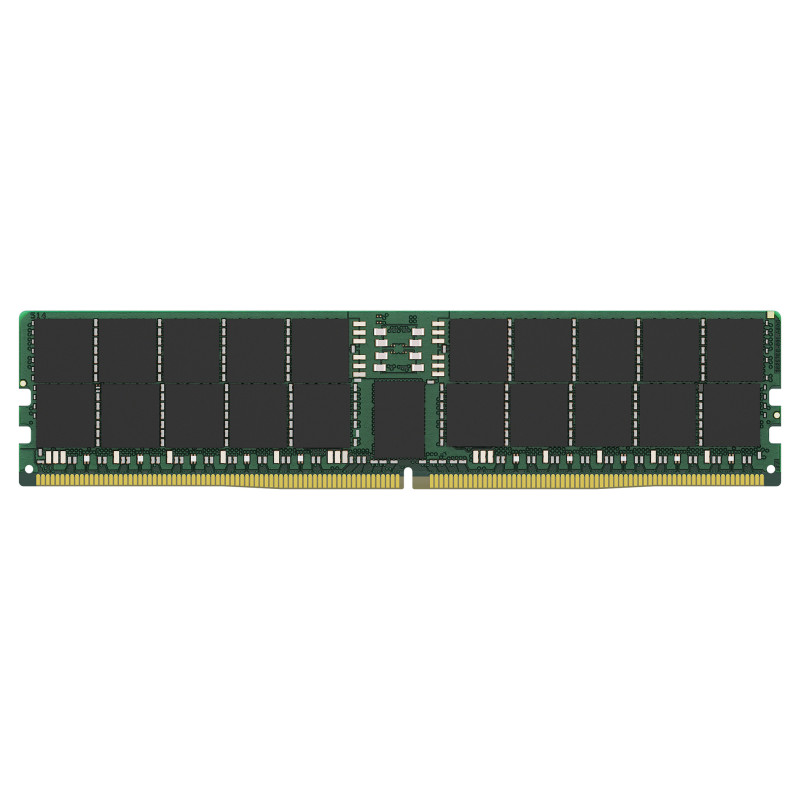

„Kingston Technology“ KSM56R46BD4PMI-96HMI atminties modulis

Kingston Technology 96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 24Gbit. Component for: PC/Server, Internal memory: 96 GB, Memory layout (modules x size): 1 x 96 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC

Features

Buffered memory type: Registered (buffered)
Feature: On-Die ECC
CAS latency: 46
Internal memory: 96 GB
Memory layout (modules x size): 1 x 96 GB
Internal memory type: DDR5
Memory data transfer rate: 5600 MT/s
Component for: PC/Server
Memory form factor: 288-pin DIMM
Feature: ECC
Memory ranking: 2
Memory voltage: 1.1 V
Module configuration: 12288M x 80
Row cycle time: 48 ns
Refresh row cycle time: 295 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
Feature: SPD profile
Programming power voltage (VPP): 1.8 V
Cooling type: Heatsink
Lead plating: Gold
Feature: JEDEC standard

Operational conditions

Operating temperature (T-T): 0 - 95 °C
Storage temperature (T-T): -55 - 100 °C

Technical details

Compliance certificates: RoHS

Sustainability

Feature: Sustainability compliance
Doesn't contain: Halogen

Weight & dimensions

Width: 133.3 mm
Height: 31.2 mm
