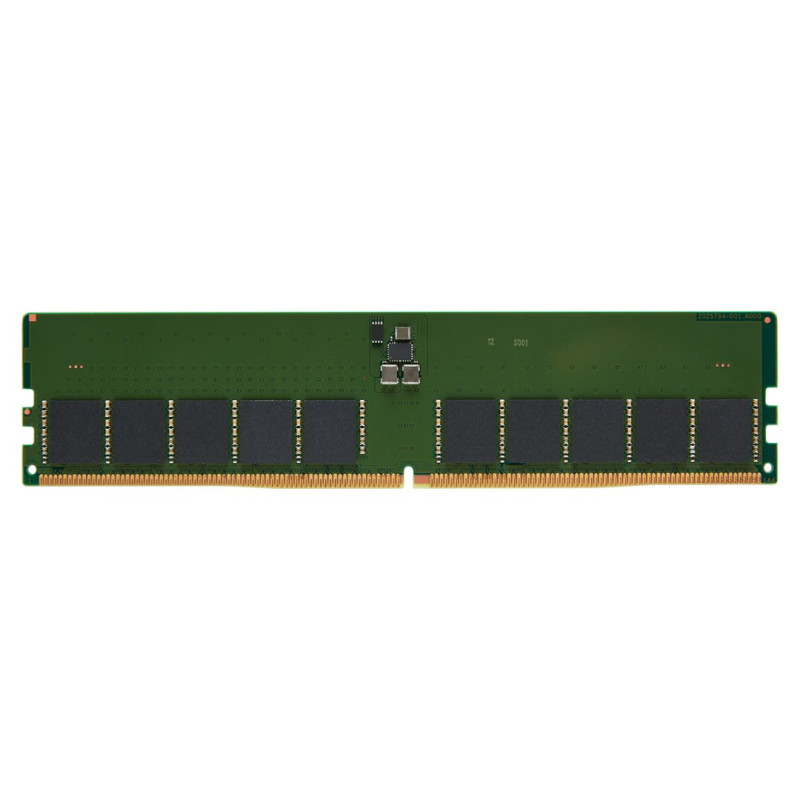

Kingston KSM56E46BD8KM-32HA
is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
| Summary: | Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green |
| Vendor Homepage: | https://www.kingston.com/en |
| Category Code: | MES |
| CnCode: | 84733020 |
| Unit Box Height: | 0.007 |
| Unit Box Length: | 0.045 |
| Unit Box Width: | 0.145 |
| Buffered memory type: | Unregistered (unbuffered) |
| CAS latency: | 46 |
| Component for: | Server |
| ECC: | Yes |
| Internal memory: | 32GB |
| Internal memory type: | DDR5 |
| JEDEC standard: | Yes |
| Lead plating: | Gold |
| Memory data transfer rate: | 5600MT/s |
| Memory form factor: | 288-pin DIMM |
| Memory layout (modules x size): | 1 x 32GB |
| Memory ranking: | 2 |
| Memory voltage: | 1.1V |
| Module configuration: | 4096M x 72 |
| On-Die ECC: | Yes |
| Product colour: | Black/Green |
| Programming power voltage (VPP): | 1.8V |
| Refresh row cycle time: | 295ns |
| Row active time: | 32ns |
| Row cycle time: | 48ns |
| Row Precharge Time (TRP): | 16 |
| SPD profile: | Yes |
| Operating temperature (T-T): | 0 - 95°C |
| Storage temperature (T-T): | -55 - 100°C |
| Compliance certificates: | RoHS |
| Doesn't contain: | Halogen |
| Sustainability compliance: | Yes |
| Height: | 31.25mm |
| Width: | 133.35mm |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 4.567E-05m³ |
| Unit Calculated Weight: | 0.029kg |
