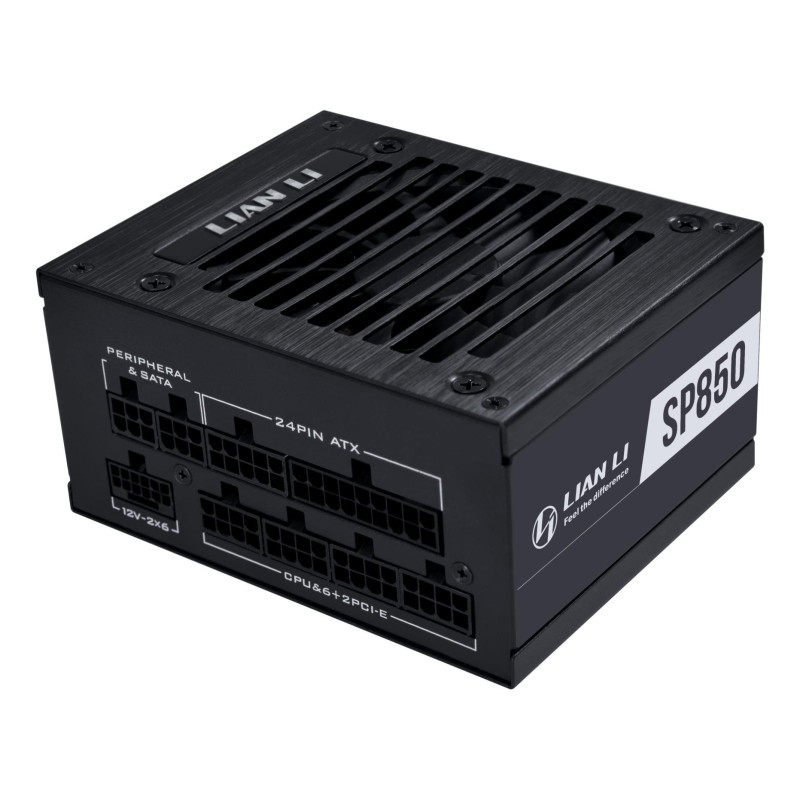

Блок живлення SFX Lian Li 80 PLUS Gold 850W Black (G9P.SP0850G.B000.EU)
PERFORMANCE SFX FORM FACTOR POWER SUPPLY
The SP V2 Gold is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
AVAILABLE IN TWO COLORS & TWO WATTAGES
Choose the fully modular SFX PSU in black or white, with 850W or 750W options to perfectly match your build.
COMPACT SIZE, BIG PERFORMANCE
Measuring 125 × 100 × 63.5 mm, this compact PSU saves valuable space inside the builds without compromising on power delivery.
80 PLUS GOLD CERTIFICATE
With 80 PLUS Gold certification, the SP V2 Gold delivers over 90% efficiency at 50% system load under 115V AC input conditions, ensuring high energy efficiency with stable power delivery and minimal energy loss.
ATX 3.1 READY WITH 12V-2×6 CONNECTOR
The SP V2 Gold features a next-gen 12V-2×6 power connector compliant with the latest ATX 3.1 specification, providing direct support for PCIe 5.0 graphics cards and addressing the growing power demands of modern systems.
LIAN LI CUSTOM 12V-2×6 POWER CABLE
LIAN LI's in-house developed 12V-2×6 power cable features a custom-molded design combined with alloy copper soldered terminals to deliver superior stability and efficient power delivery. Built to meet the demanding needs of high-end graphics cards, this cable ensures safer, more durable connections for your cutting-edge system.
Each cable is engineered for ease of use, with dual-color connector housings for intuitive installation, reinforced soldering for improved reliability, and a 20.5mm connector width optimized to prevent interference during GPU mounting.

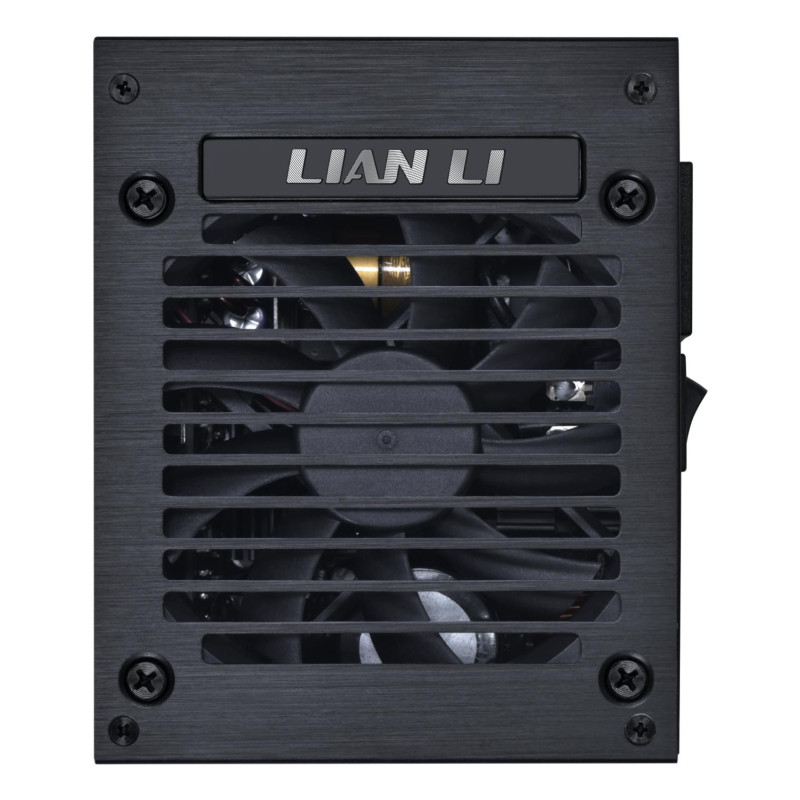

FDB FAN FOR QUIET COOLING
The SP V2 Gold utilizes a 92mm FDB fan to deliver efficient cooling with low noise. Even under sustained high workloads, it maintains stable performance while ensuring silent operation.
JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.

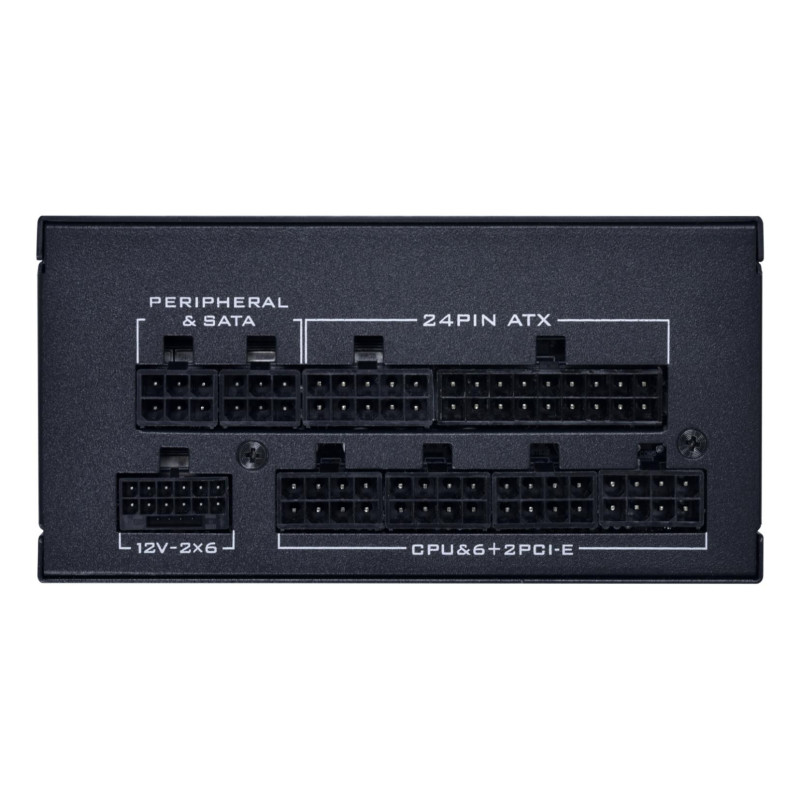

REFINED DESIGN WITH FULLY MODULAR CABLES
The SP V2 Gold features a fully modular cable system with all necessary braided cables included out of the box, reducing clutter and enhancing visual appeal.
ENHANCED DURABILITY WITH EMBOSSED CABLE DESIGN
The embossed cable design enhances both durability and flexibility, ensuring long-lasting performance even under frequent use. Its unique textured surface helps reduce tangling and knotting, delivering a smoother installation experience and cleaner cable management.
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.
| AC įėjimo dažnis | 50/60 Hz |
| AC įėjimo įtampa | 100 - 240 V |
| ATX versija | 3.1 |
| Aukštis | 63.5 mm |
| Aušinimo padengimo tipas | FDB |
| Bendroji galia | 850 W |
| Bruto svoris | 1.87 kg |
| CPU maitinimo laido ilgis | 600 mm |
| Darbo temperatūros diapazonas (TT) | 0 - 40 °C |
| Didžiausia išėjimo įtampa (+12 V) | 70 A |
| Didžiausia išėjimo įtampa (+12 VSB) | 3 A |
| Didžiausia išėjimo įtampa (+3,3 V) | 20 A |
| Didžiausia išėjimo įtampa (+5 V) | 20 A |
| Didžiausia išėjimo įtampa (-12 V) | 0.3 A |
| Efektyvumas | 90 % |
| EPS maitinimo jungtis (8-kaisčiai) | Taip |
| Galios koeficiento pataisos (PFC) tipas | Aktyvus |
| Garso lygis | 40 dB |
| Ilgis | 100 mm |
| Kompleksinė galia (+12 V) | 840 W |
| Kompleksinė galia (+3,3 V) | 100 W |
| Kompleksinė galia (+5 VSB) | 15 W |
| Kompleksinė galia (+5V) | 100 W |
| Kompleksinė galia (-12 V) | 3.6 W |
| Maitinimo apsaugos ypatybės | Apsauga nuo per didelės įtampos/Darbas be apkrovos/Minimaliosios įtampos apsauga/Per žema temperatūra/Surge & inrush protection (SIP)/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę |
| Maitinimo bloko (PSU) formos koeficientas | SFX |
| Model name | SP0850 |
| Motininės plokštės maitinimo jungtis | 20+4 pin ATX |
| Motininės plokštės maitinimo kabelio ilgis | 350 mm |
| Neto svoris | 1.7 kg |
| Paskirtis | PC |
| PCI Express maitinimo jungtis (8 kaisčiai) | 1 |
| PCI "Express" galia kabelio ilgis | 400 mm |
| PCI "Express" jungtis | Taip |
| PCI "Express" maitinimo jungtys (6 + 2 kontaktai) | 2 |
| Perdavimo laidu tipas | Visiškai modulinis |
| Periferinio ("Molex") maitinimo kabelio ilgis | 350 mm |
| Periferinė (Molex) galios jungtis (4-pin) | 1 |
| Plotis | 125 mm |
| Produkto spalva | Juoda |
| SATA elektros jungčių skaičius | 7 |
| SATA maitinimo kabelio ilgis | 350 mm |
| SATA maitinimo kabelių skaičius | 1 |
| Sertifikatas 80 PLUS | 80 PLUS Gold |
| Shipping Box Depth | 58 cm |
| Shipping Box Height | 27 cm |
| Shipping Box Weight | 18.7 kg |
| Shipping Box Width | 39.5 cm |
| Summary | Lian Li SP V2 Gold. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 350 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 9.2 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 100 mm, Height: 63.5 mm |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.11 |
| Unit Brutto Volume | 0.006186 cubm |
| Vendor Homepage | https://lian-li.com/product/sp-v2/ |
| Ventiliatoriaus greitis | 0 - 3000 RPM |
| Ventiliatoriaus skersmuo | 92 mm |
| Ventiliatorių skaičius | 1 ventiliatorius(iai / ių) |
| Vieneto aukštis | 19 cm |
| Vieneto gylis | 25 cm |
| Vieneto plotis | 11 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 10 |
| Įvesties srovė | 5 - 10 A |
